5

Fiber optic module replacement

To replace the Brocade fan tray, follow these steps.
1. Power down and unplug the chassis.
2. Unscrew the two screws that secure the fan tray to the chassis.

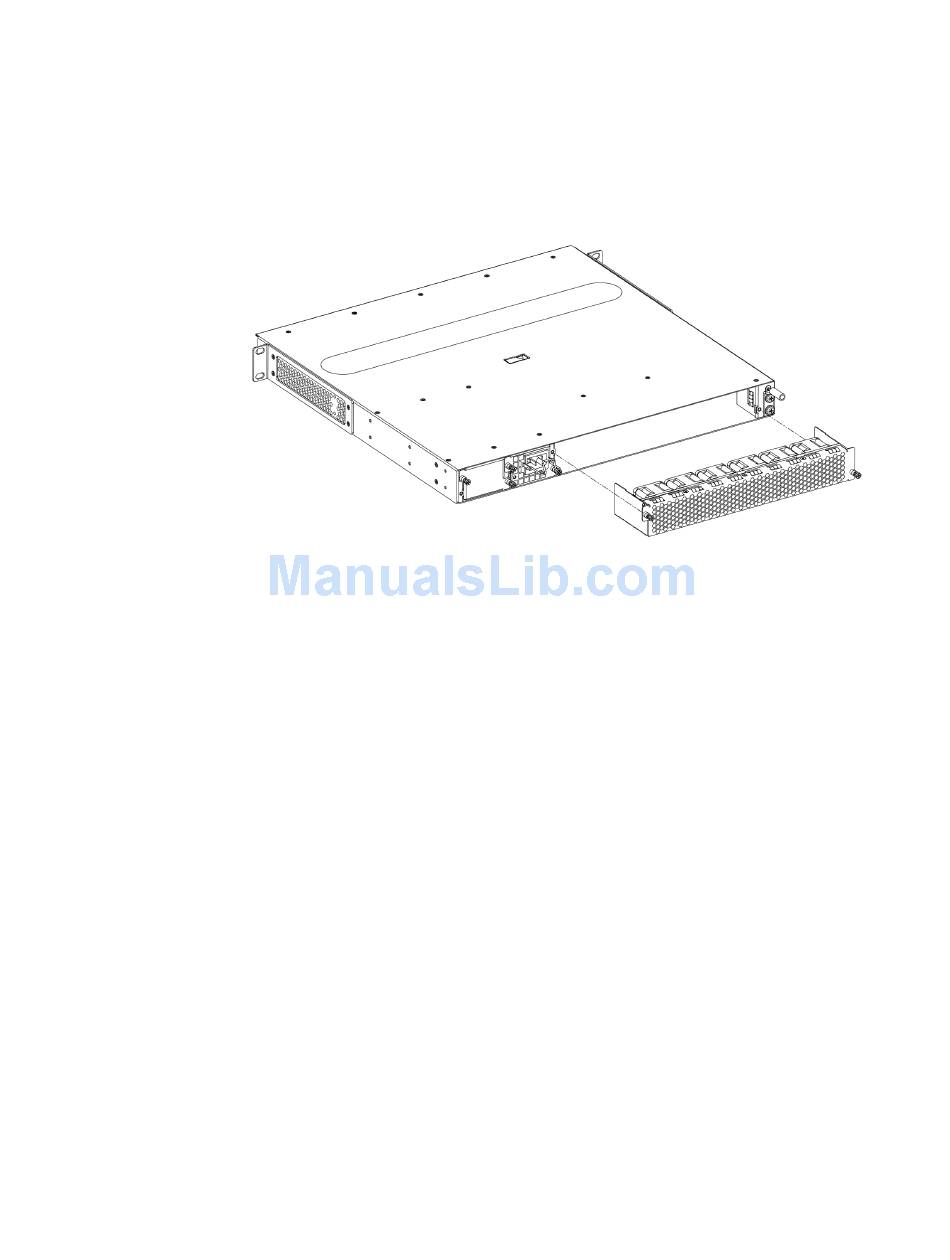

FIGURE 46
3. Slide the fan tray out
4. Slide the new fan tray in and tighten the screws to secure it to the chassis.
5. Plug the chassis back in and power up.
Fiber optic module replacement
You can remove an SFP, SFP+, or XFP from a port and replace it with a new one while the Brocade
device is powered on and running.
This section provides information about the following tasks:
•
•
•

Removing a fiber optic module

You can remove a fiber SFP (also called a mini-GBIC), SFP+, or an XFP from a port while the
Brocade device is powered on and running.
Before removing a fiber optic module, have the following on hand:
•
70
Replacing the fan tray
Removing a fiber optic module
Installing a new fiber optic module
Cabling a fiber optic module
An ESD wrist strap with a plug for connection to the ESD connector on the Stackable device.
