TECDIS Installation Manual
Page 13

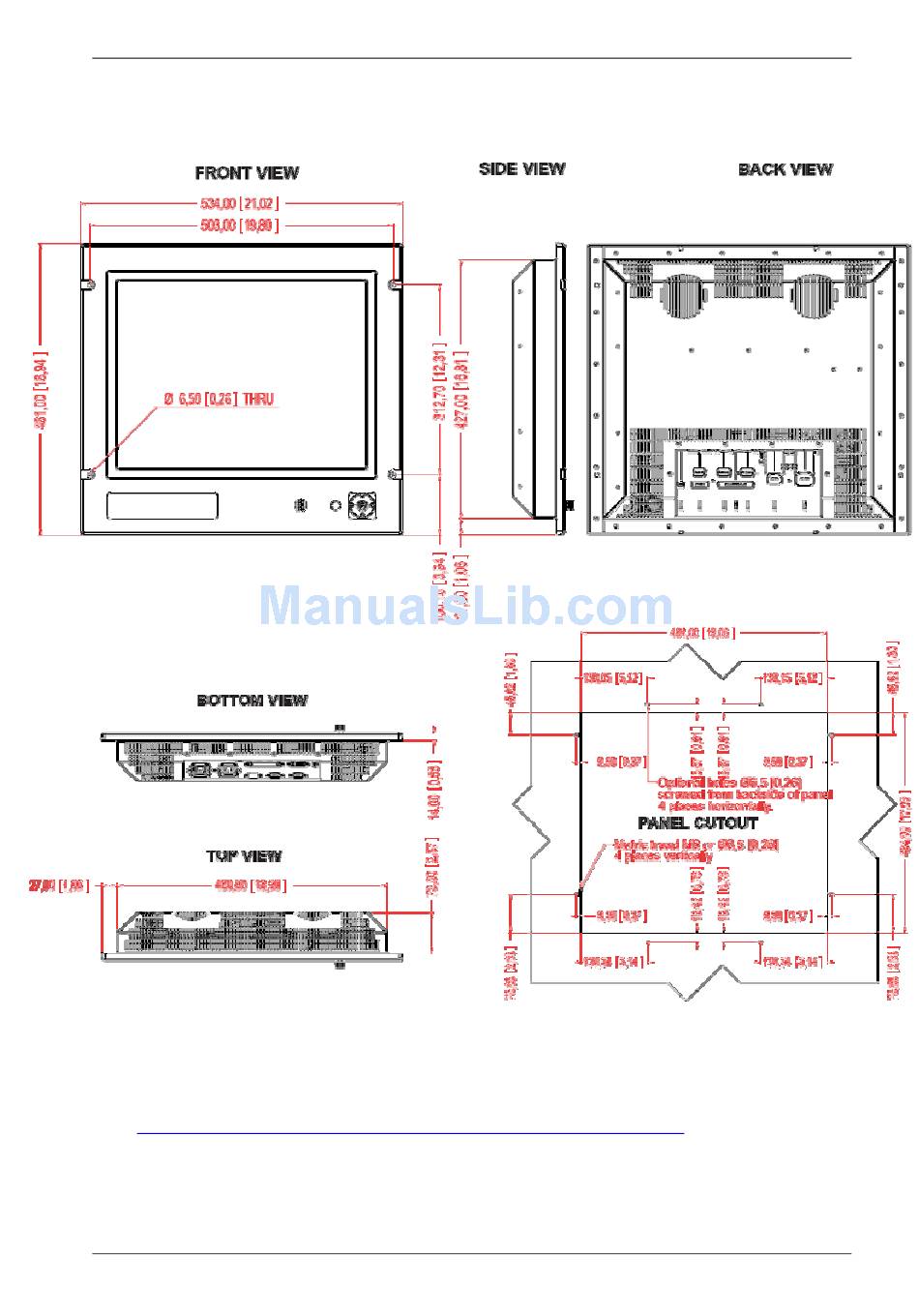

Outline dimensions for JH 20T17 MMD:
Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance
on drawings is +/- 1mm. For accurate measurements, check relevant DWG file, as obtainable
from http://www.hatteland-display.com/maritime_line_displays_series1.php.
