- Page 2 Index 1. System overview Q1.SYS What models are in the TZTXL product range? Q2.SYS How many TZTXL and/or TZT2BB/TZtouch3 MFDs are allowed in one network? Q3.SYS Does one TZTXL or TZtouch3/TZT2BB MFD need to be set as a Master? Q4.SYS Which charts are pre-loaded on the 512GB microSD-Card in TZTXL MFDs? Q5.SYS...
- Page 3 Q3.COMP Are NavNet 3D or TZtouch compatible with TZTXL MFDs? Q4.COMP Can Furuno commercial Radars be connected to TZTXL MFDs? Q5.COMP Can I control a SiriusXM Satellite Radio using a TZTXL MFD? Q6.COMP Are TZTXL MFDs compatible with MaxSea TZ software? Q7.COMP...
-
Page 4: Installation
Q5.FF Is it possible to connect a Side-Scan transducer and a conventional down view transducer at the same time to the internal Fish Finder of a TZT10, 13, or 16X? Q6.FF What TZTXL Side-Scan frequencies are available? 6. Cameras, Video Inputs/Outputs and External Monitors Q1.CAM Can FLIR M-Series Cameras be controlled from TZTXL MFDs? Q2.CAM... - Page 5 Q3.TZ MAPS What new advantages do TZ MAPS have over MM3 charts? Q4.TZ MAPS How can I purchase TZ MAPS or MM3 charts for my TZTXL MFD/s. Q5.TZ MAP What are the steps to purchase and unlock TZ MAPS directly from the MFD? Q6.TZ MAPS Can I mix TZTXL and TZtouch3/TZT2BB systems and unlock...
-

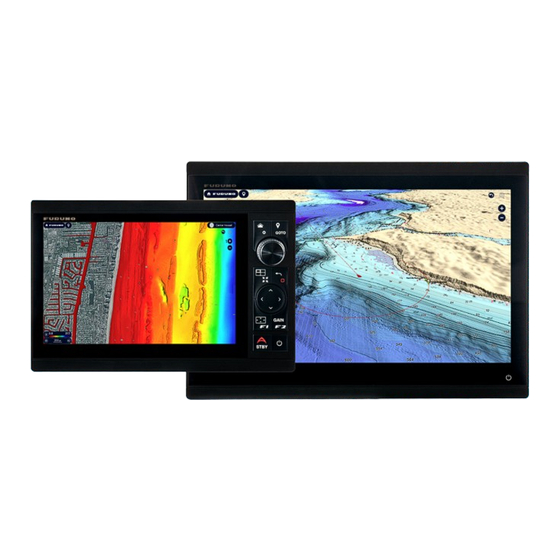

Page 6: System Overview
Locked TZ MAPS chart areas can be purchased and unlocked directly from the MFD by connecting the TZtouchXL MFD to the Internet. A TZ MAPS chart can also be purchased just like an MM3DD chart through Furuno National Distributors and/or their authorized dealer network. - Page 7 Q5.SYS What rear connections do the TZtouchXL MFDs have?
- Page 8 Q6.SYS What input/outputs are available on the multi-cable port? The optional multi-cable has connections for an optional power switch, NMEA0183 output, external buzzer, event switch in, Key Pulse In/out, and an analog video input. There are 12 color coded wires plus a single video coax RCA connector. The multi-cable is optional.
- Page 9 What are the maximum number of split screens per display page? Q.9.SYS Six. You can have a combination of up to six (6) screens on a single display page. Ten (10) different screen combinations are available. 2. Connections Q1.CONN Can Engine, Tank, and Fuel data be displayed on TZtouchXL MFDs? Yes.
- Page 10 Q2.CONN Is a special Ethernet Hub required for use with TZtouchXL networks? We recommend either the Furuno HUB101* or the new waterproof HUB102. Also, most commercially available 100Mbps or Gigabit Ethernet Hub/Switches are compatible. See section 8 for optional available waterproof TZtouchXL and HUB102 cables.
- Page 11 North America for additional information concerning compatible MaxSea/TZ (TIMEZERO) software versions. Just like TZtouch2/3, TZtouchXL MFDs are part of the Furuno/TZ Pro/TZ iBoat ecosystem. This ecosystem allows various types of user data, such as routes, waypoints, pictures, catches, etc., to be shared among the different platforms.
- Page 12 Q10.COMP Can additional USB devices be connected using a generic USB Hub? Yes. TZtouchXL MFDs have a powered 5V USB port that can supply up to 0.9 Amps to any generic USB Hub. This will allow you to connect additional USB devices, such as the MCU002, MCU004, and TEU001 USB Remotes, USB Memory Stick, Mouse, keyboard, etc.
- Page 13 You can access and control any compatible networked black box Fish Finder or the internal Fish Finder of any TZtouch3 MFD, TZtouchXL 10X, 13X, 16X, or TZT2BB from the TZtouchXL MFD. The following Furuno black box fish finders are compatible, BBDS1, DFF1, DFF1-UHD, DFF3, and the DFF3-UHD.
- Page 14 Q5.FF Is it possible to connect a Side-Scan transducer and a conventional down view transducer at the same time to the internal Fish Finder of a TZT10, 13, or 16X? Yes. Possible combinations with the new TZtouchXL 3-channel Fish Finder are shown below.
- Page 15 Q6.FF What TZtouchXL Side-Scan frequencies are available? 230Khz or 455khz. Transducer dependent. Available Side-Scan transducers are Transom, Thru- hull and paired versions of both 230 or 455khz. 230Khz Chirp Side Scan Transducer part numbers 225T-PR904 Paired Thru-Hull CHIRP Side-Scan for NavNet TZtouch3 and TZtouchXL 225T-TM904 Transom Mount CHIRP Side-Scan for NavNet TZtouch3 and TZtouchXL 225T-SS904...
- Page 16 SXGA (1280x1024) • XGA (1024x768) • * Analog video input requires the optional multi-cable part # 001-647-020-00 7. NavNet Command Center, Apps, and Furuno/TZ ecosystem Q1.MISC What Third party HTML5 Command Center Applications are available for TZtouchXL MFDs? Click here for Information concerning NavNet Command Center 3 party applications.
- Page 17 8. Installation Q1.INST Can I mount two TZtouchXL MFDs side by side? TZtouchXL MFDs mount easily using a front mounting system. Two MFDs can fit side by side without a gap between the MFDs. Q2.INST What display mounting options are available for TZtouchXL MFDs? TZtouchXL MFDs are mounted from the front and are supplied with standard flush mounting accessories for all models.
- Page 18 BathyVision: high resolution depth contour lines dynamically generated from bathymetric data. Community edits: Chart improvements made and shared by Furuno TZtouchXL, TimeZero Pro, TZ Navigator and TZ iBoat users. Ability to purchase and update TZ MAPS directly from the MFD.
- Page 19 Enter your credit card information to complete your purchase. Q6.TZ MAP Can I mix TZtouchXL and TZtouch3/TZT2BB systems and unlock codes? While it is possible to mix TZtouchXL and TZtouch3/TZT2BB MFDs in the same network, it is not possible to mix System IDs and chart unlock codes. Please see separate TZ MAPS FAQ for additional information on what is and is not possible and for additional information on TZ MAPS.
