Page 2: Important Notices
How to discard a used battery Some FURUNO products have a battery(ies). To see if your product has a battery, see the chapter on Maintenance. Follow the instructions below if a battery is used. Tape the + and - terminals of battery before disposal to prevent fire, heat generation caused by short circuit.
Page 3 SAFETY INSTRUCTIONS Read these safety instructions before you operate the equipment. Indicates a condition that can cause death or serious injury WARNING if not avoided. Indicates a condition that can cause minor or moderate CAUTION injury if not avoided. Warning, Caution Prohibitive Action Mandatory Action WARNING...
Page 4 SAFETY INSTRUCTIONS WARNING WARNING Keep units other than the radar Do not depend on one navigation antenna away from the rain and device for the navigation of the water. vessel. Fire or electrical shock can occur if Always check your position against all water gets inside the equipment.
Page 5: Table Of Contents
1.12.2 Data cycling....................1-18 1.12.3 How to adjust transparency of the data box..........1-19 1.13 Menu Introduction ....................1-19 1.14 [Display] Menu on the RotoKey Menu (TZT9/TZT14 only) ........1-22 1.15 Function Gesture on the Main Menu................ 1-22 1.16 Language ......................... 1-23 1.17 Boat Icon ........................
Page 6 TABLE OF CONTENTS 2.10.3 SST alarm ....................2-12 2.10.4 Speed alarm ....................2-12 2.10.5 Anchor watch alarm..................2-13 2.10.6 Alarm menus ....................2-13 2.10.7 How to stop the alarm sound................2-14 2.11 Track.........................2-14 2.11.1 How to show or hide the track display ............2-15 2.11.2 Track interval ....................2-15 2.11.3 Track color....................2-15 2.11.4 Track thickness ....................2-18 2.11.5 How to delete tracks..................2-18...
Page 7 TABLE OF CONTENTS 4.10.4 How to display the point information for the active route ......4-14 4.11 How to Restart and Cancel Navigation to a Point ............ 4-14 4.11.1 How to restart navigation to a point.............. 4-14 4.11.2 How to cancel navigation to a point ............. 4-14 ROUTES.........................5-1 5.1 What is a Route?......................
Page 8 TABLE OF CONTENTS 6.7.6 How to measure the bearing with the EBL .............6-9 6.7.7 How to select the EBL reference..............6-9 6.8 How to Measure the Range and Bearing Between Two Targets ......6-10 6.9 How to Off-center the Picture ...................6-10 6.10 Heading Line ......................6-10 6.11 How to Reduce Radar Interference ................6-11 6.12 Guard Zone ......................6-11 6.12.1 How to set the guard zone ................6-11...
Page 9 TABLE OF CONTENTS 7.4.4 How to adjust the gain..................7-8 7.4.5 How to reduce the clutter ................7-8 7.5 Picture Advance Speed....................7-9 7.6 How to Reduce Interference ..................7-9 7.7 How to Measure Range, Depth or Time to an Object ..........7-10 7.8 How to Balance Echo Strength ................
Page 10 TABLE OF CONTENTS 11. WEATHER ......................11-1 11.1 Weather Display Introduction ...................11-1 11.2 NavCenter Weather....................11-2 11.2.1 Pre-settings ....................11-2 11.2.2 How to download the NavCenter data............11-3 11.2.3 How to display the NavCenter data..............11-4 11.2.4 How to load a weather file ................11-5 11.3 Sirius Weather ......................11-6 11.3.1 Pre-settings ....................11-6 11.3.2 How to display the Sirius data ..............11-7 11.4 Weather Icons (Sirius Weather) ................11-8...
Page 11: Foreword

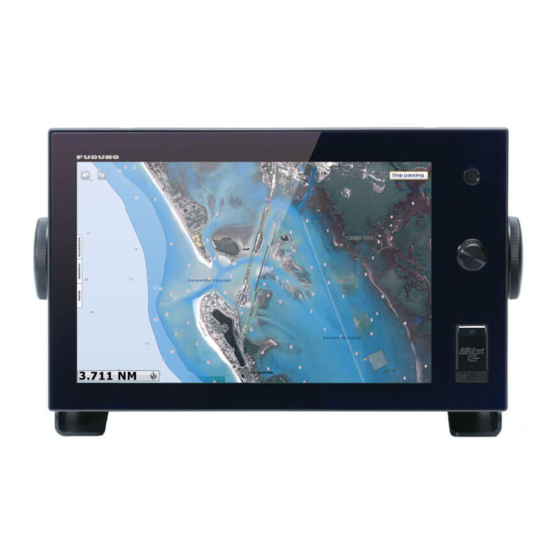

A Word to the Owner of the TZT9, TZT14 and TZTBB Congratulations on your choice of the TZT9, TZT14 and TZTBB Multi Function Display, an integral part of our new NavNet TZtouch series of multi-function displays. We are confident you will see why the FURUNO name has become synonymous with quality and reliability.
Page 12 FOREWORD Radar sensor (option) • The radar antennas are in radome or open-array type. • The radar echoes appear in green, yellow or multi-colors. • Automatic control of sea clutter, tuning and gain for easier operation. • Guard zone checks for targets within the area you indicate. •...
Page 13: System Configuration
Note: When you connect an external monitor to the TZT unit, use a monitor whose aspect ratio is the same as the TZT unit (5:3 for TZT9, 16:10 for TZT14). The pictures may be stretched or shrunk with a different aspect ratio.
Page 14 SYSTEM CONFIGURATION TZTBB RADAR SENSOR RADAR SENSOR DRS2D/DRS4D DRS4A/DRS6A/DRS12A/DRS25A POWER SUPPLY UNIT* PSU-017 POWER SUPPLY UNIT* PSU-012/PSU-013 12-24 VDC FAR-2xx7 series 12-24 VDC FCV-1150, BBDS1, DFF series NAVpilot-700 FA-30/50 HUB -101 SC-30 FAX-30 FI-5002 IP Camera GP-330/WS-200 FUSION-Link equipment FI-50, etc. Network equipment IF-NMEA2K1/2 Touch Monitor...
Page 15 SYSTEM CONFIGURATION This page is intentionally left blank.
Page 16: System Introduction
RotoKey menu.” • The colors mentioned for track, route, point, etc. are the default colors. • This manual states the operation for the home and Rotokey functions based on TZT9/ TZT14. • Most of the screenshots in this manual are for TZT9/TZT14.
Page 17: Controls
1. SYSTEM INTRODUCTION Controls The TZT9/TZT14/TZTBB are operated by key(s) and touch control. You operate the chart plotter, radar, fish finder, etc. with • Key(s) • Touch control • Menus, where you select options • Pop-up menus, where you select options •...
Page 18 TZTBB Label Function • Turns the power on. • Adjust the brilliance of the display (TZT9/14). • Adjusts the brilliance of the power indicator and the backlighting for the key (TZTBB) . • Turns the power off. (Device or Network) Card drive Card drive for memory cards.
Page 19 1. SYSTEM INTRODUCTION Operation with two fingers Operation with two fingers Function Pinch • Zoom in or out the chart scale in the 2D/ 3D modes or weather display. • Select radar range on the radar display. Zoom in Zoom out Drag Switch from 2D to 3D.
Page 20 1. SYSTEM INTRODUCTION For TZT9/TZT14, when both Rotokey and touch control are available for the same function, this manual states the operation by touch control. Notes for touch control • A large amount of waterdrops on the screen can cause misoperation and slow touch response.
Page 21: Remote Control Unit Mcu-002 (Option)
You can operate the equipment by the Remote Control Unit MCU-002, without touch- ing the screen. Function STBY•AUTO Switches the steering mode of the FURUNO NAVpilot-700 series Autopilot between the STBY and AUTO modes*. CENTER key • Returns your ship to the center of the screen (Plotter/Weather/Radar display).
Page 22: Power On And Off
When you turn on the power, a beep sounds and the start-up screen appears. Approximately 90 seconds after you ap- ply the power, the chart plotter display appears. TZT9/TZT14: TZTBB: Press here. Press here. To turn the power OFF, press the key.
Page 23: How To Adjust The Brilliance Of Display Or Power Indicator
Power Off This Device Network TZT9/TZT14: Drag the circle icon to adjust the display brilliance. The brilliance level is indicated on the icon. You can also adjust the display brilliance with short press of the key repeatedly. TZTBB: Drag the circle icon to adjust the brilliance of the power indicator and the backlighting for the key.
Page 24: Sd Cards
SD card. The SD Memory Card Formatting Software made by Panasonic is an example. How to set an SD card 1) Pull the tab on the card drive cover to open the card TZT9/TZT14 drive. TZTBB 2) As shown in the right figure, put the SD card in the right card drive with the label right.
Page 25 1. SYSTEM INTRODUCTION • The memory cards in the tables below have been tested: Type Capacity Maker LSD64GCBJP133 64 GB Lexer SD-E064GUA 64 GB TOSHIBA SD6A/64GB 64 GB Kingston RP-SDW32G 32 GB Panasonic SD-E032GUX 32 GB TOSHIBA RP-SDM16GK1K 16 GB Panasonic RP-SDM08GK1K 8 GB...
Page 26: Chart Plotter Introduction
1. SYSTEM INTRODUCTION Chart Plotter Introduction The chart plotter provides a small world map in raster format. A vector chart for the US coastline (with Alaska and Hawaii) is provided also. The plotter section has functions to enter points, and create and plan routes. The chart plotter receives position information supplied from the position-fixing equip- ment like GPS or DGPS.
Page 27: Radar Introduction
1. SYSTEM INTRODUCTION Radar Introduction A radar system operates in the microwave part of the radio frequency (RF) range. The radar detects the position and movement of objects. Objects are shown on the radar display at their measured distances and bearings in intensities according to echo strength.
Page 28: Sounder (Fish Finder) Introduction
1. SYSTEM INTRODUCTION Sounder (Fish Finder) Introduction The sounder (fish finder) display provides a picture of the echoes found by the fish finder. Echoes are scrolled across the screen from the right position to the left position. The echoes at the right position are the current echoes. These echoes can be from separate fish, a school of fish, or the bottom.
Page 29: Rotokey Menus
The main function of the RotoKey is to display the RotoKey menu, which is a set of menu items that change with the operating mode. For TZT9/TZT14, push the RotoKey to display the RotoKey menu then ro- tate the RotoKey to select a menu item.
Page 30: Pop-Up Menus
The pop-up menus shown on the screen New Point depend on the RotoKey mode (see section 13.1). The New Route right figure shows the Chart Plotter pop-up menu for TZT9/TZT14. Lat/Lon ◄ Orientation Track Re How to operate a pop-up menu Rotate the RotoKey (or drag the menu items with a finger) to select an item.
Page 31: How To Set The Data Boxes
1. SYSTEM INTRODUCTION Select [DATA 1], [DATA 2] or [RADAR] of the side menu at the left or right of the screen to show a data box set. To hide a data box set, select [×] at the top right-hand corner of the data area.
Page 32 1. SYSTEM INTRODUCTION 2. Select the data to add. The added data appears under the bottommost data box. [Date] is added in the following example. 10:30 AM °M 291.7 10/10/2012 10:30:15 AM You can sort the data boxes by drag and drop. How to delete a data box from a data area Pop-up menu: Select the data box to delete.
Page 33: Data Cycling
1. SYSTEM INTRODUCTION How to switch the indication between analog (graphic) and digital Select the data box for which to switch the indication. The pop-up menu appears. Se- lect [Graphic] to display the analog indication. Deselect [Graphic] to display the digital indication.
Page 34: How To Adjust Transparency Of The Data Box
1. SYSTEM INTRODUCTION 1.12.3 How to adjust transparency of the data box You can adjust the degree of transparency for the data box with the [NavData Trans- parency] slider with [General] of the main menu. The available degree of transparency is 0 - 80(%).
Page 35 1. SYSTEM INTRODUCTION 3. Drag the main menus on the right side of the screen to display a menu desired. The selected menu is indicated with a yellow highlight. The sub menus for the se- lected menu appear. Below is an example screen for the [Radar] menu. Select [Close] to exit menu.
Page 36 1. SYSTEM INTRODUCTION • Numerical value with the software keyboard icon ( ): Select (tap) the menu to open the software keyboard. Set the value then select [Confirm]. Confirm Cancel • Color icon: Select (tap) the menu to open the options. Select (tap) the option desired.
Page 37: Display] Menu On The Rotokey Menu (Tzt9/Tzt14 Only)
1. SYSTEM INTRODUCTION 1.14 [Display] Menu on the RotoKey Menu (TZT9/ TZT14 only) [Display] on the RotoKey menu is common for all displays. [NavData]: Open the data boxes (see section 1.12). [Menu]: Open the main menu (see section 1.13). [Lists]: Open the lists menu (see section 1.13 and section 4.7).
Page 38: Language
1. SYSTEM INTRODUCTION [Event]: Record an event to the logbook. The selected mark is put at the position at the time the screen was tapped to open the [Creating Event] window (see paragraph 4.2.2) Creating Event Cancel [MOB]: Record MOB position to the logbook (see section 1.18). [Home]: Open the display selection window (see section 1.5) and display the menu icon bar (see section 1.13).
Page 39: Boat Icon
1. SYSTEM INTRODUCTION 1.17 Boat Icon The boat icon marks current position. In the 3D display, you can change the shape of the boat icon to match your ship. In the 2D display, the boat icon can not be changed and is red.
Page 40 1. SYSTEM INTRODUCTION 2. Select the [General] - [Function Gesture] menu. Function Gesture Event None Screen Capture Event Home 3. Select [MOB]. 4. Select [Close] to exit the menu. 5. Tap the screen with two fingers on the chart plotter display or the radar display. The area around the boat icon is zoomed in.
Page 41 1. SYSTEM INTRODUCTION How to go to a MOB mark Select a MOB mark to go to then select [Go To] from the pop-up menu. XTE lines Green: Starboard Red: Port How to delete a MOB mark Inactive MOB mark: Select a MOB mark to display the pop-up menu. Select [Delete]. Active MOB mark: Before you erase an active MOB mark, you must cancel the nav- igation.
Page 42: Facsimile Receiver Fax-30
1.19 Facsimile Receiver FAX-30 The FURUNO Facsimile Receiver FAX-30 installs in the TZT network and can be con- trolled from a TZT display. Below are the steps to start fax operation. 1. At the installation of this equipment, connect the FAX-30 to the TZT.
Page 43: Ais Transponder Fa-30, Fa-50
1. SYSTEM INTRODUCTION 1.20 AIS Transponder FA-30, FA-50 The FURUNO AIS Transponder FA-30 (or FA-50) installs in the TZT network and can be controlled from a TZT display. To access the main menu of the transponder, do the following: 1. At the installation of this equipment, connect the FA-30 (or FA-50) to the TZT.
Page 44: Dsc Message Information
1. SYSTEM INTRODUCTION 1.21 DSC Message Information The DSC (Digital Selective Calling) message information feature provides, on the chart plotter and radar displays, the MMSI no. and position* of the ships that have transmitted a DSC message to you. A hexagon-shaped marker marks a ship’s posi- tion.
Page 45: The Dsc List
1. SYSTEM INTRODUCTION Target Info Nickname ABCDEF MMSI 333336789 263.4°M 1.5 kn Range 2.101 NM Bearing 210.4° Time 9’34s Position N 47°47.692’; W122°29.653’ Nature of Distress Distress Detailed information 1.21.5 The DSC list When you receive a DSC message, it is automatically registered to the DSC list. To help you identify a ship quickly on the chart plotter and radar displays, you can replace the MMSI no.
Page 46: Wireless Lan Settings
1. SYSTEM INTRODUCTION 1.22 Wireless LAN Settings You can connect to the internet with the wireless LAN signal to download weather in- formation (see chapter 11) and to connect to an iPhone, iPod or iPad. To download weather infromation, connect the existing LAN network. To connect to an iPhone, iPod or iPad, create a local wireless network.
Page 47 1. SYSTEM INTRODUCTION 5. Select the [ON] icon in [Wireless]. Note: You can use the wireless LAN function when the internal temperature of the equipment inside is detected with the temperature sensor and is over 0°C. The [ON] icon in [Wireless] is grayed out if the equipment does not meet the above re- quirement.
Page 48 1. SYSTEM INTRODUCTION 1. Select [Create local network] in [Wireless Mode]. Wireless LAN Settings Wireless Wireless Mode Create local network Create local Wireless network NAVNETTZT 2. Select [SSID] to open the software keyboard. 3. Enter the SSID then select [Confirm]. 4.
Page 49 1. SYSTEM INTRODUCTION Invalid password : Only 5 or 13 characters allowed. For [WEP] Invalid password : Password must be at least 8 characters and cannot exceed 63 characters. For [WPA2 - PSK] Select [Ok] then reenter the correct password. 8.
Page 50: Software Update
1. SYSTEM INTRODUCTION 1.23 Software Update You can update the software via the internet. See section 1.22 about the internet con- nection. 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select [General]. 3. Select the [Update] icon in [Check for Software Update]. The following messages appear in order.
Page 51 1. SYSTEM INTRODUCTION This page is intentionally left blank. 1-36...
Page 52: Chart Plotter
CHART PLOTTER This chapter shows you how to do the following: • Use and prepare the chart plotter • Set chart plotter related alarms • Control the track Chart Type A world map in raster chart format is included in your unit. A vector chart for the US coastline (Alaska and Hawaii included) is provided also.
Page 53: Chart Scale
Chart scale North indicator Chart scale box How to zoom in or out the chart scale TZT9/TZT14: Rotate the RotoKey or pinch the chart screen. Zoom in Zoom out TZTBB: Pinch the chart screen. Or tap the chart scale box at the bottom right-hand corner of the screen to display the slider bar.
Page 54: How To Move The Chart
2. CHART PLOTTER [Head Up]: Displays the chart with the current compass heading of your ship at the top of the screen. The heading data from a compass is required. When the heading changes, the boat icon remains fixed, and the chart picture rotates ac- cording to heading.
Page 55 2. CHART PLOTTER Heading line To display the heading line, do as follows: 1. Select the boat icon to display the pop-up menu. 2. Select [Heading Line]. COG vector To display the COG vector and the turn direction, do as follows: 1.
Page 56: How To Find The Range And Bearing To A Location
2. CHART PLOTTER 6. Select [COG/SOG Predictor Time] then select the time for COG/SOG predictor. COG/SOG Predictor Time 00:02:00 00:00:10 00:00:30 00:01:00 00:02:00 00:05:00 7. Select [Close] to exit the menu. Orientation You can select the orientation of the boat icon. 1.
Page 57: Chart Object Information
2. CHART PLOTTER 3. Select the 2nd location. A dashed line runs between the start location and the 2nd location. The range and bearing to the 2nd location are shown. 8.765NM 8.765NM Range and bearing from starting 76.4°M 76.4°M location to the 2nd location M: Magnetic 2nd location Starting location...
Page 58: Multiple Chart Plotter Displays
2. CHART PLOTTER Multiple Chart Plotter Displays A maximum of three chart plotter displays can be shown on one screen. The multiple chart plotter displays let you see the conditions around your ship on both short and long ranges. Also, you can see how your ship moves toward your destination from more than one angle.
Page 59: Cartographic Text And Objects On Vector Charts
2. CHART PLOTTER Cartographic Text and Objects on Vector Charts This section shows you how to show or hide the cartographic objects and text infor- mation that appear on the vector charts. 2.9.1 Control visibility of text and object information The [Vector Chart] menu controls the visibility of text and object information, for exam- ple, buoy names and light description.
Page 60: Control Visibility Of Cartographic Objects
2. CHART PLOTTER [Text (Other)]: Show or hide the other text information. [Display Buoy Names]: Show or hide the buoy names. [Display Light Description]: Show or hide the light descriptions. [Display Light Sectors]: Show or hide light sectors for fixed beacons. [Display Routes]: Show or hide routes.
Page 61: Alarms
2. CHART PLOTTER [S-52 Vector Chart Display Mode]: Set the level of information to show on the chart. The selections are [Custom], [Base], [Standard], [Other], and [Fishing]. The chart fea- tures are turned on or off according to setting. Note: The following menu items except [Reset Default Settings] are unavailable when you select the mode other than [Custom].
Page 62: Xte Alarm
2. CHART PLOTTER How to open the [Alarm] menu 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select [Alarm]. Hardware Alarm XTE Alarm Speed Alarm Depth Alarm 10.0 kn Speed Alarm Value Depth Alarm Value 30.0 ft Speed Alarm Output Sea Surface Temperature Alarm...
Page 63: Sst Alarm
2. CHART PLOTTER 2.10.3 SST alarm The sea surface temperature alarms tells you when the sea surface temperature is over, under, within, or out of range of the temperature you set. Requires a temperature sensor. 1. Select [Sea Surface Temperature Alarm] from the [Alarm] menu. Sea Surface Temperature Alarm Over Under...
Page 64: Anchor Watch Alarm
2. CHART PLOTTER 3. Select [Speed Alarm Value] to display the software keyboard. 4. Set the value for [Under] or [Over] then select [Confirm]. 5. If you output the speed alarm from this equipment, select the [ON] icon in [Speed Alarm Output].
Page 65: How To Stop The Alarm Sound
2. CHART PLOTTER [Alarm Sound]: Activate ([Sound 1 (2, 3)]) or deactivate ([Off]) the alarm buzzer. Alarm Sound Sound 1 Sound 1 Sound 2 Sound 3 [Sound Alarm Until Acknowledged]: Turn this item on to sound the aural alarm until an alarm is acknowledged (see paragraph 2.10.7).
Page 66: How To Show Or Hide The Track Display
2. CHART PLOTTER 2.11.1 How to show or hide the track display 1. Select [Overlay] from the RotoKey menu. 2. To show the track, select [Tracks]. To hide the track, deselect [Tracks]. 2.11.2 Track interval In drawing the track, the position of your ship is stored into the memory of this unit at an interval of time.
Page 67 2. CHART PLOTTER From the main menu 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select the [Ship & Track] - [Track Color] menu. Track Color Fixed Fixed Variable 3. Select [Fixed] or [Variable]. For [Fixed], go to the next step. For [Variable], go to step 5.
Page 68 2. CHART PLOTTER 6. Select [Variable Color Setup]. Color icon Threshold amount For [SST] For [Depth] For [Bottom Discrimination] For [Speed] 7. For [Bottom Discrimination], select [Mud], [Sand], [Rock] or [Gravel]. For others, select [Color 1 (2, 3, 4, 5, 6, 7)]. 8.
Page 69: Track Thickness
2. CHART PLOTTER On the screen 1. Select a track to display the pop-up menu. 2. Select [Color]. 3. Select a color. 2.11.4 Track thickness You can set the thickness of the track. If you are following the same track many times, you can show the track in the thinnest width to prevent overlapping of track.
Page 70: How To Turn On The Automatic Deleting Of Tracks
2. CHART PLOTTER 2.11.6 How to turn on the automatic deleting of tracks The internal memory stores a maximum of 30,000 track points. When the memory for track points becomes full, the equipment automatically deletes the oldest track points to get space for new track points. 1.
Page 71 2. CHART PLOTTER • The XTE lines appear when you turn on these lines. Activate Yellow line: Shortest [Track Back] course from the current position to the go to point Point where the track back starts Track XTE lines Thick red dashed line: Course between first go to point and the point where First go...
Page 72: Navpilot-700 Series Auto Pilot
2. CHART PLOTTER 2.12 NAVpilot-700 Series Auto Pilot The FURUNO NAVpilot-700 Series Auto Pilot installs in the TZT network. The follow- ing functions can be controlled from a TZT display: • Displaying the NAVpilot-700 series data in the data boxes.
Page 73 2. CHART PLOTTER 10:30 AM Mode Auto (Adv) °M 36.1 36.1 36.1 36.1 72.81 72.81 72.81 72.81 2. Adjust the CTS line by the following two methods: • Select in the data box. • Select the CTS line to display the pop-up menu then select [Adjust]. Drag the circle icon to set the angle then select [Done] at the top right-hand corner of the screen.
Page 74 2. CHART PLOTTER How to activate NAV mode The [Nav] icon in the data box is grayed out without an active point or route. To acti- vate NAV mode, activate a point or route (see sections 4.10 and 5.8). The message "Do you want to navigate using the NAVpilot?"...
Page 75: Plotter Display Menu
2. CHART PLOTTER 2.13 Plotter Display Menu This section describes the chart plotter menus. To open the following menus, select [Menu] on the menu icon bar then select [Plotter Display]. Day/Night Mode Raster Chart Priority in Auto Mode Chart Boundaries Display Raster Chart Unit Legent Grid Interval 3D Display...
Page 76 2. CHART PLOTTER [Depth Shading Transparency]: Set the degree of transparency for the depth shading on the water. See paragraph 3.2.1. [Radar Overlay] [Radar Overlay Transparency]: Set the degree of transparency for the radar echo. [Radar Overlay Source]: Select the source for the radar echo from [Antenna Range1] or [Antenna Range2].
Page 77 2. CHART PLOTTER This page is intentionally left blank. 2-26...
Page 78: D Display, Overlays
3D DISPLAY, OVERLAYS 3D Display The 3D display has native 3D chart design that allows full time 3D presentation. This true 3D environment gives you all of the information you require with no restrictions on the information you can see. You can plan your routes, enter points, etc. like on the 2D chart.
Page 79: How To Activate The 3D Display
3. 3D DISPLAY, OVERLAYS 3.1.2 How to activate the 3D display 1. Select [3D] from the RotoKey menu. You Drag upward or downward. can also switch 2D to 3D by dragging two fingers upward or downward. 2. Orientate the 3D display by dragging sideways with two fingers. To switch to 2D, select [2D Mode] at the top right-hand corner of the screen.
Page 80: Overlays
3. 3D DISPLAY, OVERLAYS High gives the highest level of exaggeration. The example below compares the same picture in low and high exaggerations. High exaggeration Low exaggeration 4. Select [Close] to exit the menu. Overlays Radar, satellite photo, depth shading, tide icons, tidal currents, etc. overlays are avail- able on the chart plotter display.
Page 81 3. 3D DISPLAY, OVERLAYS Depth shading settings The depth shading settings are on the [Plotter Display] menu of the main menu. Set these menus by following the description shown below. 0.0 ft 200 ft [Auto Depth Shading Color Scale]: Turn automatic depth shading color scale selection on or off.
Page 82: Satellite Photo Overlay
3. 3D DISPLAY, OVERLAYS [Depth Color Shade]: Select how to display the depth colors among [ClassicHue], [In- vertedClassicHue], [RedHue], [BlueHue], [GreenHue] and [YellowHue]. Depth Color Shade ClassicHue ClassicHue Colors of the rainbow InvertedClassicHue RedHue Shades of red BlueHue GreenHue 3.2.2 Satellite photo overlay You can put the satellite photo for your area on the 2D and 3D displays.
Page 83: Radar Overlay
3. 3D DISPLAY, OVERLAYS 3.2.3 Radar overlay The radar overlay display puts the radar picture on the top of the navigation chart. To display the radar overlay, select [Overlay] from the RotoKey menu then select [Radar]. How to switch between stand-by and TX To transmit, select [Radar] from the RotoKey menu then select [Tx Radar].
Page 84: Tide Icon Overlay
3. 3D DISPLAY, OVERLAYS How to select the echo color Select the [Plotter Display] - [Echo Color for Overlay] menu of the main menu. Select [Multicolor], [Green] or [Yellow]. Echo Color for Overlay Multicolor Multicolor Green Yellow How to acquire a target for ARPA A target can be acquired for ARPA.
Page 85 3. 3D DISPLAY, OVERLAYS How to change the size of the tide icon 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select [Plotter Display]. 3. Drag the circle icon in [Tide/Current Icons Size] to set size (setting range: 50 to 150%).
Page 86: Tidal Current Overlay
3. 3D DISPLAY, OVERLAYS How to understand the tide graph • Vertical axis: Height, Horizontal axis: Time • The information is mostly accurate under moderate weather conditions. However, storms and weather fronts can influence forecasted tide times and heights. • Drag the time scale at the bottom of the screen sideways then read the tide height at the selected time (drag to the left to display the future information, right for the past information).
Page 87 3. 3D DISPLAY, OVERLAYS How to change the tidal current icon size 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select [Plotter Display]. 3. Drag the circle icon in [Tide/Current Icons Size] to set size (setting range: 50 to 150%).
Page 88 3. 3D DISPLAY, OVERLAYS How to understand the tidal current graph • Vertical axis: Speed, Horizontal axis: Time • The information is mostly accurate under moderate weather conditions. However, storms and weather fronts can influence forecasted tidal current directions and speeds.
Page 89 3. 3D DISPLAY, OVERLAYS This page is intentionally left blank. 3-12...
Page 90: Points
POINTS About Points In navigation terminology, a point is any location you put on the chart plotter display. A point can be a fishing spot, reference point and other important locations. You can use a point you have entered to set a destination. This unit has 30,000 points into which you can enter position information.
Page 91: How To Put An Event Mark
4. POINTS 4.2.2 How to put an event mark This function is available by touch control when you select [Event] in [General] - [Func- tion Gesture] of the main menu (see section 1.15). 1. Tap the screen with two fingers. Creating Event Cancel You can open the above window from the [Event] RotoKey menu.
Page 92: Default Point Settings
4. POINTS [SST]: Sea surface temperature [Date And SST]: Date and sea surface temperature 4. Select [Close] to exit the menu. Name Depth 35.7 ft Comment 8/7/2012 11:41:38 AM 73.1°F 115.5 °M Bearing 0.514 NM Range Example: [Date And SST] Screenshot in the information area You can display a screenshot, at the time when tapping the screen with two fingers to put an event mark, in the information area.
Page 93 4. POINTS 2. Select [Points]. Display Points Names Default Point Symbol Default Point Color Point Size Icon Set Modern Data to Be Recorded in Event Comment None Event Configuration Config. Delete All Points & Routes Delete Delete All Event Pictures Delete Reset Default Settings 3.
Page 94: How To Move A Point
4. POINTS How to Move a Point You can move a point by two methods, on the screen and from the points list. 4.5.1 How to move a point on the screen 1. Select the point to move. The pop-up menu appears. 2.
Page 95: How To Delete A Point From The Points List
4. POINTS 4.6.2 How to delete a point from the points list 1. Select [Lists] on the menu icon bar to open the lists menu. 2. Select [Points List] to open the points list. 3. Select [Name], [Color], [Icon] or [Range] in the [Sort by] area at the top of the list. [Name]: Points sorted in alphanumeric order [Color]: Points sorted by color in order of red, green, blue, cyan, magenta, black &...
Page 96 4. POINTS 2. To change the name of the point, select [Name] to display the software keyboard. Change the name as follows: 1) Select the character to edit. For example, "1" is selected in the following figure. Alphabet software keyboard Numeric software keyboard Cursor Confirm...
Page 97: How To Edit A Point From The Points List
4. POINTS 4.7.2 How to edit a point from the points list 1. Select [Lists] on the menu icon bar to open the lists menu. 2. Select [Points List] to open the points list. Points List 3. Select [Name], [Color], [Icon] or [Range] Sort by : Range Name...
Page 98 4. POINTS 5. To change the name of the point, select [Name] to display the software keyboard. Change the name as follows: 1) Select the character to edit. For example, "1" is selected in the following figure. Alphabet software keyboard Numeric software keyboard Cursor Confirm...
Page 99: How To Find A Point
4. POINTS How to Find a Point You can easily move a point to the center of the screen from the points list. 1. Select [Lists] on the menu icon bar to open the lists menu. 2. Select [Points List] to open the points list. 3.
Page 100: How To Go To An On-Screen Point
4. POINTS 4.10.1 How to go to an on-screen point 1. Select the point to display the pop-up menu. 2. Select [Go To]. Arrival area (Appears when Go to point you select [Circle and Cross Line] or [Circle] in the [Routes] - [Waypoint Thick red dashed line: Switching Mode] menu.) Course between the go to...
Page 101: How To Go To A Position Selected On Screen
4. POINTS 4.10.2 How to go to a position selected on screen You can set a position as a point to go to without saving the point. The point is erased when the navigation is cancelled or the power is turned off. 1.
Page 102: How To Go To A Point Selected From The Points List
4. POINTS 4.10.3 How to go to a point selected from the points list 1. Select [Lists] on the menu icon bar to open the lists menu. 2. Select [Points List] to open the points list. 3. Select [Name], [Color], [Icon] or [Range] in the [Sort by] area. 4.
Page 103: How To Display The Point Information For The Active Route
4. POINTS 4.10.4 How to display the point information for the active route 1. Select the yellow line to display the pop-up menu. 2. Select [Rte Detail]. The [Route Detail] window appears. CTS: Course To Steer, TTG: Time To Go 3.
Page 104: Routes
ROUTES What is a Route? A route is a series of route points entered in the order to use for navigation. A route can contain up to a maximum of 500 route points, and this equipment stores 200 routes. Note: When connecting NavNet 3D units on the LAN network, a route can contain up to a maximum of 100 route points.
Page 105: How To Create A New Route From A Point
5. ROUTES 4. Select the next route point in the route. Repeat this step to enter all route points. Each route point is numbered. Route leg 2nd route point 1st route point (starting point) 4th route point 3rd route point 5.
Page 106: How To Insert A Route Point On A Route
5. ROUTES 5. At the last route point, select [End Route] at the top right-hand corner of the screen to complete the route. The flag mark disappears and the following window ap- pears. A new route has been created under this name: RTE 2012-03-01 Cancel Rename...
Page 107: How To Delete A Point Or Route Point On A Route
5. ROUTES 3. Move the route point to the new position by dragging the route point or tapping the new position. 4. Select [End Move] at the top right-hand corner of the screen. 5.2.5 How to delete a point or route point on a route You can delete a point or route point on a route.
Page 108: How To Split A Route
5. ROUTES 5.2.8 How to split a route You can divide a route in two to make two routes. 1. Select the route leg where to divide the route. The pop-up menu appears. 2. Select [Split]. The selected route leg is deleted and the route is divided. The new route is given the new route name and saved to the routes list.
Page 109 5. ROUTES 3. Select the route to view then select [Edit] or [Route Detail]. The route data ap- pears. Length 2.299NM RTE 2012-03-01 From Edit Route Detail Goto 3/1/2012 RTE 2012-03-01 You can edit the route data in the [Editing Route] window. For detailed information of the editing procedures, refer to section 4.7.
Page 110: How To Join Points To Create A Route
5. ROUTES How to Join Points to Create a Route You can join points which you have entered to create a route from the points list. 1. Select [Lists] on the menu icon bar to open the lists menu. 2. Select [Points List] to open the points list. 3.
Page 111: How To Delete A Route
5. ROUTES How to Delete a Route You can delete routes separately or together. An active route cannot be deleted. 5.6.1 How to delete a route on the screen 1. Select a route leg of a route to delete. The pop-up menu appears. 2.
Page 112: How To Follow A Route Selected From The Routes List
5. ROUTES 2. Select [Activate]. Arrow marks in direction to follow route Route leg (red line) Arrival area (appears when Boat icon Course to 1st route point you select [Circle and (current position) (thick red dashed line) Cross Line] or [Circle] in the [Routes] - [Waypoint Switching Mode] menu.) The following occurs:...
Page 113: How To Start Navigation From A Route Point
5. ROUTES to get to the 1st route point. The yellow line is the shortest course from the current position to the go to point. • The go to point is numbered "1" and the position where the [Go To] function starts is numbered "0".
Page 114: How To Show The Detailed Information About A Route
5. ROUTES 5.8.4 How to show the detailed information about a route 1. Select a route leg of the route to get the detailed information. The pop-up menu appears. 2. Select [Rte Detail]. The [Route Detail] window for the selected route opens (see section 5.3).
Page 115: Operations When You Follow A Route
5. ROUTES Operations When You Follow a Route 5.9.1 How to restart navigation When you follow a route, you can re- Line 2 start the navigation to the next route point on the route from current location. When you steer to keep away from an obstruction or the ship drifts, you go off course as shown in Line 1 in the figure.
Page 116: Waypoint Switching Mode
5. ROUTES 5.9.5 Waypoint switching mode When you arrive to a route point, your unit automatically changes to the next route point according to the waypoint switching mode selected on the menu. [Cross Line]: Change the waypoint when the ship moves through an imaginary cross line (vertical line) that passes through the center of the destination point.
Page 117: Xte Lines
5. ROUTES 5.9.7 XTE lines The XTE line for port side is red, for starboard side it is green. You can show or hide these lines. 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select the [Routes]. 3.
Page 118: Fuel Level
5. ROUTES 5.10 Fuel Level You can display the fuel level on the screen. The fuel flow or fuel level data is required. Fuel Max Range You can display a pump icon on the route where it is predicted that the fuel supply will be exhausted.
Page 119 5. ROUTES [Default Route Color]: Select the color of the routes. The options are red, blue, green, yellow, magenta, orange, cyan, or black & white. [Route Thickness]: Select the thickness of the routes. [Navigate with AutoPilot]: See "How to activate NAV mode" on page 2-23. [Ask to Enter Route Name]: Show or hide the window for the route name (see the il- lustration at step 5 in paragraph 5.2.1) when you create a new route.
Page 120: Radar
RADAR This chapter provides the information necessary for radar operation. How to Transmit, Set the Radar in Stand-by, Tune Transmission, stand-by Press the Home key (or tap the Home icon) to show the display selection window then select the radar display. Push the RotoKey (or tap the screen) to show the RotoKey menu then select [Tx Radar] to transmit.
Page 121: How To Adjust The Gain
6. RADAR How to Adjust the Gain You can adjust the gain (sensitivity) of the radar receiver. The correct setting shows some background noise on the screen. If you do not use enough gain, weak echoes are erased. If you use more gain than necessary, the background noise hides both weak and strong targets.
Page 122: How To Reduce The Sea Clutter
6. RADAR How to Reduce the Sea Clutter The reflected echoes from waves appear at the central part of the screen and have the name "sea clutter". The sea clutter increases in width as the height of waves and the height of the antenna above the water increase. If the sea clutter is strong, targets can be hidden inside the clutter, like in the left-hand figure shown below.
Page 123: How To Reduce The Rain Clutter
The range and range ring interval appear at the bottom left-hand corner of the screen. Range Range ring interval How to zoom in or out the range scale TZT9/TZT14: Rotate the RotoKey or pinch the radar screen. Zoom in Zoom out...
Page 124: Orientation Mode
6. RADAR TZTBB: Pinch the radar screen. Or tap the radar scale box at the bottom left-hand cor- ner of the screen to display the slider bar. Drag the circle icon to set the range scale. Zoom in Slider bar Current Drag the circle range...
Page 125: How To Measure The Range And Bearing From Your Ship To A Target
6. RADAR How to Measure the Range and Bearing from Your Ship to a Target You can measure the range or bearing to a target by the following four methods. Range measurement Bearing measurement Fixed range rings Ruler VRM (Variable Range Marker) EBL (Electronic Bear- ing Line)
Page 126: How To Select The Range Rings Mode
6. RADAR 6.7.3 How to select the range rings mode To select the range rings mode, select the [Radar] - [Bearing Scale Mode] menu of the main menu then select [Relative] or [True]. Bearing Scale Mode Relative Relative True Head-up mode Heading line North (“0”)
Page 127: How To Measure The Range And Bearing With The Ruler
6. RADAR 6.7.4 How to measure the range and bearing with the ruler Select an object to get the range and bearing. Read the range and bearing in the box. Object Range 3.716 NM 109.5 ° Bearing Range 3.716 NM 109.5 °...
Page 128: How To Measure The Bearing With The Ebl
6. RADAR 6.7.6 How to measure the bearing with the EBL The EBL is a straight dashed line from the center of the screen to the edge. 1. Select [EBL] from the RotoKey menu. 2. Select [Adjust]. Target End EBL Bearing to the target 295.2 º...
Page 129: How To Measure The Range And Bearing Between Two Targets
6. RADAR How to Measure the Range and Bearing Between Two Targets You can measure the range and bearing between any two targets with the [Measure] menu. 1. Select the center of the target A to display the pop-up menu. 2.
Page 130: How To Reduce Radar Interference
6. RADAR 6.11 How to Reduce Radar Interference Radar interference can occur when your ship is near the radar of another ship that operates on the same frequency band with your radar. The interference shows on the screen in many bright dots. The dots can be random or in the shape of dotted lines that run from the center to the edge of the screen.
Page 131: How To Hide The Guard Zone
6. RADAR 6.12.3 How to hide the guard zone 1. Select [Guard Zone] from the RotoKey menu. 2. Deselect [Visible]. The guard zone disappears from the screen. Note: This operation is available when the guard zone is deactivated. 6.12.4 Guard zone menus There are four sub menus in [Guard Zone];...
Page 132: Echo Trails
6. RADAR 6.14 Echo Trails Echo trails show the movements of radar targets relative or true to your ship in imita- tion afterglow. This function helps alert you to possible collision conditions. 6.14.1 How to show or hide echo trails To show the echo trails, select [Echo Trail] from the RotoKey menu.
Page 133: Echo Trail Mode (Reference)
6. RADAR 6.14.4 Echo trail mode (reference) Trail movement can be set for relative or true. The relative trails show the relative movements between targets and your ship. True motion trails show the movements of targets according to the targets over-the-ground speeds and courses. True trails re- quire position and heading information.
Page 134: Echo Trail Shading
6. RADAR 6.14.6 Echo trail shading The echo trail can be shown in gradual shading or monotone (single shade). The fig- ure below is an example when you select blue in the [Radar] - [Trail Color] menu. Object [Single] [Multi] (Monotone shading) (Gradual shading) 1.
Page 135: Sweep Fade
6. RADAR To properly use the echo average function, first suppress the sea clutter. 1. Select [Radar Filters] from the RotoKey menu. 2. Select [Average]. To deactivate the echo average, deselect [Average] at step 2. b) Echo average ON a) Echo average OFF 6.17 Sweep Fade The sweep fade feature automatically reduces the brilliance of weak signals (noise,...
Page 136: How To Show Or Hide The Boat Icon
6. RADAR 6.19 How to Show or Hide the Boat Icon You can show or hide the boat icon on the radar display. 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select [Radar]. 3. Select the [ON] icon to show the boat icon, the [OFF] icon to hide the boat icon in [Own Ship Icon].
Page 137: Radar Overlay Range Link
6. RADAR 6.22 Radar Overlay Range Link The radar overlay range link automatically keeps the chart scale and radar range in sync. This feature helps you understand the relation between the radar and the chart. You can activate or deactivate this feature from [Plotter Display]. See paragraph 3.2.3. Note: The radar picture can look “out of focus”...
Page 138: Far-2Xx7 Radar Series And Navnet Tztouch
6. RADAR 6.24 FAR-2xx7 Radar Series and NavNet TZtouch The FAR-2xx7 radar series* can be connected to your NavNet TZtouch, and some functions can be controlled from the NavNet TZtouch. The table below shows which features can be controlled from the NavNet TZtouch. Note that you should turn off Guard Polygon at the radar to control the radar from the NavNet TZtouch.
Page 139: How To Understand The Radar Display
6. RADAR 6.25 How to Understand the Radar Display 6.25.1 False echoes Echo signals can appear on the screen at positions where there is no target or disap- pear where there are targets. You can identify false targets when you understand why the false echoes appear.
Page 140 6. RADAR Shadow sector Funnels, stacks, masts, or derricks in the path of the antenna stop the radar beam. If the angle opposite the antenna is more than one or two degrees, a sector or shadow sector appears on the screen. Targets are not displayed within the sector. Wharf and its echo Radar position Wharf and its echo...
Page 141: Search And Rescue Transponder (Sart)
6. RADAR 6.25.2 Search and rescue transponder (SART) A ship in distress uses a radar-SART to show a series of dots on the radar display of nearby ships to indicate distress. A SART transmits when it receives a radar pulse from any X-Band (3 cm) radar within a range of approximately 8 nm.
Page 142: Arpa Operation
6. RADAR 6.26 ARPA Operation The ARPA (Automatic Radar Plotting Aid) shows the movement of a maximum of 30 radar targets. The targets can be acquired manually or automatically. All 30 targets can be acquired manually when the ARPA acquisition area is not active. If the ARPA acquisition area is active, that total is equally divided between manual and auto acqui- sition.
Page 143: How To Automatically Acquire A Target
6. RADAR 2. Select [Acquire]. After you acquire a target, the radar marks the target with a broken square and a vec- tor appears within 30 s. The vector indicates the direction of the target. Within 90 s after you acquire the target, the first tracking step is finished and the target is tracked continuously.
Page 144: How To Display Target Data
6. RADAR 6.26.4 How to display target data You can find the bearing, range, etc. of an ARPA target. Select the ARPA target to get its information. For detailed information, select the ARPA target to display the pop-up menu then select [Info]. The detailed information display can also be shown by select- ing the simple information display.
Page 145: Cpa/Tcpa Alarm
6. RADAR 6.26.7 CPA/TCPA alarm This alarm helps you keep your ship away from collision by warning of targets on a collision course. The ARPA continuously monitors the predicted range at the Closest Point of Approach (CPA) and predicted time to CPA (TCPA) of each tracked target. When the predicted CPA or TCPA is less than their set values, the alarm sounds and the message "CPA/TCPA Alarm"...
Page 146: Fish Finder
Sounder BBDS1, Network Sounder DFF series or Color LCD Sounder FCV-1150. Note: When connecting the FURUNO Color LCD Sounder FCV-1150, do not select [USER-1] or [USER-2] with the MODE control. The echoes on the TZT display appear with scan lines.
Page 147: Single Frequency Display
7. FISH FINDER 7.2.1 Single frequency display The single frequency display shows either the low-frequency or high-frequency picture on all the screen. Select a frequency according to your purpose. • A low frequency gives a wide detection area. Use the low frequency for general search and to find bottom conditions.
Page 148: Dual Frequency Display
7. FISH FINDER 7.2.2 Dual frequency display The dual frequency display provides both low and high frequency pictures. Use the dual frequency display to compare the same picture with two different sounding fre- quencies. High frequency frequency Freq. Detection Bottom Beamwidth Resolution (kHz) range...
Page 149 7. FISH FINDER Bottom lock display The bottom lock display provides a compressed normal picture on the right half and a 7 to 400 feet (2 to 120 meter) wide layer in contact with the bottom is expanded on the left half.
Page 150: A-Scope Display (Display Only)
7. FISH FINDER 7.2.4 A-scope display (display only) The A-scope display appears at the right of the screen and is available in any fish find- er mode. This display shows the echoes at each transmission with the amplitudes and tone in balance with their intensities. This display helps you identify possible fish spe- cies and bottom structure.
Page 151: Bottom Discrimination Display
7. FISH FINDER 7.2.5 Bottom discrimination display The bottom discrimination display, available with the Bottom Discrimination Sounder BBDS1 or Network Fish Finder DFF1-UHD and appropriate transducer, identifies probable bottom composition. The display is available in all screen divisions, single or dual frequency mode and occupies the bottom 1/6 of the screen in the full screen dis- play.
Page 152: How To Select An Automatic Fish Finder Mode
7.4.2 How to select the display range Manual range setting TZT9/TZT14: Rotate the RotoKey to select the range. The range can not be changed in the auto mode or the bottom discrimination display. TZTBB: Pinch the fish finder screen. Or tap the sounder scale box at the bottom left- hand corner of the screen to display the slider bar.
Page 153: How To Shift The Range
7. FISH FINDER 7.4.3 How to Shift the Range The basic range and range shift functions let you select the depth you can see on the screen. This function is not available when [Auto Range] is active. 1. Select [Menu] on the menu icon bar to open the main menu. 2.
Page 154: Picture Advance Speed
7. FISH FINDER 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select [Sounder]. 3. Drag the circle icon in [Clutter] to set the level. The larger the setting value, the greater the degree of reduction. 4.
Page 155: How To Measure Range, Depth Or Time To An Object
7. FISH FINDER the interference rejector to reduce the interference. Turn off the interference rejector when there is no interference, so that you do not erase weak echoes. Interference from Interference from other sounder electrical equipment 1. Select [Menu] on the menu icon bar to open the main menu. 2.
Page 156: How To Balance Echo Strength
7. FISH FINDER How to Balance Echo Strength A school of fish at a depth deeper than a school of equal strength in shallow water ap- pears in weaker colors. This condition is caused by the attenuation of the ultrasonic wave.
Page 157: How To Activate Or Deactivate An Alarm
7. FISH FINDER 3. For fish alarm, select [Range Minimum Value] or [Range Maximum Value] below [Fish Alarm] to display the software keyboard. For bottom lock fish alarm, select [Range Minimum Value] or [Range Maximum Value] below [Fish Alarm for Bottom Lock] to display the software keyboard. 4.
Page 158: Alarm Sensitivity
7. FISH FINDER 7.9.3 Alarm sensitivity You can select which strength of echoes release the fish alarms. 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select [Sounder] - [Fish Alarm Level]. Fish Alarm Level Medium Medium High...
Page 159: How To Set Accu-Fishtm
7. FISH FINDER 7.10.1 How to set ACCU-FISH 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select [Sounder]. 3. Select [ACCU-Fish Info]. ACCU-Fish Info Depth Depth Fish Size 4. Select [Depth] or [Fish Size]. 5.
Page 160: Fish Size Correction
7. FISH FINDER 7.10.2 Fish size correction The fish size shown on the screen can be different from the true size. If the size is wrong, add an offset to the measured value to get a more accurate indication on the screen.
Page 161: Fish Finder Menu Operation
7. FISH FINDER 3. Select a mark. In the example below, a shrimp mark is put on the fish symbol. 294 ft How to go to a point or a position 1. Select a fish symbol (only in ACCU-FISH mode), a point or a position to display the pop-up menu.
Page 162 To remove this problem, the satellite compass sends pitch and roll data to the fish finder to adjust the TX and RX beams. This function requires a FURUNO Satellite Compass. [Transmit Rate Auto]: Automatically set the transmit rate according to ship’s speed, and is inoperative when there is no speed data.
Page 163 7. FISH FINDER [Zero Line Range]: This feature adjusts the transmission line so that the line disap- pears when [Zero Line Rejection] is turned on. The effective range is 1.4 to 2.5. For a long tail, increase the value. If the transmission line does not disappear, lower the TX power (DFF3 only).
Page 164: Lcd Color Sounder Fcv-1150 And Navnet
7. FISH FINDER tion range is shorter (pulse length is about 1/2 of [Std]) than [Std]. [Std] is the standard pulse length, and is suitable for general use. [Long] increases the detection range but lowers the resolution (about 1/2 compared to the [Std] pulse length) (DFF3 only). [RX Band HF (LF)]: The RX bandwidth is automatically set according to pulse length.
Page 165 7. FISH FINDER Controllable Function Remarks from NavNet Fish info size Set at FCV-1150. Frequency adjustment Gain According to Gain/Mode setting at FCV-1150. Gain offset Set at FCV-1150. Heaving correction High resolution Interference rejection Manual pulse length Set at FCV-1150. Mode According to Gain/Mode setting at FCV-1150.
Page 166: Interpreting The Display
7. FISH FINDER 7.14 Interpreting the Display Zero line The zero line (transmission line) shows the position of the transducer. The line disap- pears from the screen when the range is shifted. Zero line Range shifted Bottom echoes The strongest echoes are from the bottom, and are normally shown in reddish-brown or red.
Page 167 7. FISH FINDER Nature of a bottom The nature of a bottom is known from the intensity and length of the bottom tail. To find the nature of a bottom, use a long pulse length and normal gain. For the hard and rough bottom, the bottom echo is reddish-brown with a long tail.
Page 168 7. FISH FINDER Density of a school of fish If two schools appear with the same color at different depths, the one in deeper water is denser because the ultrasonic wave attenuates as it propagates and the school of fish in deep water tends to be displayed in a weaker color. Difference in signal strength Reddish Less reddish...
Page 169 7. FISH FINDER Surface noise When the sea is rough or the ship moves over a wake, surface noise can appear at the top of the screen. Surface noise Air bubbles in the water When the sea is rough or the ship makes a quick Ultrasonic wave turn, there can be blank spots in the bottom echo blocked by air bubbles...
Page 170: File Operations
FILE OPERATIONS This chapter covers the file operations shown below, using SD cards. • How to export points, routes and tracks • How to import points, routes and tracks Note: DO NOT remove the card while the SD drive is being accessed, to prevent loss of data or damage to the card.
Page 171: File Format
8. FILE OPERATIONS [Export File Format]: Select the file format to use to export data, among [TZD], [CSV], [GPX] or [KML]. [Import Points & Routes]: Import points and routes from an SD card. When you import points and routes from an SD card, all points and routes currently stored in the TZT unit are replaced with those on the SD card.
Page 172: How To Export Points And Routes
8. FILE OPERATIONS How to Export Points and Routes When the capacity for point is reached, the oldest point is erased to clear space for new point. A new route cannot be entered when the memory for routes is full. If you need to save points and routes permanently, save them to an SD card.
Page 173: How To Import Or Export Tracks
8. FILE OPERATIONS How to Import or Export Tracks How to import tracks You can import tracks to the internal memory of a TZT unit. 1. Put the correct SD card in either card drive. 2. Select [Menu] on the menu icon bar to open the main menu. 3.
Page 174: How To Backup The Equipment Settings
8. FILE OPERATIONS How to Backup the Equipment Settings You can save the settings to an SD card to use the settings on other TZT units. 1. Put a blank formatted SD card in the right card drive. 2. Select [Menu] on the menu icon bar to open the main menu. 3.
Page 175: How To Copy The Equipment Settings
8. FILE OPERATIONS How to Copy the Equipment Settings You can copy the data between SD cards. 1. Put the source SD card in the left card drive and the copy destination SD card in the right card drive. 2. Select [Menu] on the menu icon bar to open the main menu. 3.
Page 176: Camera/Video/Fusion-Link
CAMERA/VIDEO/FUSION-Link The camera/video function allows you to use your unit to play back images from a vid- eo player, on-board camera, network camera or DVD player. Network camera images can be seen across the TZT network. A video signal can be seen only on the TZT that receives the video signal.
Page 177: How To Set The Video Display
9. CAMERA/VIDEO/FUSION-Link How to Set the Video Display 9.3.1 How to select the input source Select the input source from the RotoKey menu (see section 9.6). [Analog 1 (2)]: An analog signal [IP 1 (2, 3, 4)]: A digital signal [Quad]: All digital signals (maximum of four) from an axis server 241Q [Input 1 (2, 3, 4)]: A digital signal from an axis server 241Q [Quad 2]: All digital signals (maximum of four) from second axis server 241Q...
Page 178 9. CAMERA/VIDEO/FUSION-Link IP camera You can change the nickname and IP address for an IP camera. Also, you can turn on or off the PTZ (pan, tilt, zoom) function. Select [Camera] - [IP Camera 1] (or 2, 3, 4) of the main menu.
Page 179: How To Adjust The Image Size
9. CAMERA/VIDEO/FUSION-Link FLIR camera Images from an infrared camera allow you to navigate easily at night or in bad weath- er. Select [Camera] - [FLIR Installation] of the main menu. FLIR Installation Scan IP Scan 255.255.255.255 FLIR IP NickName Camera 1 VIdeo Source +0.0 º...
Page 180: How To Cycle Your Video Inputs
9. CAMERA/VIDEO/FUSION-Link 2. Select the [Camera] - [Video Display] menu. Video Display Stretch Stretch 3. Select [Stretch] or [Fit]. [Stretch]: Shrink or enlarge the image to fit the monitor’s width. [Fit]: Shrink or enlarge the image to fit the monitor’s height. The aspect ratio is kept, so a black bar appears on the right and left sides of the picture, but this is normal.
Page 181: Pop-Up Menus By The Flir Camera
9. CAMERA/VIDEO/FUSION-Link Pop-up Menus by the FLIR Camera [Camera FoV] menu You can display the field of view by the FLIR camera on the plotter display. 1. Select the boat icon to display the pop-up menu. 2. Select [Camera FoV]. The circular sector in translucent red appears on the screen.
Page 182: Touch Control On The Camera Display
9. CAMERA/VIDEO/FUSION-Link Touch Control on the Camera Display Analog and Axis Server 241Q Operation Function Short tap: During zoom mode, center the position tapped. Long tap (TZTBB only): Opens the RotoKey menu. Drag Scroll the camera image to the dragged direction. Pinch Zoom in or out the camera image.
Page 183: Fusion-Link
9. CAMERA/VIDEO/FUSION-Link FUSION-Link FUSION-Link allows compatible TZT displays to interface and achieve control of spe- cialized FUSION marine entertainment equipment. How to access the FUSION screen and controls The FUSION controls can be accessed in three methods: • FUSION icon (full screen), •...
Page 184 9. CAMERA/VIDEO/FUSION-Link Tap to select Drag the CH16. circle icon to adjust Channel squelch. selection mode Select channel. Turn down volume. Tap: Switch channel selection mode between Mute or unmute. preset and manual. Long tap: After selecting channel in manual mode, Turn up volume.
Page 185 9. CAMERA/VIDEO/FUSION-Link Method 3: Tap two fingers on the screen Preset [Function Gesture] for [Fusion] (for full window) or [Fusion Ctrl] (for minimized window) (see section 1.15). Once you have done this preset, simply tap the screen with two fingers to access the FUSION controls. 9-10...
Page 186: 10. Instrument Display
10. INSTRUMENT DISPLAY The instrument display gives you the following navigation and environment displays: • Steering • Engine • Tank level (fuel) • Weather • Wind The instrument display can be programmed to a full screen or three-way split screen. In the full screen, four displays are shown at the same time.
Page 187: Instrument Displays
10. INSTRUMENT DISPLAY 10.3 Instrument Displays 10.3.1 Steering Display The steering display provides the analog and digital indications shown below. HDG: Heading COG: Course over ground SOG: Speed over ground CTS: Course to steer (Steer to direction) DTW: Distance to waypoint TTG: Time to go XTE: Cross-track error Steer to direction (P: Port, S: Starboard)
Page 188: Tank Level Display
10. INSTRUMENT DISPLAY 10.3.3 Tank level display The tank level display provides the digital indications shown below. The data for a maximum of four tank levels can be displayed. Fuel level for Fuel level for starboard tank third tank Fuel level for Fuel level for fourth tank port tank...
Page 189: Wind Display
10. INSTRUMENT DISPLAY 10.3.5 Wind display The wind display provides digital and analog indications of wind speed and angle. Analog wind angle P: Port, S: Starboard TWA: True wind angle TWS: True wind speed AWA: Apparent wind angle AWS: Apparent wind speed Indicator color Blue: True wind, Red: Apparent wind 10-4...
Page 190: 11. Weather
U.S. Information provided by the Sirius Marine Weather service is advisory in nature. You, the customer, agree to release FURUNO ELECTRIC CO., LTD., Sirius Satellite Radio Inc., Navcast Inc. and WSI Corporation from any problems that occur from this ser- vice.
Page 191: Navcenter Weather
11. WEATHER 11.2 NavCenter Weather You can download the NavCenter data from the internet via Wireless LAN. See section 1.22 for how to connect to the internet. Note: Data which is downloaded by a TZT unit can be shared with other TZT units via the network.
Page 192: How To Download The Navcenter Data
11. WEATHER 7. Select [Duration of Animation]. Duration of Animation 0’45s 0’10s 0’15s 0’20s 0’30s 0’45s 8. Select the update interval for the animation. The larger the time, the slower the animation moves. 11.2.2 How to download the NavCenter data 1.
Page 193: How To Display The Navcenter Data
11. WEATHER 9. If you selected [ON] for [Sea Surface Temperature], set the following menu items. [Weather Color Transparency]: Adjust the degree of transparency for the weather overlay. Use a large figure to increase the degree of transparency. [Auto SST Color Scale]: Activate this feature to adjust the SST color scale auto- matically according to the sea surface temperature.
Page 194: How To Load A Weather File
11. WEATHER 1. Select [Wx Data] from the RotoKey menu on the weather display. 2. Select a menu item to display its data. 3. Repeat steps 1 and 2 to select all menu items desired. 4. Select [Anim Forecast] from the RotoKey menu. The animation forecast is dis- played for a specified-day period.
Page 195: Sirius Weather
11. WEATHER 11.3 Sirius Weather Sirius weather radar information and advanced weather information are available in North America with connection of the Sirius Weather Receiver BBWX2. 11.3.1 Pre-settings 1. Select [Menu] on the menu icon bar to open the main menu. 2.
Page 196: How To Display The Sirius Data
11. WEATHER Precipitation indication on CanadianRadar Weather radar color Level (mm per hour) Transparent (low precipitation) 0.00 to 0.20 mm/hr Light green 0.21 to 1.00 mm/hr Medium green 1.01 to 4.00 mm/hr Dark green 4.01 to 12.00 mm/hr Yellow 12.01 to 24.00 mm/hr Orange 24.01 to 50.00 mm/hr Light red...
Page 197: Weather Icons (Sirius Weather)
11. WEATHER 3. Repeat steps 1 and 2 to select all menu items desired. [Anim Radar] (Animation radar) The animation radar display provides the past weather radar information. To show the animation radar display, select [Anim Radar] from the RotoKey menu. To stop the an- imation display, select [End Anim] at the top right-hand corner of the screen.
Page 198: Weather Data (Navcenter Or Sirius)
11. WEATHER Icon Meaning Storm tracks Surface pressure etc. 11.5 Weather Data (NavCenter or Sirius) The table below shows the weather data available for displaying according to weather data server (NavCenter or Sirius). Items NavCenter Sirius Item NavCenter Sirius Wind Currents Waves Altimetry...
Page 199 11. WEATHER [Waves]: The waves forecast dis- plays wave height with color. 0 foot (minimum) is displayed in light blue, 35 feet (maximum) in red. [SST] (Sea surface temperature): This data layer shows the temper- ature of the sea surface in shades.
Page 200 11. WEATHER [Pressure]: The pressure forecast displays surface pressure. 1 0 2 0 Pressure icon Meaning High pressure Low pressure Warm front Cold front Occluded front Stationary front Trough Squall line Dry line Isobars 1010 [500mb]: The 500mb forecast dis- plays the contour lines over 500 11-11...
Page 201 11. WEATHER [Air Temp]: The air temp forecast displays the air temperature by color. -45°C (-49°F) (minimum) is displayed in dark violet, 45°C (113°F) (maximum) is displayed in red. [Currents]: The current forecast displays the tidal current speed and direction by blue arrow. The darker the blue, the faster the cur- rent speed (0 to 2 kn).
Page 202 11. WEATHER [City]: The city weather forecasts are available where city icons are shown. Select a city icon ( ) to display the city information. [Storm]: The storm cast icon ( ) shows the direction and speed of a storm when the icon is selected.
Page 203: Weather Reports
11. WEATHER [Storm Tracks]: The storm track icons show major storms in your area. These storms include tropical disturbances, depressions, storms and cyclones, hurricanes, ty- phoons and super typhoons. These symbols are displayed in three different colors: gray (historical), red (current), and orange (forecast). Storm track icons Meaning Hurricane (Category 1-5)
Page 204: Automatic Identification System (Ais)
12. AUTOMATIC IDENTIFICATION SYSTEM (AIS) 12.1 AIS Introduction AIS is a system that continuously transmits the identification and position of your ship to other nearby ships. All such ships also receive data from other AIS equipped ships and display their positions and other relevant information. The AIS broadcasts this in- formation over a VHF transceiver.
Page 205: Proximity Ais Target Alarm
12. AUTOMATIC IDENTIFICATION SYSTEM (AIS) Target Symbol Description type Lost AIS An AIS target becomes a lost target target if a signal is not re- ceived from the AIS target for x* minutes. The lost target Color - AIS target: Blue for the Class A AIS symbol is erased if a signal is : Green for the Class B AIS not received for an additional...
Page 206: How To Ignore The Ais Targets
12. AUTOMATIC IDENTIFICATION SYSTEM (AIS) 12.5 How to Ignore the AIS Targets In the default setting, all AIS targets within 12 NM* from your ship are shown on the display. Slow-moving targets within the AIS proximity alarm range cause frequent vi- olation of the alarm.
Page 207: How To Display The Target Data
12. AUTOMATIC IDENTIFICATION SYSTEM (AIS) 12.6 How to Display the Target Data Select an AIS target to display the simple information. To get the detailed information, select an AIS target to display the pop-up menu then select [Info]. The detailed infor- mation display can also be shown by selecting the simple information display.
Page 208: Ais List
12. AUTOMATIC IDENTIFICATION SYSTEM (AIS) 12.8 AIS List How to open the AIS list 1. Select [Lists] on the menu icon bar to open the lists menu. 2. Select [AIS List]. AIS List AIS List DSC List ARPA List The data for the AIS dangerous targets are displayed in red. How to display the detailed information for AIS 1.
Page 209: How To Register An Ais Or Dsc To The Buddies List
12. AUTOMATIC IDENTIFICATION SYSTEM (AIS) 2. Select [Detail]. 3. Select [Close] to close the [Target Info] window. 4. Select [Close] to exit the menu. How to find an AIS target on the chart display 1. Select the AIS target to find on the AIS list. 2.
Page 210 12. AUTOMATIC IDENTIFICATION SYSTEM (AIS) 3. Select [Buddies List (AIS & DSC)]. 4. Select [Add] to open the numeric software keyboard. 5. Enter the MMSI number then select [Confirm]. 6. Select [Nickname] to open the alphabetical software keyboard. 7. Enter the nickname then select [Confirm]. 8.
Page 211 12. AUTOMATIC IDENTIFICATION SYSTEM (AIS) How to delete an entry from the buddies list 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select the [Targets] - [Buddies List (AIS & DSC)] menu. 3. Select the [MMSI] field in the AIS or DSC to delete then select [Remove]. 4.
Page 212: 13. How To Adjust Settings
13. HOW TO ADJUST SETTINGS After you understand the basic operation procedures of your equipment, you can set the equipment according to your needs. • Set the equipment according to your system configuration. • Change how the equipment operates and displays information. All the adjustments are done from the menu.
Page 213 Echo Trail Show or hide echo trail. Clear Trail Clear echo trails and restart with new echo trails. Display NavData Open the data boxes. (TZT9/TZT14 only) Menu Open the main menu. Lists Open the lists. Tide Open the tide graph. 13-2...
Page 214 Show or hide tide icons. Currents Show or hide tidal currents. Points Show or hide points and event marks. Display NavData Open the data boxes. (TZT9/TZT14 Menu Open the main menu. only) Lists Open the lists. Tide Open the tide graph.
Page 215 Clear lost ARPA targets. Active Rte Show or hide active route. CPA Alarm Activate or deactivate CPA alarm. Display NavData Open the data boxes. (TZT9/TZT14 Menu Open the main menu. only) Lists Open the lists. Tide Open the tide graph.
Page 216 Show or hide bottom discrimination and DFF1-UHD) display. Event Put an event mark. Display NavData Open the data boxes. (TZT9/TZT14 only) Menu Open the main menu. Lists Open the lists. Tide Open the tide graph. Menu items available in the camera mode...
Page 217 13. HOW TO ADJUST SETTINGS Control label Function Base Full Level 1 Level 2 Input 2* Display the image for input 2 from second axis server 241Q. Input 3* Display the image for input 3 from second axis server 241Q. Input 4* Display the image for input 4 from second axis server 241Q.
Page 218 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select the [General] - [RotoKeys] menu. RotoKeys Base Base Full 3. Select [Base] or [Full]. 4. Select [Close] to exit the menu. TZT9/TZT14: The [Full] set can be always selected by long pushing the RotoKey 13-7...
Page 219: How To Set The Display Selection Window
13. HOW TO ADJUST SETTINGS 13.2 How to Set the Display Selection Window The section 1.5 shows how to arrange the display selection window to your liking. The default display selection window provides seven displays in configurations according to the equipment that you have in your network. If the arrangement does not meet your requirements, you can change the configurations as necessary.
Page 220 13. HOW TO ADJUST SETTINGS 3. Select [+] for [Add a new screen]. Custom display area Display division Possible displays 4. Drag the desired display division (full-screen, two-way or three-way) to the custom display area. 5. Drag the desired display from the possible displays to the custom display area. 6.
Page 221: General And Units Menus
13. HOW TO ADJUST SETTINGS 13.3 General and Units Menus The [General] menu of the main menu includes the RotoKeys settings, data boxes set- tings, key beep, etc. The [Units] menu sets units of measurement for range, depth, height, speed, etc. [General] menu RotoKeys Base...
Page 222 [RotoKeys] Select the RotoKey menu to show with a short [Base], [Full] press of the RotoKey (for TZT9/TZT14) or short tap (for TZTBB). See section 13.1. [Function Ges- Select the function to do by tapping the screen [None], [Screen Capture], ture] with two fingers (see section 1.15).
Page 223 13. HOW TO ADJUST SETTINGS Menu item Function Options [Check for Soft- Update the software version. ware Update] [Reset Default Restore default settings for the [General] menu. Settings] *: In the demo displays, you can move the position for the boat icon to the position tapped.
Page 224 13. HOW TO ADJUST SETTINGS [Units] menu description Menu item Options [Bearing Display] [Magnetic], [True] The mode (magnetic or true) of all heading and bearing data. [True Wind Calculation [Ground], [Surface] Reference] Select wind value to display from speed over ground or speed through water (surface).
Page 225 13. HOW TO ADJUST SETTINGS This page is intentionally left blank. 13-14...
Page 226: Maintenance, Troubleshooting
14. MAINTENANCE, TROUBLE- SHOOTING This chapter has information about maintenance and troubleshooting that the user can follow to care for the equipment. NOTICE WARNING Do not apply paint, anti-corrosive ELECTRICAL SHOCK HAZARD sealant or contact spray to plastic Do not open the equipment. parts or equipment coating.
Page 227: Life Of The Parts
A wrong fuse can damage the equipment and cause fire. Name Type Code No. Remarks Fuse FGBO-A 125V 4A PBF 000-155-851-10 For TZT9/TZTBB, 24 VDC Fuse FGBO 125V 7A PBF 000-155-831-10 For TZT9, 12 VDC Fuse FGBO-A 125V 5A PBF 000-155-853-10 For TZT14, 24 VDC...
Page 228 LCD replacement (for TZT9/TZT14) The life of the LCD is approximately 18,000 hours for TZT14, 25,000 hours for TZT9. The actual number of hours depends on ambient temperature and humidity. When the brilliance cannot be raised sufficiently, contact your dealer about replacement of the LCD.
Page 229: Troubleshooting
14. MAINTENANCE, TROUBLESHOOTING 14.3 Troubleshooting This section provides simple troubleshooting procedures which the user can follow to restore normal operation. If you cannot restore normal operation, do not check inside the unit. Have a qualified technician check the equipment. 14.3.1 General troubleshooting Problem Remedy...
Page 230: Chart Plotter Troubleshooting
14. MAINTENANCE, TROUBLESHOOTING 14.3.3 Chart plotter troubleshooting Problem Remedy Position is not fixed. Check that antenna connector is fastened and navigator is cor- rectly connected. The track of your ship is not Check that the track is turned on. Select the [Overlay] - [Tracks] plotted.
Page 231 14. MAINTENANCE, TROUBLESHOOTING This page is intentionally left blank. 14-6...
Page 232: Appendix 1 Menu Tree
APPENDIX 1 MENU TREE Bold: Default setting Menu General RotoKeys (Base, Full) Function Gesture (None, Screen Capture, Event, MOB, Home, Menu, Lists, Tide, Fusion, Fusion Ctrl) Connect to the Internet (Never, At Startup, When Necessary) Wireless LAN Settings (Open the dialog box for Wireless LAN settings.) Allow Remote Control (Off, View Only, Full Control) Local Time Offset (UTC - 12:00 to UTC + 13:00) Synchronize Time with GPS (ON, OFF)
Page 233 APPENDIX 1 MENU TREE Points Display Points Names (ON, OFF) Default Point Symbol (Select the default icon for point.) Default Point Color (Red, Blue, Green, Yellow, Magenta, Orange, Cyan, Black & White) Point Size (50 - 200; 100%) Icons Set (Classic, Modern) Data to Be Recorded in Event Comment (None, Date, SST, Date And SST) Add Screen Capture to Event (ON, OFF) Event Configuration (Open the dialog box for event symbol and color settings.)
Page 234 APPENDIX 1 MENU TREE S-52 S-52 Vector Chart Display Mode (Custom, Base, Standard, Other, Fishing) Display Unknown Object (ON, OFF) Chart Data Coverage (ON, OFF) Water and Seabed Features (ON, OFF) Traffic Routes (ON, OFF) Information Areas (ON, OFF) Buoys & Beacons (ON, OFF) Lights (ON, OFF) Fog Signals (ON, OFF) Radar (ON, OFF)
Page 235 APPENDIX 1 MENU TREE Radar Radar Source (Select the antenna host name.) Day Background Color (Black, Dark Blue, White) Night Background Color (Black, Dark Blue) Echo Color (Multicolor, Green, Yellow) Sweep Fade (ON, OFF) Rings Interval (Auto, 1, 2, 3, 4, 5, 6, 7, 8, 9) Bearing Scale Mode (Relative, True) EBL Reference (True, Relative) Own Ship Icon (ON, OFF)
Page 236 APPENDIX 1 MENU TREE Sounder Fish Finder Source (DFF1/BBDS1, DFF3, FCV1150, DFF1-UHD) Day Background Color (White, Light Blue, Black, Dark Blue) Night Background Color (Black, Dark Blue) Echo Color Levels (8 Colors, 16 Colors, 64 Colors) A-Scope Peak Hold (ON, OFF) Zoom Reference Lines (ON, OFF) High Resolution (ON, OFF) Picture Advance (4/1, 2/1, 1/1, 1/2, 1/4, 1/8, 1/16, Stop)
Page 237 APPENDIX 1 MENU TREE Alarm Hardware Alarm (ON, OFF) XTE Alarm (ON, OFF) Depth Alarm (ON, OFF) Depth Alarm Value (30 ft) Sea Surface Temperature Alarm (Off, Over, Under, Within, Out of) ° Temperature Alarm Value (70.00 ° Temperature Alarm Range Minimum Value (60.00 °...
Page 238 APPENDIX 1 MENU TREE Camera Video Display (Stretch, Fit) Analog Camera 1 or 2 Video Format (PAL, NTSC) NickName (Camera 1 (or 2)) IP Camera 1 to 4 NickName (IP Camera 1 to 4) IP Camera (172.31.200.3 to PTZ Control (ON, OFF) Axis Server 241Q/Second Axis Server 241Q Server 241Q (ON, OFF) IP Server...
Page 239: Appendix 2 Radio Regulatory Information
APPENDIX 2 RADIO REGULATORY INFORMATION Wireless Interoperability This product is designed to be interoperable with any wireless LAN product that is based on direct sequence spread spectrum (DSSS) and orthogonal frequency division multiplexing (OFDM) radio technology and to comply with the following standards. •...
Page 240 APPENDIX 2 RADIO REGULATORY INFORMATION USA-Federal Communications Commission (FCC) Below are descriptions for built-in Wireless LAN module. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 241 APPENDIX 2 RADIO REGULATORY INFORMATION Canada-Industry Canada (IC) Below are descriptions for built-in Wireless LAN module. This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired op- eration of this device.
Page 242: Specifications
FURUNO TZT9 SPECIFICATIONS OF MULTI FUNCTION DISPLAY TZT9 GENERAL Display 9-inch wide color LCD, 196.8 x 118.08 mm Resolution 800 x 480 dots (WVGA) Indication system Raster-scan, non-interlace, Horizontal: 31.7kHz, Vertical: 60Hz Brightness 900 cd/m typical Display colors 262,144 colors (plotter), 64 colors (echo), 16 colors (radar)
Page 243 FURUNO TZT9 SD card slot 2 slots Line out 1 port Wireless LAN IEEE802.11b/g/n Transmitting frequency 2.412 to 2.462 GHz Output power 12 dBm max. NMEA0183 (Ver2.0) sentences (Ethernet) Input/Output CUR, DPT, GGA, GSA, GSV, HDG, HDT, MDA, MTW, MWV,...
Page 244 FURUNO TZT14 SPECIFICATIONS OF MULTI FUNCTION DISPLAY TZT14 GENERAL Display 14.1-inch wide color LCD, 303.36 x 189.6 mm Resolution 1280 x 800 dots (WXGA) Indication system Raster-scan, non-interlace, Horizontal: 49.4kHz, Vertical: 59.92Hz Brightness 900 cd/m typical Display colors 262,144 colors (plotter), 64 colors (echo), 16 colors (radar)
Page 245 FURUNO TZT14 SD card slot 2 slots Line out 1 port Wireless LAN IEEE802.11b/g/n Transmitting frequency 2.412 to 2.462 GHz Output power 12 dBm max. NMEA0183 (Ver2.0) sentences (Ethernet) Input/Output CUR, DPT, GGA, GSA, GSV, HDG, HDT, MDA, MTW, MWV,...
Page 246 FURUNO TZTBB SPECIFICATIONS OF MULTI FUNCTION DISPLAY TZTBB EXTERNAL MONITOR SPECIFICATIONS (REQUIRED) Display screen Color LCD with touch panel control Resolution 1920 x 1200 dots max. Horizontal resolution: 1280 or more recommended Maximum frequency 165 MHz, DVI single link Signal interface Picture: DVI-D, VESA DDC, ®...
Page 247 FURUNO TZTBB CAN bus 1 port (LEN=1) 6 ports, USB2.0 (includes 1 port for wireless LAN module) Video output 2 ports, DVI-D, VESA DDC Video input 2 ports, NTSC/PAL SD card slot 2 slots (SDXC applicable) Line out 1 port Wireless LAN IEEE802.11b/g/n...
Page 248: Index
INDEX Numerics Bottom zoom display ......... 7-4 Buddies list..........12-6 3D display description ..........3-1 exaggeration ........... 3-2 Camera/Video cycling inputs........... 9-5 cycling period .......... 9-5 ACCU-FISH image adjustment ........9-6 considerations ........7-13 image size ..........9-4 setting............ 7-14 input source..........
Page 249 INDEX Fan replacement ........14-3 Menu tree ..........AP-1 FAR-2xx7 series ........6-19 MOB ............1-24 FAX-30 .............1-27 Multiple chart displays........2-7 FCV-1150..........7-19 File format ..........8-2 NAVpilot-700 series .........2-21 Files menu ..........8-1 Notification Fish finder alarm end of route ..........5-14 activating/deactivating......7-12 waypoint arrival ........5-14 sensitivity..........7-13 setting.............7-11 Orientation mode Fish finder operation...
Page 250 INDEX following ..........5-8 fish finder..........14-5 following in reverse direction ....5-12 general ..........14-4 inserting route points ....... 5-3 radar ............14-4 joining points ........... 5-7 Tuning ............6-1 list............5-5 TVG............7-11 moving route points ......... 5-3 removing points ........
Page 251 When a claim is made, FURUNO has a right to choose whether with other electronic devices. The imported product may also be to repair the product or replace it.
Page 252 24 months from installation date provided the work is done by Furuno U.S.A., Inc. or an AUTHORIZED Furuno dealer during normal shop hours and within a radius of 50 miles of the shop location.

This manual is also suitable for:

Tztbb Tzt14

Furuno TZT9 Operator's Manual

Foreword

System Configuration

1 System Introduction

2 Chart Plotter

500 D Display, Overlays

4 Points

5 Routes

6 Radar

7 Fish Finder

8 File Operations

9 CAMERA/VIDEO/FUSION-Link

10 Instrument Display

11 Weather

12 Automatic Identification System (Ais)

13 How to Adjust Settings

14 Maintenance, Troubleshooting

Appendix 1 Menu Tree

Quick Links

Troubleshooting

Related Manuals for Furuno TZT9

Summary of Contents for Furuno TZT9
