Figure 3-2 Bottom Of The H3C Secpath F100-C Chassis - H3C SecPath F100-C Installation Manual

Installation Manual
H3C SecPath F100-C Firewall
Caution:
Make sure the screws are firm enough to hold the H3C SecPath
F100-C.
Mount the H3C SecPath F100-C to such a height that you can
easily observe the LEDs status.
Fix the external power cable of the H3C SecPath F100-C from
dropping down.
Follow these steps to mount the H3C SecPath F100-C on a
vertical surface:
Step 1: Install four pan-head screws on a wall or other flat vertical
surface and ensure that each screw comes 6 mm (0.2 in) out of the
wall.

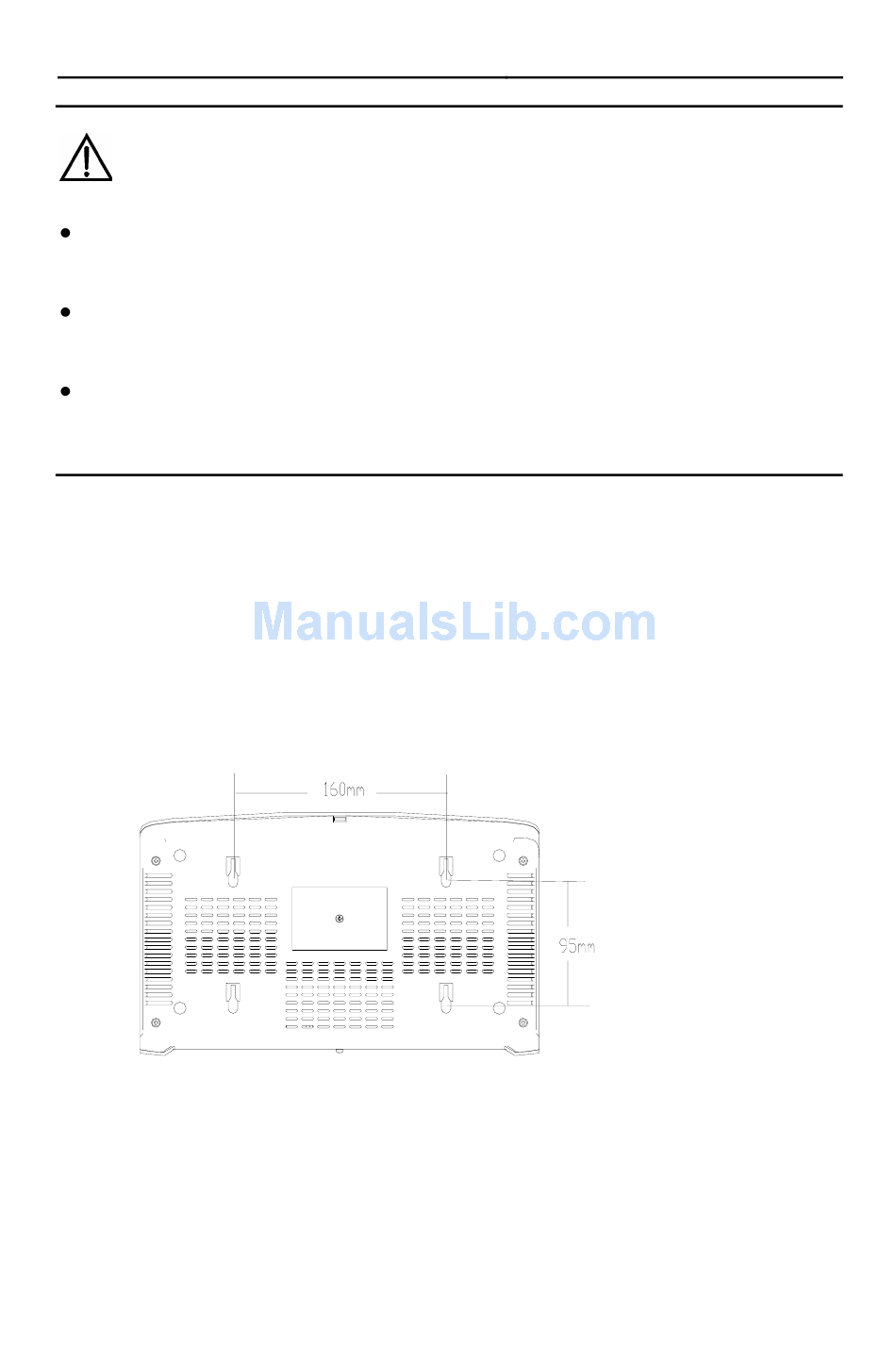

Figure 3-2 Bottom of the H3C SecPath F100-C chassis

Step 2: Hang the H3C SecPath F100-C on the screws by the four
brackets.
Chapter 3 Installing the
3-3
