Programming the Opener

Step 6.1 - Setting Travel Limits
NOTE: If PE Beams are to be used they must be installed
before setting the travel limits.
WARNING! Use caution when operating the manual
release with the door open since it may fall rapidly
due to weak or broken springs, or an improperly
balanced door.
CAUTION! Do not disengage the opener to manual
operation with children, persons or any objects
including motor vehicles within the doorway.
NOTE: To access the console, remove the controls lid
cover and reattach when setup is completed.

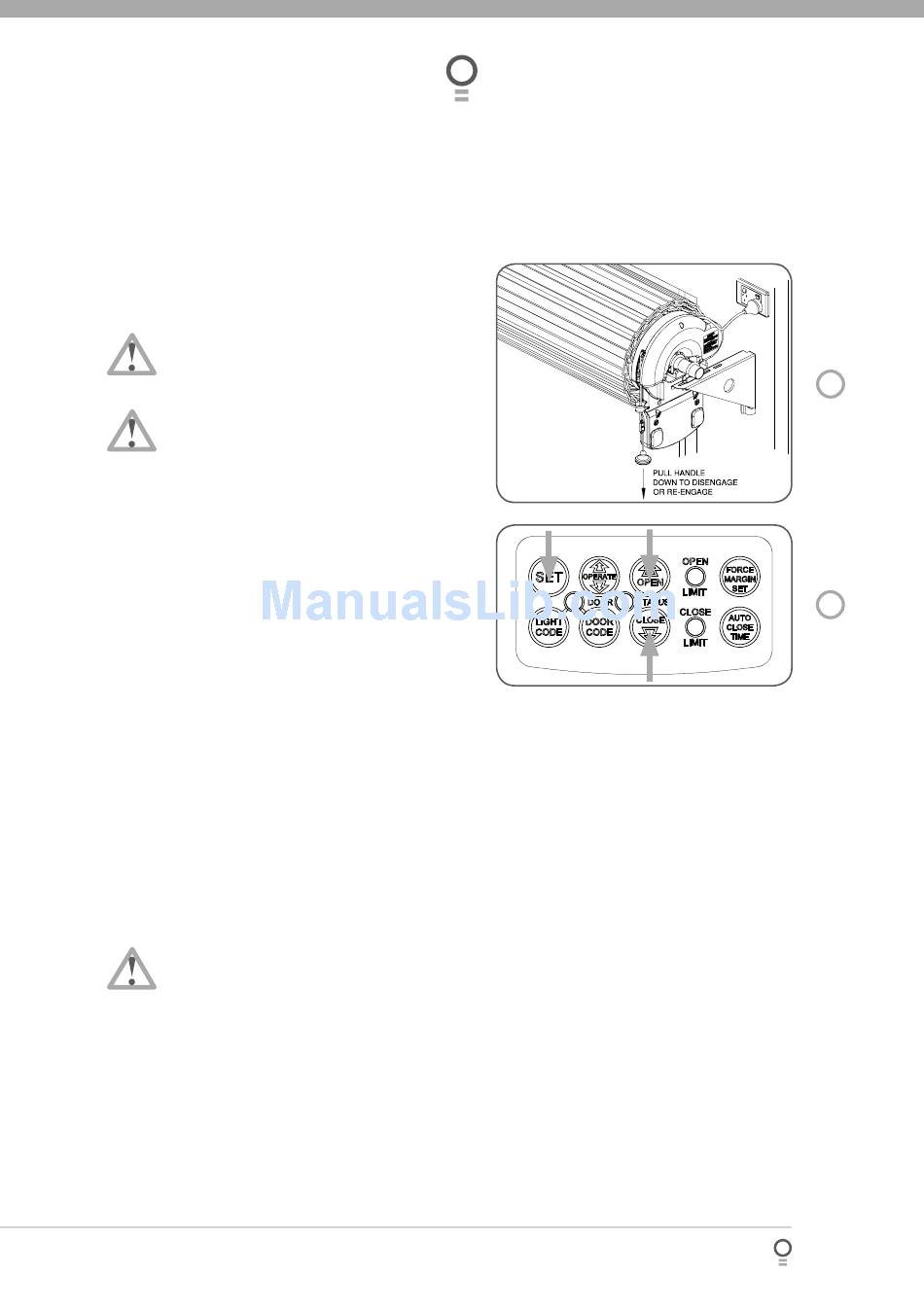

a. Move the door to halfway open. If necessary,
disengage the opener by pulling the cord down (Fig.
11).
b. Re-engage the opener by pulling the cord down.
c. Turn on the power to the opener. The CLOSE LIMIT
LED will be fl ashing.
d. Press and hold the CLOSE button - the door should
start closing (Fig. 12).
e. If the door opens, release the CLOSE button and
press the OPERATE button once to change the
motor's direction. Press the CLOSE button again to
close the door.
f. Release the CLOSE button when the door is near the
desired closed position. Single presses of the CLOSE
button will "inch" the door closed.
g. If the door overshoots, press the OPEN button to
move the door in the open direction.
h. When the door is at the desired close position, press
the SET button to record the close limit position. The
OPEN LIMIT LED will now fl ash.
i. Press and hold the OPEN button to open the door.
j. Release the OPEN button when the door is near the
desired open position. Single presses of the OPEN
button will "inch" the door open.
k. If the door overshoots, press the CLOSE button to
move the door in the close direction.
WARNING! Once the next step is performed, the
door will automatically close and open to calculate
force settings. Keep persons and objects clear of the
door until it stops and the opener sounds a beep.
l. Press the SET button to store the open limit. Please
read the above warning.
Step 6.2 - Resetting Travel Limits
To reset the limits, press and hold the CLOSE button for 6
seconds until the CLOSE LIMIT LED fl ashes quickly. If no
action is taken within 30 seconds, the opener will return
to normal operating mode and restore the original limit
settings.
Owner Installation Instructions GDO-6v3 EasyRoller
fi g 11
fi g 12
®
