Summary of Contents for Automatic Technology GDO-6 EasyRoller

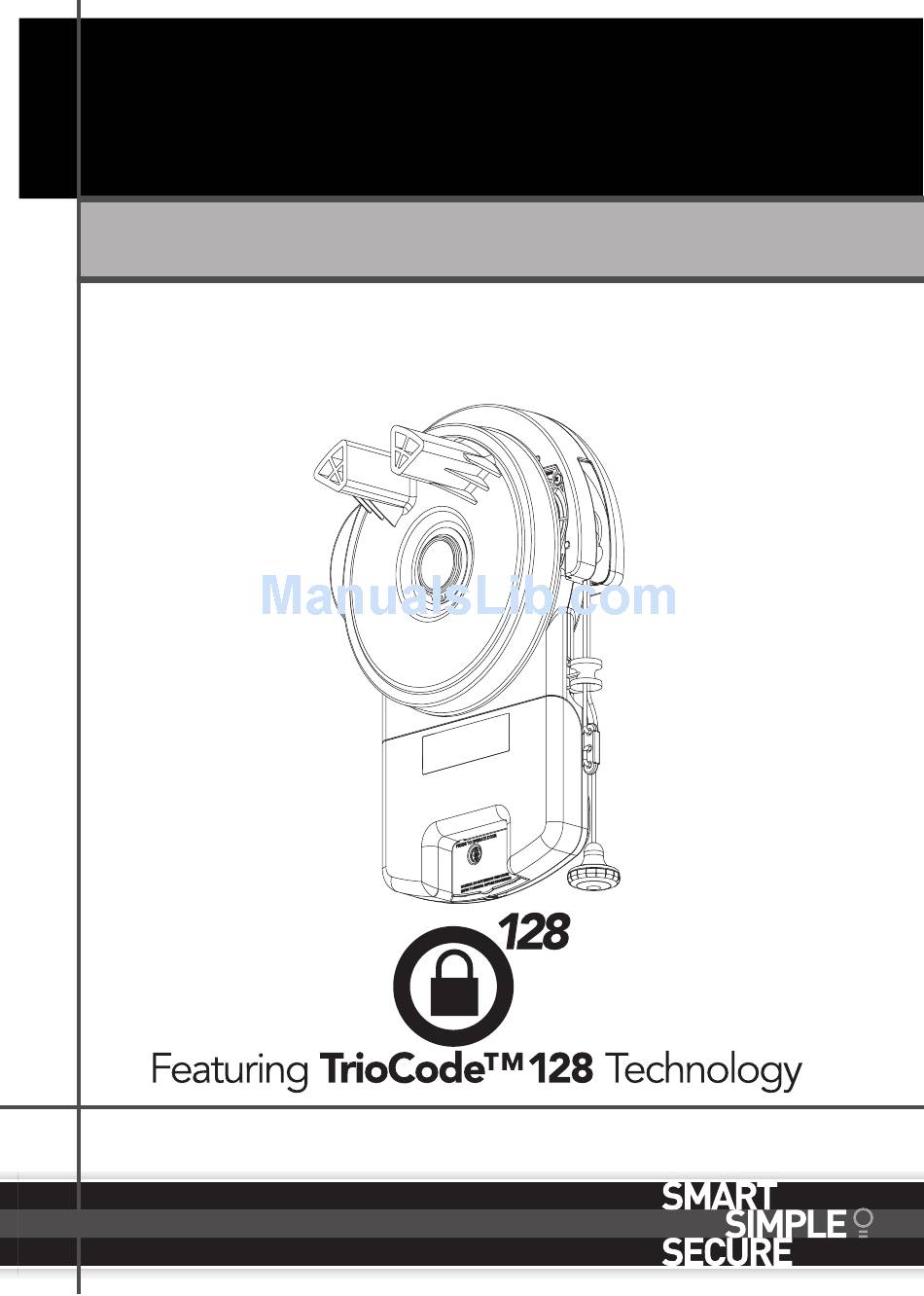

- Page 1 GDO-6 EasyRoller GDO-6 EasyRoller ® ® Roll Up Garage Door Opener Home Owner’s Manual Doc #: 160005_01 Part #: 13368 Released: 05/0314...
-
Page 2: Table Of Contents
® GDO-6 EasyRoller Home Owner’s Manual Table of Contents 1. Safety Rules 2. Features 3. Specifications 4. Operating your door 5. User Operating Controls 6. Manual Release / Security 6.1 Manual Door Operation 6.2 Emergency Evacuations 6.3 Power Failure 6.4 Re-Engaging the Opener 6.5 Security - Inbuilt Locking Facility... -
Page 3: Safety Rules
Call for a professional garage door service. Automatic Technology (Australia) Pty Ltd to the extent that such may be lawfully excluded hereby expressly disclaims all conditions or warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of a Automatic Technology (Australia) Pty Ltd Garage Door Opener. Automatic Technolofy (Australia) Pty Ltd hereby further expressly excludes all or any liability for any injury, damage, cost, expense or claim whatsoever suffered by any person as a result whether directly or indirectly from failure to install the Automatic Technology ( Australia) Pty Ltd Garage Door Opener in accordance with the installation instructions. -
Page 4: Features
® GDO-6 EasyRoller Home Owner’s Manual 2. Features Warranty Service Indicator Two (2) year/5,000 cycles full parts and labour The opener has a built in service counter. From warranty on motor, electronics and mechanical factory this is loaded with 3000 cycles. When this... -
Page 5: Specifications
® GDO-6 EasyRoller Home Owner’s Manual 3. Specifications Technical Specifications Power supply 230V - 240Va.c. 50Hz Maximum door opening: Width: 5500mm (16.5 m Height: 3000mm Weight: 100kg Minimum sideroom 40mm Lift force 500N (50kg) Nominal force 150N (15kg) Receiver type... -
Page 6: Operating Your Door
® GDO-6 EasyRoller Home Owner’s Manual 4. Operating your door For maximum efficiency of your opener, your garage door must be in good operating condition. An annual service of your garage door by a Dealer is recommended. CAUTION: Activate the opener only... -
Page 7: User Operating Controls
® GDO-6 EasyRoller Home Owner’s Manual 5. User Operating Controls Button (Fig 5.1) Function 1. OPERATE Opens/stops/closes the door 2. CODING LED (Red) Flashes when a code is being stored or when the transmitter button is pressed 3. LIGHT CODE (White) Is used for storing or erasing the transmitter button (code) you wish to use to switch the courtesy light on the opener on or off. -
Page 8: Manual Release / Security
® GDO-6 EasyRoller Home Owner’s Manual 6. Manual Release / Security 6.1 Manual Door Operation WARNING! When operating the To disengage the opener from the door (preferably manual release (while the door is with the door in the closed position), pull down on... -
Page 9: Safety Testing
® GDO-6 EasyRoller Home Owner’s Manual 7. Safety Testing 7.1 Test the Close Cycle CAUTION: Take care when a. Press the transmitter to open the door. (Fig 7.1) completing a safety test. Failure b. Place a piece of timber approximately 40mm high to follow this warning can result (Fig 7.2) -
Page 10: Coding Transmitters
® GDO-6 EasyRoller Home Owner’s Manual 8. Coding Transmitters 8.1 Setting the Transmitter to Operate the Door ELECTROCUTION! The button The opener can only operate from transmitters that have cover is the only cover that should been programmed into its receiver. The receiver needs to be removed. -
Page 11: Setting The Transmitter To Operate The Courtesy Light
® GDO-6 EasyRoller Home Owner’s Manual 8. Coding Transmitters 8.4 Setting the Transmitter to Operate the Courtesy Light Although the courtesy light comes on with each operation of the opener, it may also be controlled by a transmitter without operating the door. -
Page 12: Troubleshooting Guide
® GDO-6 EasyRoller Home Owner’s Manual 9. Troubleshooting Guide Symptom Possible cause Remedy The opener does Garage door in poor condition e.g. Check the door’s operation - see not work from the springs may be broken monthly maintenance (Section 10.1) -
Page 13: Troubleshooting
® GDO-6 EasyRoller Home Owner’s Manual 9. Troubleshooting Guide Symptom Possible cause Remedy The door stops or moves The batteries may have little to Connect mains power and leave the very slowly under battery no charge batteries to charge. The batteries... -
Page 14: Maintenance
® GDO-6 EasyRoller Home Owner’s Manual 10. Door Maintenance 10.1 Door Maintenance WARNING! Failure to maintain your Whilst your opener does not require any periodic garage door may void the warranty maintenance, the door that it is fitted to, does. Your on your garage door opener. -
Page 15: Opener Maintenance
® GDO-6 EasyRoller Home Owner’s Manual 10. Opener Maintenance 10.4 Opener Maintenance To ensure a long and trouble free life for your opener the following is recommended: • Monthy: Run the Safety Testing procedures in Section 7 to ensure garage door is fit for use. -
Page 16: Warranty
Address:_____________________________________Installed by:__________________________________ Installed on (date):____________________________Invoice No:__________________________________ This Warranty is given by Automatic Technology (Australia) Pty Ltd (ABN 11 007 125 368) (ATA), 6-8 Fiveways Boulevard, Keysborough 3173, 1300 133 944, sales@ata-aust.com.au 2. The Competition and Consumer Act 2010 (including the Australian Consumer Law) and other relevant statutes provide a set of statutory consumer guarantees and other legal rights that cannot be excluded, restricted or modified by contract. - Page 17 ® GDO-6 EasyRoller Home Owner’s Manual 11. Warranty 10. This Warranty excludes damage resulting from: (a) normal wear and tear; (b) accidental damage; (c) incorrect installation of the Product; (d) blown fuses, electrical surges, power surges or power spikes; (e) theft, fire, flood, rain, water, lightning, storms or any other acts of God;...
-
Page 18: Optional Accessories
® GDO-6 EasyRoller Home Owner’s Manual 12. Optional Accessories There are a range of additional accessories for your added convenience and security. Contact your dealer for installation of these accessory items. Safety Beams • - Provides additional protection if the door is closing onto your property or person. -
Page 19: Service Schedule
GDO-6 EasyRoller Home Owner’s Manual 13. Service Schedule Year / Date Details Approx. Cycles 1 / 3,000 2 / 6,000 3 / 9,000 4 / 12,000 5 / 15,000 Automatic Technology (Australia) Pty Ltd Phone: 1300 133 944 Website: www.automatictechnology.com.au... - Page 20 Is your Opener beeping and flashing? It may be time for a service (for more details see section 10) For a service contact your dealer using the details below... Dealer:...
