Final Setup

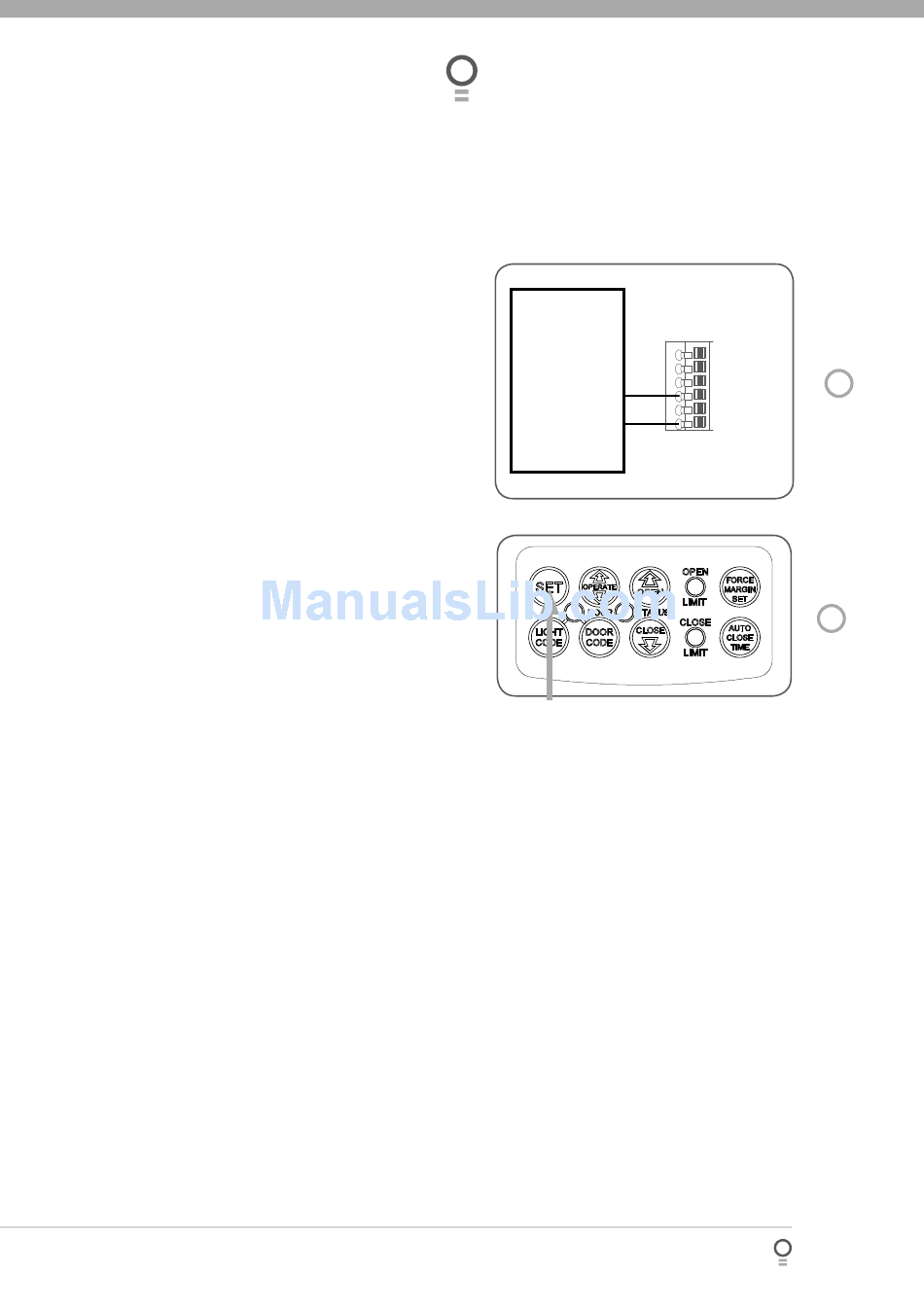

Step 20 - Auxiliary Output
The auxiliary output can be used to control alarm or
another garage door opener. A valid transmission
from the pre-coded transmitter will cause the auxiliary
output to pulse for approximately 1 (one) second. The
maximum DC voltage must not exceed 35 volts DC.
Maximum current must not exceed 80 ma.(Fig. 34).
Step 21 - Reset all Factory Defaults
a.
Turn power to the opener off.
b.
Press and hold the SET Button (Fig 35).
c.
Turn power on while holding the SET button.
Continue to hold until all LED's are off.
d.
This will not erase transmitter codes stored in
memory.
External
device
Alarm, Door
opener etc.
Owner Installation Instructions
GDO-6v3 EasyRoller
PWR
PE
PE ( 0V )
fi g
34
GND
OSC
AUX OUT
fi g
35
®
