Safety Obstruction Force

WARNING! Take care when testing or adjusting
the Safety Obstruction Force. Excessive force
may cause SERIOUS PERSONAL INJURY and/or
PROPERTY DAMAGE.
WARNING! Photo Electric Beams must be
installed where the closing force as measured
on the bottom of the door is more than 400N
(40kgf)

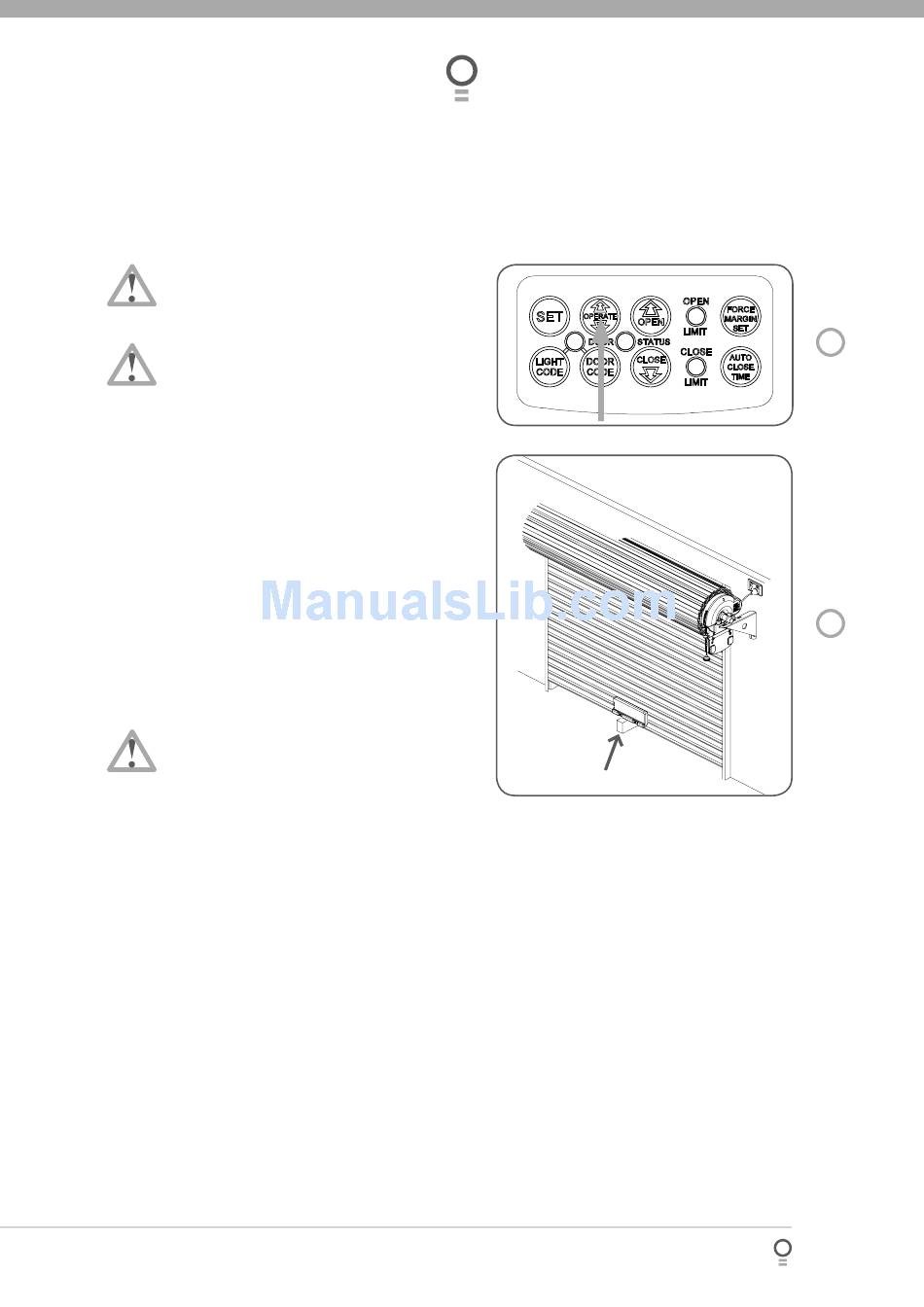

Safety Obstruction Force Test
Step 8.1 - Testing Close Cycle
a.
Press the OPERATE button to open the door (Fig.
15).
b.
Place a piece of timber approximately 40mm high
on the fl oor directly under the door (Fig. 16).
c.
Press the OPERATE button to close door. The door
should strike the object and start to re-open.
Step 8.2 - Testing Open Cycle
a.
Press the OPERATE button to close the door (Fig.
15).
b.
Press again to open the door. When the door
reaches the half open point, grab the bottom rail of
the door fi rmly and the door should stop.
c.
If the door does not reverse readily when closing,
or stop when opening, the force may be excessive
and need adjusting, refer below.
DANGER! If the door fails these tests, put the
opener into manual mode, only operate the door
by hand and call for service.
Wood (40mm high)
Owner Installation Instructions
GDO-6v3 EasyRoller
fi g
15
fi g
16
®
