- Page 1 GDO-6v4 EasyRoller ® Roll Up Garage Door Opener Featuring TrioCode ™ Technology Technical Document Installation Manual 1.00 19 July 2012 English Part # 13238 (Manual) INSTALLATION INSTRUCTIONS | OWNERS COPY...
- Page 2 Automatic Technology (Australia) Pty Ltd Roll Up Door Opener in accordance with these installation instructions.
-
Page 3: Table Of Contents
GDO-6v4 EasyRoller ® Roll Up Garage Door Opener Important Safety Instructions Features Operating Controls Package Contents Installation Programming the Opener Safety Obstruction Force Coding Transmitters Deleting Transmitter Codes Accessories Wired Safety Beams Installation Auto-Close Final Setup Setting of Courtesy Light Time... -
Page 4: Important Safety Instructions
For ADDITIONAL SAFETY protection we STRONGLY recommend the fi tting of a Safety Beam. In most countries, Safety Beams are mandatory on all garage doors fi tted with automatic openers. For a small additional outlay, Automatic Technology recommends that Safety Beams be installed with the automatic opener ensuring additional safety and peace of mind. - Page 5 If the power supply cord is damaged, it must be replaced by an Automatic Technology service agent or suitably qualifi ed person. Make sure that the door is fully open before driving in or out of the garage and fully closed before leaving the driveway.
-
Page 6: Features

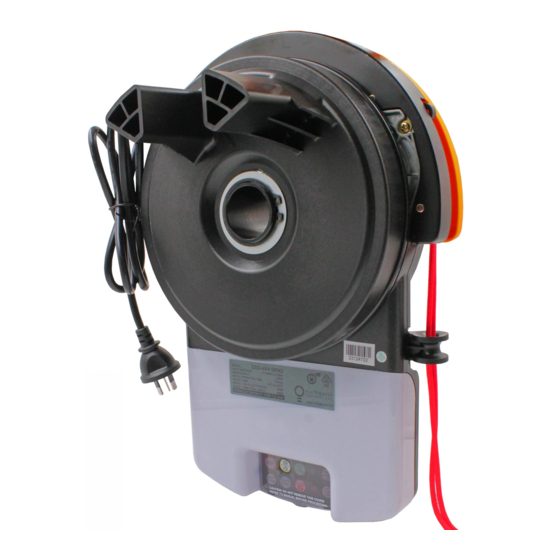

Features Thank you for purchasing the Automatic Technology EasyRoller® Automatic Garage Door Opener. Designed by our renowned engineers to suit Vertical Operating Continuous Curtain Roll up doors, the EasyRoller® will provide years of smart, simple & secure convenience to your home. - Page 7 Service Indicator The opener has a built in counter with a default setting of 3000 cycles. When the counter expires the opener will beep and fl ash to indicate a service is required. ® Owner Installation Instructions GDO-6v4 EasyRoller...
-
Page 8: Operating Controls
EASY ACCESS TRANSMITTER; power failures. At the cord’s end is the a wireless door controller. JP1 SOLAR CONNECTOR the shunt must be fi tted for solar operation. GDO-6v4 EasyRoller ® Owner Installation Instructions... - Page 9 PROG INPUT is used to connect the Automatic Technology Handheld Programmer for editing control and receiver functions, accessing diagnostic tools, and activating special features and operating modes. SBCO-2 CONNECTOR is used to connect both Battery Backup Kits and SmartSolar™ kits.
-
Page 10: Package Contents
Package Contents GDO-6v4 Easyroller® drive unit w/ Easy Access Transmitter TrioCode™ keyring transmitters with batteries Pan head screw M4x50mm (not included in some models) Nilock Hex nut M4 (not included in some models) Flat washer I.D. 3/16 x 1/2 (not included in some models) Spring washer I.D. -
Page 11: Installation
The recommended sideroom from the edge of the door curtain is 95mm to the inside of the door bracket, and 135mm to the wall (Fig. 02). NOTE: Door Axle Diameter must not exceed 35mm. ® Owner Installation Instructions GDO-6v4 EasyRoller... - Page 12 WARNING! The door and its springs are under fi g signifi cant tension. Adjustments should only be carried out by experienced persons, as this function can be dangerous if not performed under strict safety procedures. GDO-6v4 EasyRoller ® Owner Installation Instructions...
- Page 13 Remove the door bracket allowing the door to rest on the support (Fig. 08). NOTE - For minimum sideroom installations the door may have to be taken down. WARNING! The opener must not be used with a door incorporating a wicket door. ® Owner Installation Instructions GDO-6v4 EasyRoller...
- Page 14 DO NOT SWITCH ON. Secure the power cord away from any moving object (e.g. the door) with the cable clip supplied. With the opener still disengaged, pull the door up and down to make sure it runs freely. GDO-6v4 EasyRoller ® Owner Installation Instructions...
-
Page 15: Programming The Opener
To reset the limits, press and hold the CLOSE button for 6 seconds until the CLOSE LIMIT LED fl ashes quickly. If no action is taken within 30 seconds, the opener will return to normal operating mode and restore the original limit settings. ® Owner Installation Instructions GDO-6v4 EasyRoller... - Page 16 Release the CLOSE button. Repeat Steps 7.2 to set new travel limit positions. NOTE: There is no need to re-code the transmitter (Step 7.1) upon resetting travel limits. The transmitter will still be stored in memory. GDO-6v4 EasyRoller ® Owner Installation Instructions...
-
Page 17: Safety Obstruction Force
DANGER! If the door fails these tests, put the opener into manual mode, only operate the door by hand and call for service. Wood (40mm high) ® Owner Installation Instructions GDO-6v4 EasyRoller... - Page 18 (4) times (depending on the position of the door and the power up condition). A single beep will be heard once the process is complete. Test the force again as per Steps 8.1 and 8.2. GDO-6v4 EasyRoller ® Owner Installation Instructions...
-
Page 19: Coding Transmitters
Press and hold the transmitter button for six (6) seconds to set Vacation Mode. The door code LED will stay lit while Vacation Mode is active. To reset Vacation Mode, press the same button for two seconds. ® Owner Installation Instructions GDO-6v4 EasyRoller... - Page 20 Hold the new transmitter’s button for two (2) seconds, pause for two (2) seconds, hold again for two (2) seconds and then release. Wait for 10 seconds and then press the new transmitter’s button to test. GDO-6v4 EasyRoller ® Owner Installation Instructions...
-
Page 21: Deleting Transmitter Codes
(5) seconds. These LED’s will turn off and the CODING LED will illuminate. Release the DOOR CODE BUTTON. All stored codes will now be deleted. Confi rm this by pressing buttons on any previously coded transmitters - the opener should not respond. ® Owner Installation Instructions GDO-6v4 EasyRoller... -
Page 22: Accessories
400N (40kg). NOTE: Three wire Safety Beam is not compatible with GDO-6v4 EasyRoller® opener. GDO-6v4 EasyRoller® is compatible with wireless safety beams. Please refer to instructions provided with wireless safety beams for installation details. GDO-6v4 EasyRoller ®... -
Page 23: Auto-Close
OPEN LIMIT LED will fl ash to indicate that Auto- Close mode is operational. Break the Safety Beam’s path momentarily to initialise Auto-Close. When the door reaches the fully opened position, the door will pause for the set Auto-Close time and then close. ® Owner Installation Instructions GDO-6v4 EasyRoller... -
Page 24: Final Setup
10.4 on page 19. Step 19 - Keyswitch Connection The GDO-6v4 has the input to connect bell switch or keyswitch to open or close the door. Connect the key/ bell switch as per diagram (Fig. 33). GDO-6v4 EasyRoller ® Owner Installation Instructions... -
Page 25: Auxiliary Output
Press and hold the SET Button (Fig 35). Turn power on while holding the SET button. Continue to hold until all LED’s are off. This will not erase transmitter codes stored in memory. fi g ® Owner Installation Instructions GDO-6v4 EasyRoller... -
Page 26: Smartsolar™ Installation
Refi t the timing cover, main cover and light diffuser. Step 22.4 - Re-setup and Test the Opener Setup travel limits and code transmitters as per the GDO-6v4 instruction manual. Press either the OPERATE button, or use a transmitter to operate the opener. GDO-6v4 EasyRoller ® Owner Installation Instructions... -
Page 27: Battery Backup Kit Installation
Position 2-wire battery harness neatly and secure Whilst door is in motion, re-connect power. left side of battery kit with cable clamp. The door should complete the cycle as normal. Unplug the drive unit from mains power. ® Owner Installation Instructions GDO-6v4 EasyRoller... -
Page 28: Parameters
Alternating fl ashes fl ashes Door in open position with One second Auto-Close mode selected fl ashes Pet Mode engaged Mains power interrupted Rapid fl ashes Service due 3 Beeps At The Start Of Each Cycle GDO-6v4 EasyRoller ® Owner Installation Instructions... -
Page 29: Button Functions
Deletes all transmitter storage memory are off SET & DOOR CODE (the power on) and hold until all Deletes all control parameters and transmitter LED’s are off storage memory. Re-initialises the Opener to re-calculate force margin ® Owner Installation Instructions GDO-6v4 EasyRoller... -
Page 30: Default Settings & Specifi Cations
2. Intermittent operations may occur in areas which experience very strong winds. Strong wind puts extra pressure on the door and tracks which may in turn trigger the safety obstruction detection system intermittently. GDO-6v4 EasyRoller ® Owner Installation Instructions... -
Page 31: Troubleshooting
In such an instance, please contact your Automatic Technology dealer for an alternative frequency replacement kit. As this is not a warrantable situation but an environmental issue, charges may apply for the change over. -
Page 32: Maintenance
Maintenance Maintenance counter Whilst your opener does not require any periodic GDO-6v4 EasyRoller® has a built in maintenance maintenance, the door that it is fi tted to, does. counter. From factory this is loaded with 3000 cycles. Your garage door is a large, heavy, moving object... -
Page 33: Spare Parts
Spare Parts ® Owner Installation Instructions GDO-6v4 EasyRoller... -
Page 34: Important Safety Checks
Place opener in protected area so that it does not get wet • Do not spray with water • Do not open the protective covers • Do not operate opener if cable is damaged GDO-6v4 EasyRoller ® Owner Installation Instructions... -
Page 35: Warranty
ATA, in its of the GDO-6v4 EasyRoller® (Product). In particular any loss unfettered opinion, considers to be defective either in material or damage caused to other equipment or accessories used... - Page 36 EasyRoller ® is a registered trademark of Automatic Technology (Australia) Pty Ltd. No part of this document may be reproduced without prior permission. In an ongoing commitment to product quality we reserve the right to change specifi cation without notice. E&OE.
