SmartSolar™ Installation

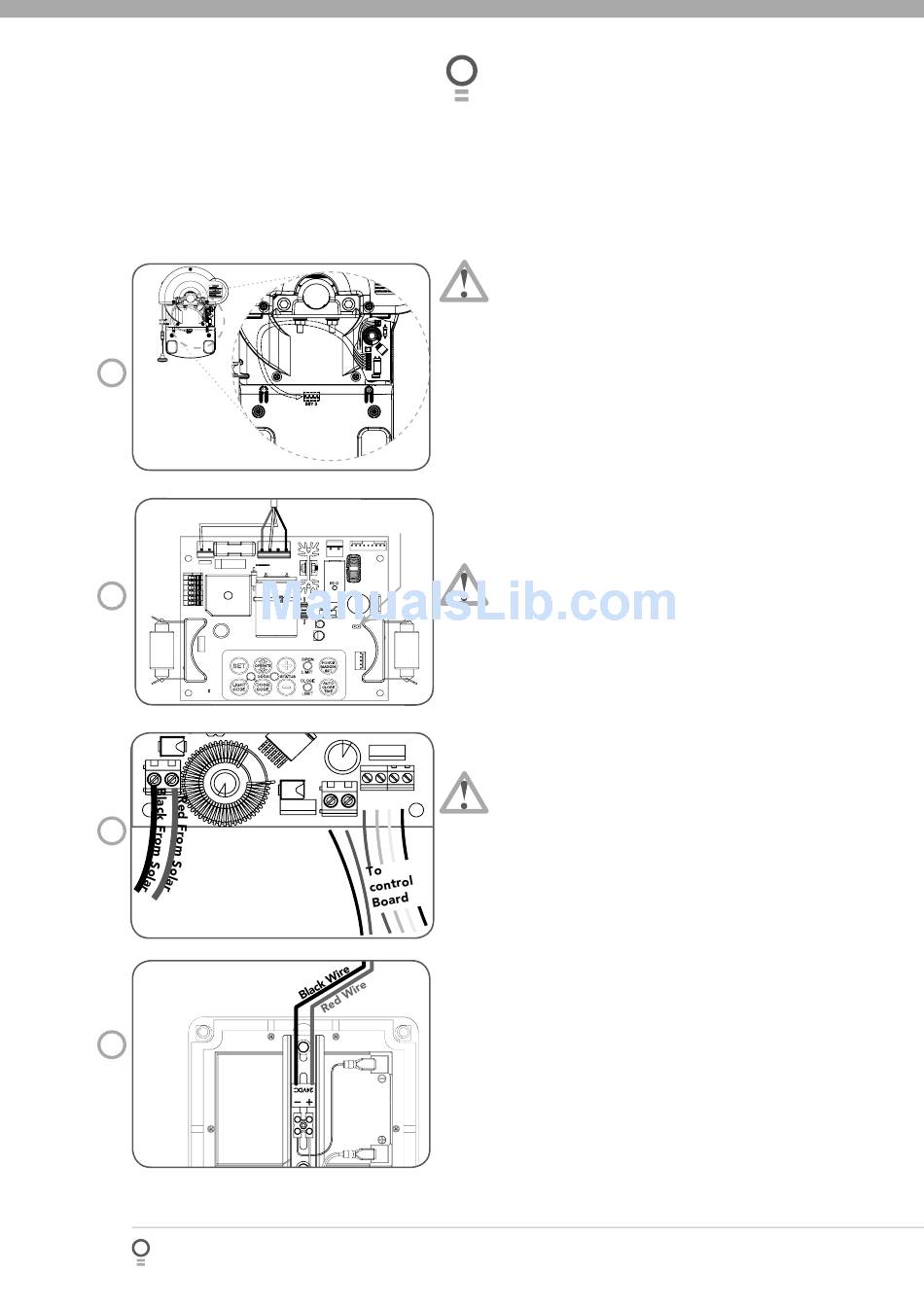

Fig 36
Fig 37
Fig 38
Fig
39
GDO-6v3 EasyRoller
26
JP1 Solar
Shunt
® Owner Installation Instructions
WARNING: Do not connect the batteries until
after Step 22.2.
Step 22.1 - Mount the Charger Board
1. Unplug the drive unit from mains power.
2. Disengage motor using manual release cord.
3. Remove the main cover, timing cover and light
diffuser. Then remove the transformer, EMC board
and mains power cable.
4. Fix the Charger Board under the timing cover using
four (4) M4x8 screws (Fig. 36).
5. Feed the four wire cable through the opening, then
connect the three wire harness (red/yellow/black) into
the control board's "SBY-3" connector (Fig. 37).
6. Plug the one wire harness (white) into the control
board's "24vac in" connector (Fig. 37).
7. Plug the solar shunt (supplied) onto the control
board's "J13" connector (Fig. 37).
IMPORTANT WARNING: Do not connect battery
or solar panel polarity incorrectly - this will result
in serious damage to components.
Step 22.2 - Connect the Solar Panel
1. Mount the solar panel as described in the
SmartSolar™ Instruction Manual.
2. Feed the Solar Panel's cable through the black
grommet on the chassis.
3. Connect the red wire to the Charger Board's
"SOLAR+" connector, and the black wire to the
"–SOLAR" connector (Fig. 38).
WARNING: During Step 22.3 the opener will
become active.
Step 22.3 - Mount & Connect the Battery
1. Mount the Battery Box close to the opener.
2. Feed the 2-core 18awg gauge cable (supplied)
through the Battery Box's grommet.
3. Connect the red wire to the Battery Box's "+"
terminal, and the black wire to the "–" terminal
(Fig. 39).
4. Feed the other end of the battery cable through the
drive unit's black grommet.
5. Connect the red wire to the Charger Board's
"BAT+" connector, and the black wire to the "–
BAT" connector (Fig. 39).
6. Refi t the timing cover, main cover and light diffuser.
Step 22.4 - Re-setup and Test the Opener
1. Setup travel limits and code transmitters as per the
GDO-6 instruction manual.
2. Press either the OPERATE button, or use a
transmitter to operate the opener.
