Step 16 - Setting of Courtesy Light Time
The preset courtesy light time is three minutes. This time
can only be changed by a "PG3" programmer.
Step 17 - Setting the Pet Mode position
The default Pet Mode height can be changed as follows:
a. Drive and stop the door at the desired Pet Mode
open position by pressing O/S/C button on the
console or the transmitter button coded for O/
S/C operation.
b. Press and hold the OPEN button for six (6)
seconds until the OPEN and CLOSE LED's are lit
to record the new pet position.
When activated, Pet Mode drives the door to the preset
position from the close position. Pet Mode's active status
is indicated by both the OPEN and CLOSE LIMIT LED's
being illuminated. If a Pet Mode button is pressed while
the door is moving, the door will stop. If a Pet Mode
button is pressed when the door is in the Pet position,
then the door will close.

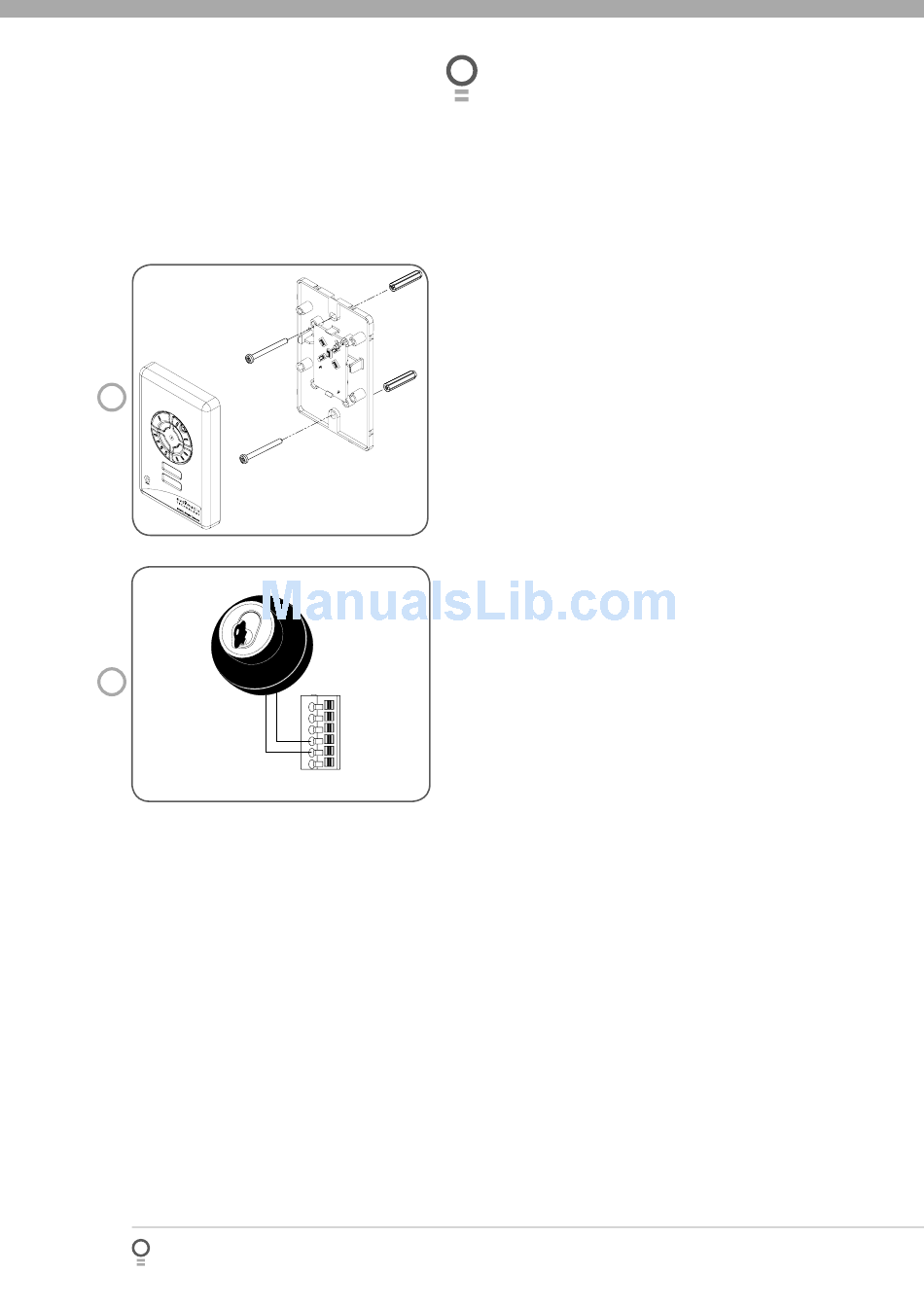

Step 18 - Installing the Wall Mounted
Transmitter (Optional)
a. Remove the faceplate from the transmitter.
b. Affi x the baseplate in a convenient wall location
(Fig 30) where the door is visible but out of the
reach of children at a height of at least 1.8 metres
from the fl oor.
c. Replace the faceplate.
d. To code the transmitter, see Steps 10.1 through
10.4 on page 19.
Step 19 - Keyswitch Connection
The GDO-6 has the input to connect bell switch or
keyswitch to open or close the door. Connect the key/
bell switch as per diagram (Fig. 31).
