MP-1xx SIP User's Manual
5.8.7

Configuring the Hunt Group Settings

The Hunt Group Settings Table is used to determine the method in which new calls are assigned
to channels within each hunt group. If such a rule doesn't exist (for a specific hunt group), the
global rule, defined by the Channel Select Mode parameter (Protocol Definition > General
Parameters), applies.
To configure the Hunt Group Settings table, take these 7 steps:
Open the 'Hunt Group Settings' screen (Protocol Management menu > Hunt Group
1.
Settings); the 'Hunt Group Settings' screen is displayed.
In the Routing Index drop-down list, select the range of entries that you want to edit (up to
2.
24 entries can be configured).
In the Hunt Group ID field, enter the hunt group ID number.
3.
In the Channel Select Mode drop-down list, select the Channel Select Mode that
4.
determines the method in which new calls are assigned to channels within the hunt groups
entered in the field to the right of this field. For information on available Channel Select
Modes refer to
Repeat steps 4 and 5, for each defined hunt group.
5.
Click the Submit button to save your changes.
6.
To save the changes so they are available after a power fail refer to Section
7.
139.
Version 4.4

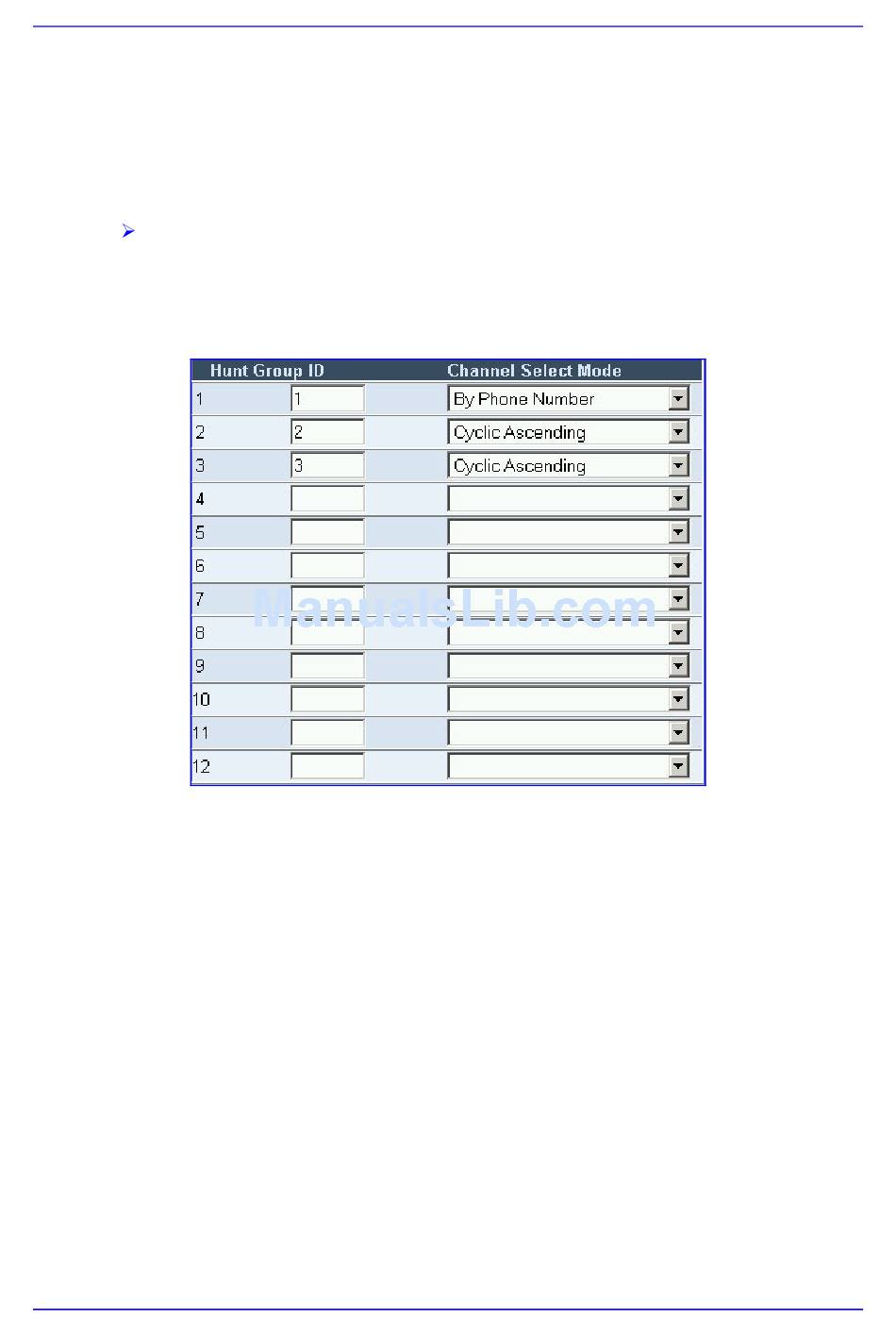

Figure 5-20: Hunt Group Settings screen

Table 5-19.
91
5. Configuring the MP-1xx
5.12 on page
March 2005
