Advanced Menu / Communications / Ethernet Advanced
Use this menu to configure the Ethernet Advanced communications settings. Select from the
following:
•
Bandwidth: Local bandwidth control, set from 5Kb per second through 250Kb and Unlimited. The
minimum of this setting and the setting requested by SymNav software will be used.
•
TCP MTU Size: Select from 1514, 1400, and 1200. The MTU describes the maximum possible TCP
packet size. 1514 is optimal for most Ethernet network environments.
•
Listen Port: The port that the SymDec uses to listen to Streaming commands.

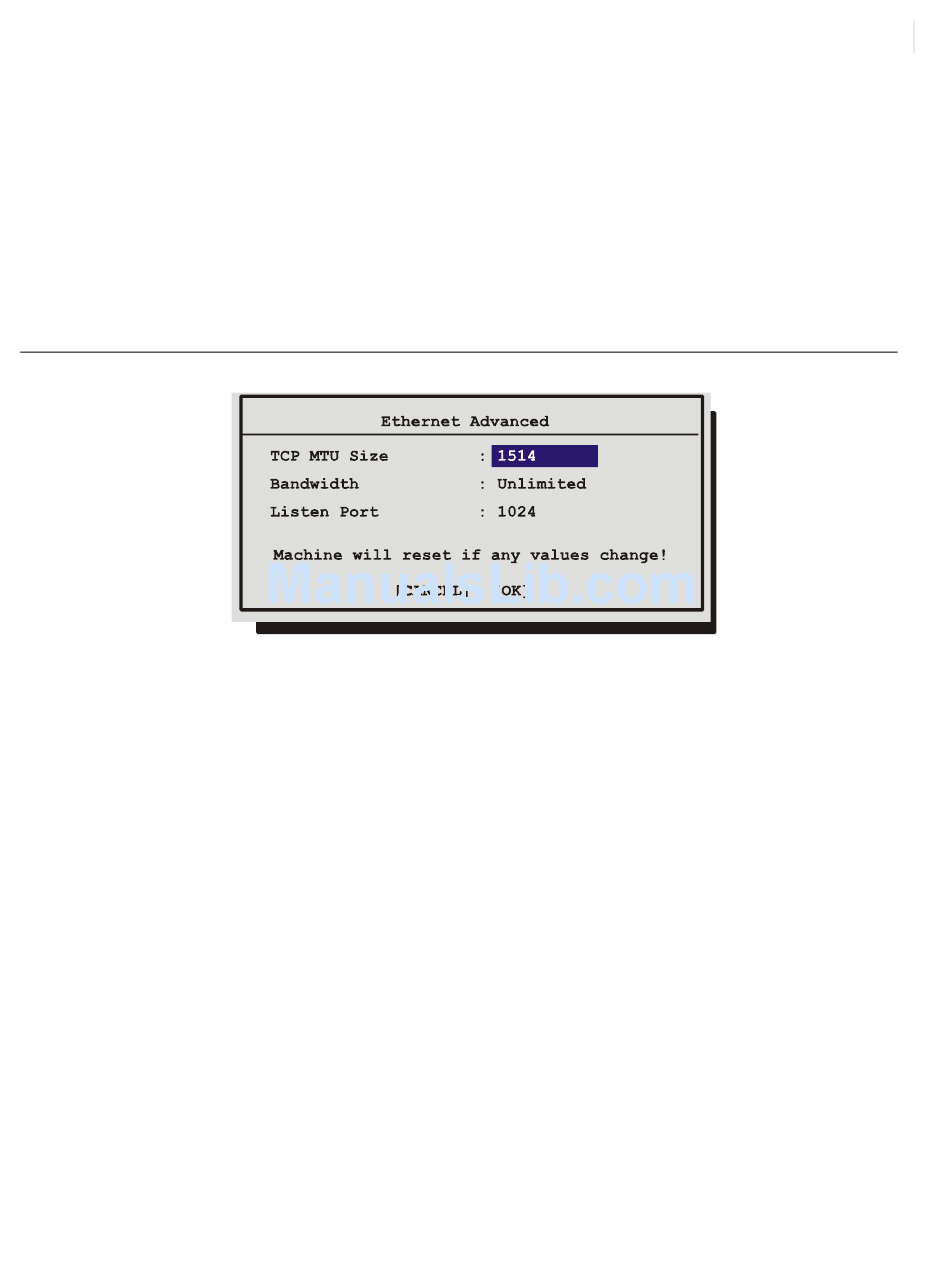

Figure 83. The ethernet advanced menu
Advanced Menu / Communications / Streaming
Use this menu to configure the streaming settings. Video streaming is the process that the SymDec family of
products including the IP CODEC and IP Camera use to listen on a specific UDP/TCP port for control
messages. For more information on video streaming, see the
from the following menu options:
•
Streaming Enable: Select from Disable, Receiver, or Sender.
•
Streaming Protocol: Select from UDP or TCP.
•
Streaming IP Address: Select the IP Address of the unit that you want to connect with. If you set up
your unit as a receiver, then the IP address you enter should be the IP address of the sender.
•
Streaming Port: Select the port for the stream. 8090 is the default. Contact your company's IS
professional for available ports.
•
IP Map for Network Camera 5: Select the IP address of the IP camera if connected.
Streaming Video Overview
on page 21. Select
73
