bar. Typical numbers are shown for the purpose of illustration. Real addresses must be chosen by the user
based on actual network parameters.
At a minimum the following information must be known:
• The IP addresses of all the units involved in this network.
• The Subnet Masks of all the units involved in this network.
• The Gateway addresses of all the units involved in this network.
• A valid streaming or multicast address.

Streaming settings for UDP unicast or TCP

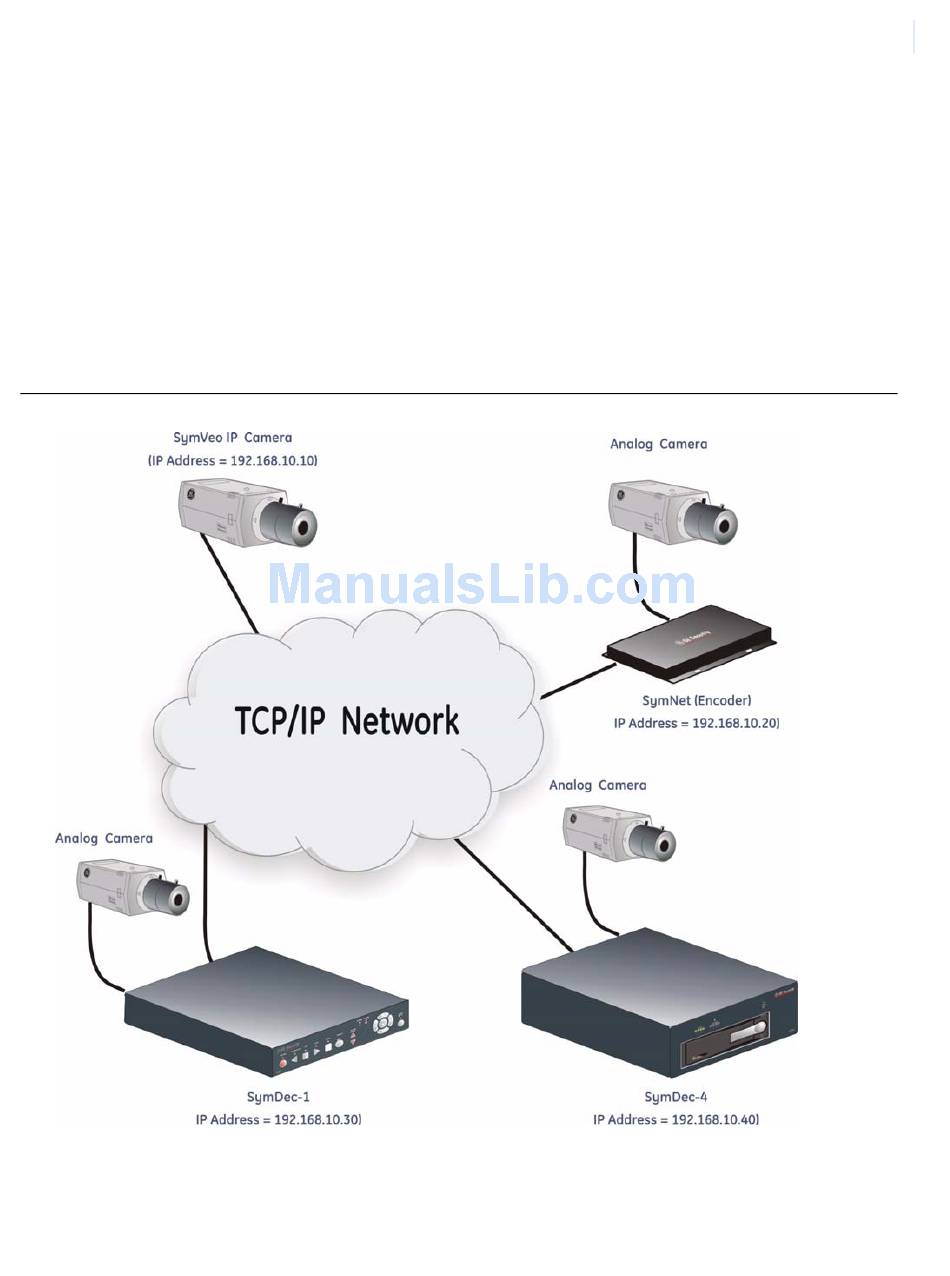

Figure 14. A sample network configuration
Figure 15 illustrates streaming settings for a UDP unicast from the SymNet to the SymDec 4.
The SymDec 4 is setup as a receiver in Normal mode with the Receiver Cam Map IP address set at
192.168.10.20 (The IP address of the sender). The SymNet is setup as a sender with the streaming address set
23
