Typical Scenario: Fax Sent - Intel IP Media Server Demo Manual

Demo Details
Fax Sent
The fax is sent. The front end is requested to close the fax session.

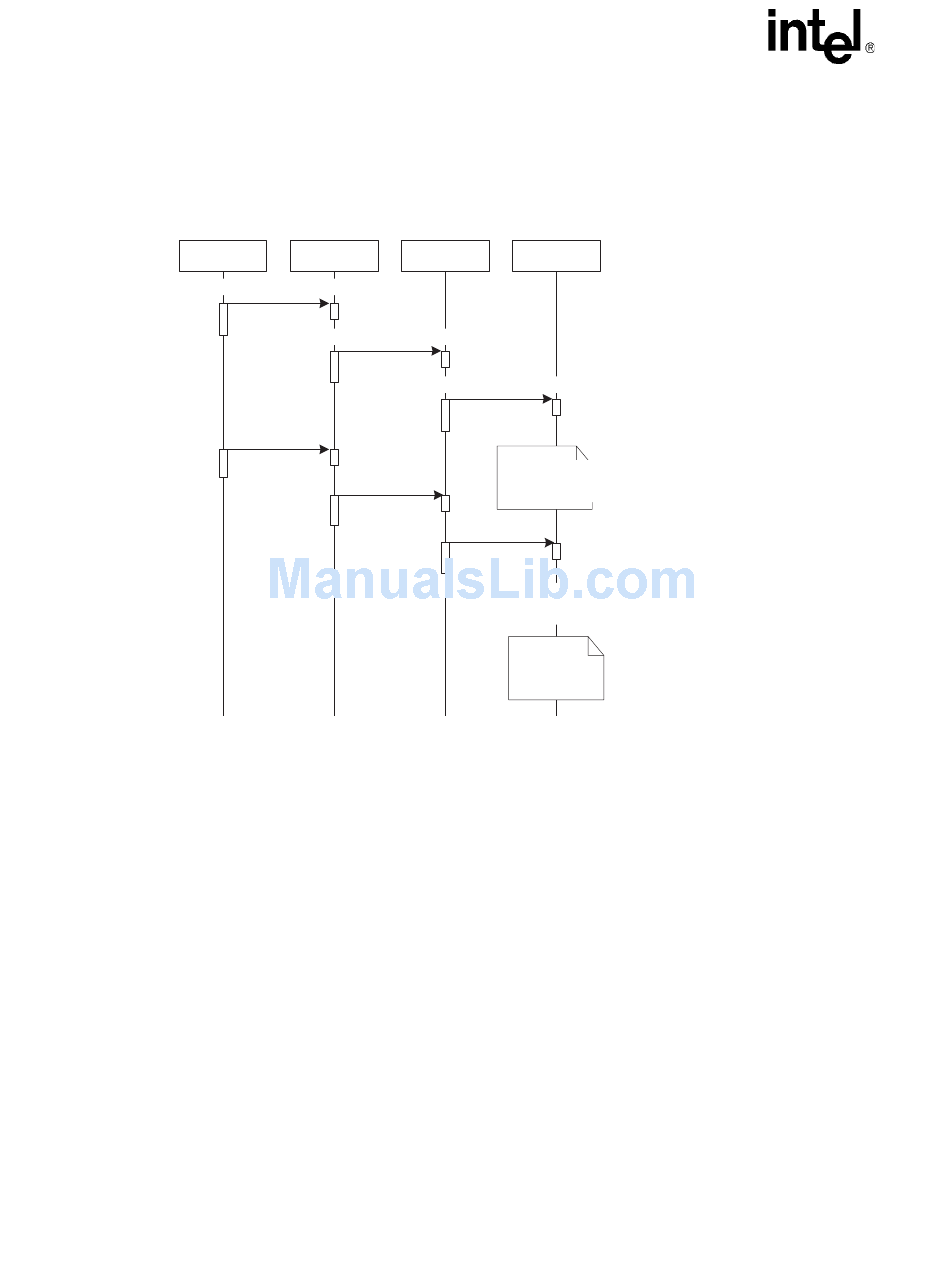

Figure 11. Typical Scenario: Fax Sent
CEventRouter
USR_CLOSEFAXSESSIONREQ
GCEV_EXTENSION
48
CIPModule CIPDevice
USR_CLOSEFAXSESSIONREQ
USR_CLOSEFAXSESSIONREQ
GCEV_EXTENSION
GCEV_EXTENSION
CIPState
Machine
1. Call gc_stop( ) to stop T.38 session
2. Call gc_extension ( ) to start audio session
3. Call gc_listen( ) listen to voice prompts
Format TSUserEvent to
reply to fax module that
T.38 session is closed
source=IP
destination=FAX
event=
USR_CLOSEFAX
SESSIONCONF
IP Media Server for HMP Demo Guide — July 2005
