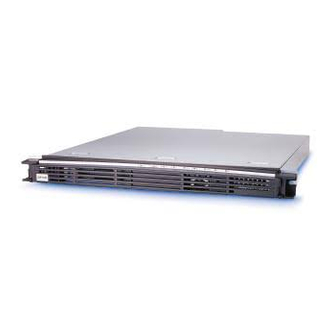

Intel ISP1100 Installation Manual
Slimline cd-rom/floppy drive option kit for internet server
Hide thumbs
Also See for ISP1100:
- Product manual (81 pages) ,
- Quick start manual (32 pages) ,
- Installation manual (24 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Intel ISP1100
Summary of Contents for Intel ISP1100
- Page 1 Slimline CD-ROM/Floppy Drive Option Kit Installation Guide for Intel ISP1100 Internet Server ®...
- Page 2 Intel. Intel Corporation (Intel) makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 • Phillips (cross-head) screwdrivers, numbers 1 and 2 bit • An antistatic wrist strap and conductive foam pad (recommended) ® Read the safety and warnings information in the Intel ISP1100 Internet Server Quick Start Guide. Make sure the server is turned off and is not plugged into an electrical outlet.
- Page 4 Attach the CD-ROM drive to the CD-ROM mounting bracket. • Place the CD-ROM drive on top of the CD-ROM mounting bracket (A). • Fasten the drive to the bracket using four m2 x 4mm long screws (B). OM09775 Intel ISP1100 Internet Server Slimline CD-ROM/Floppy Drive Kit...
- Page 5 Assemble the Slimline Floppy Drive Place the floppy drive (A) on top of the floppy mounting bracket (B). Fasten the floppy drive to the bracket using four m2.5 x 4mm long screws (C). OM09774 Intel ISP1100 Internet Server Slimline CD-ROM/Floppy Drive Kit...
- Page 6 Slide the cover back and out from under the edge of the server’s front panel. When the cover is free of the front panel, use the notch (B) in the cover to lift the cover off the chassis. OM09745 Intel ISP1100 Internet Server Slimline CD-ROM/Floppy Drive Kit...
- Page 7 Grasp the riser card at each end (C) and gently rock and lift until the riser releases from the server board connector. If the system is configured for SCSI, disconnect the SCSI cable from the SCSI card. OM09747 Intel ISP1100 Internet Server Slimline CD-ROM/Floppy Drive Kit...
- Page 8 Remove the three screws (A) that hold the drive in the chassis. Lift the back end of the floppy drive at an angle and disconnect the power cable (B) and data cable (C). Remove the drive from the bay. OMO9771 Intel ISP1100 Internet Server Slimline CD-ROM/Floppy Drive Kit...
- Page 9 (not perpendicular) to the head of the retention bracket (C). • Gently slide the cable from under the retention bracket, being careful not to scrape it against the retention bracket. OM09742_R Intel ISP1100 Internet Server Slimline CD-ROM/Floppy Drive Kit...
- Page 10 • Gently slide the end of the slimline floppy cable (F) into the space between the tab and the top of the connector. • Holding the cable in place, press the handles (E) at each end of the tab inward to lock the cable in. OM09743 Intel ISP1100 Internet Server Slimline CD-ROM/Floppy Drive Kit...
- Page 11 Place the slimline CD-ROM cable (A) in the chassis and carefully slide it under the retention bracket (B). Connect the slimline CD-ROM cable to the secondary IDE connector (C) on the server board. OM09750 Intel ISP1100 Internet Server Slimline CD-ROM/Floppy Drive Kit...
- Page 12 Note: The riser assembly is still outside of the chassis. Hold the riser assembly above the chassis, plug the SCSI cable into the SCSI card, then go to the next step, “Reinstall the Riser and Add-in Card(s).” OM09751 Intel ISP1100 Internet Server Slimline CD-ROM/Floppy Drive Kit...
- Page 13 Align the riser card edge connector (A) with the mating riser connector on the server board. Press the riser/add-in card(s) assembly straight down into the connector on the server board. Fasten the retention bracket (B) to the server back panel with two screws (C). OM09753 Intel ISP1100 Internet Server Slimline CD-ROM/Floppy Drive Kit...
- Page 14 • While holding the cable in place, press the brown tab (E) back down into the connector. Note: The slimline floppy drive uses one cable for both power and data. Intel ISP1100 Internet Server Slimline CD-ROM/Floppy Drive Kit...
- Page 15 Make sure the data cables are tucked smoothly under the drives and are not crimped. Fasten the slimline drives to chassis with three screws (F). OM09751B Intel ISP1100 Internet Server Slimline CD-ROM/Floppy Drive Kit...
- Page 16 Slide the cover forward until the recessed edge (A) is all the way under the edge of the front panel. Fasten the cover with a screw (B). OM09752 Intel ISP1100 Internet Server Slimline CD-ROM/Floppy Drive Kit...
- Page 20 Document Number: A16414-001...
