Demo Details
Establish Fax Session
The Fax module requests the front end to get ready to send a fax. If the front end is IP, it should first
move from an RTP port to a UDP port in order to send a fax.

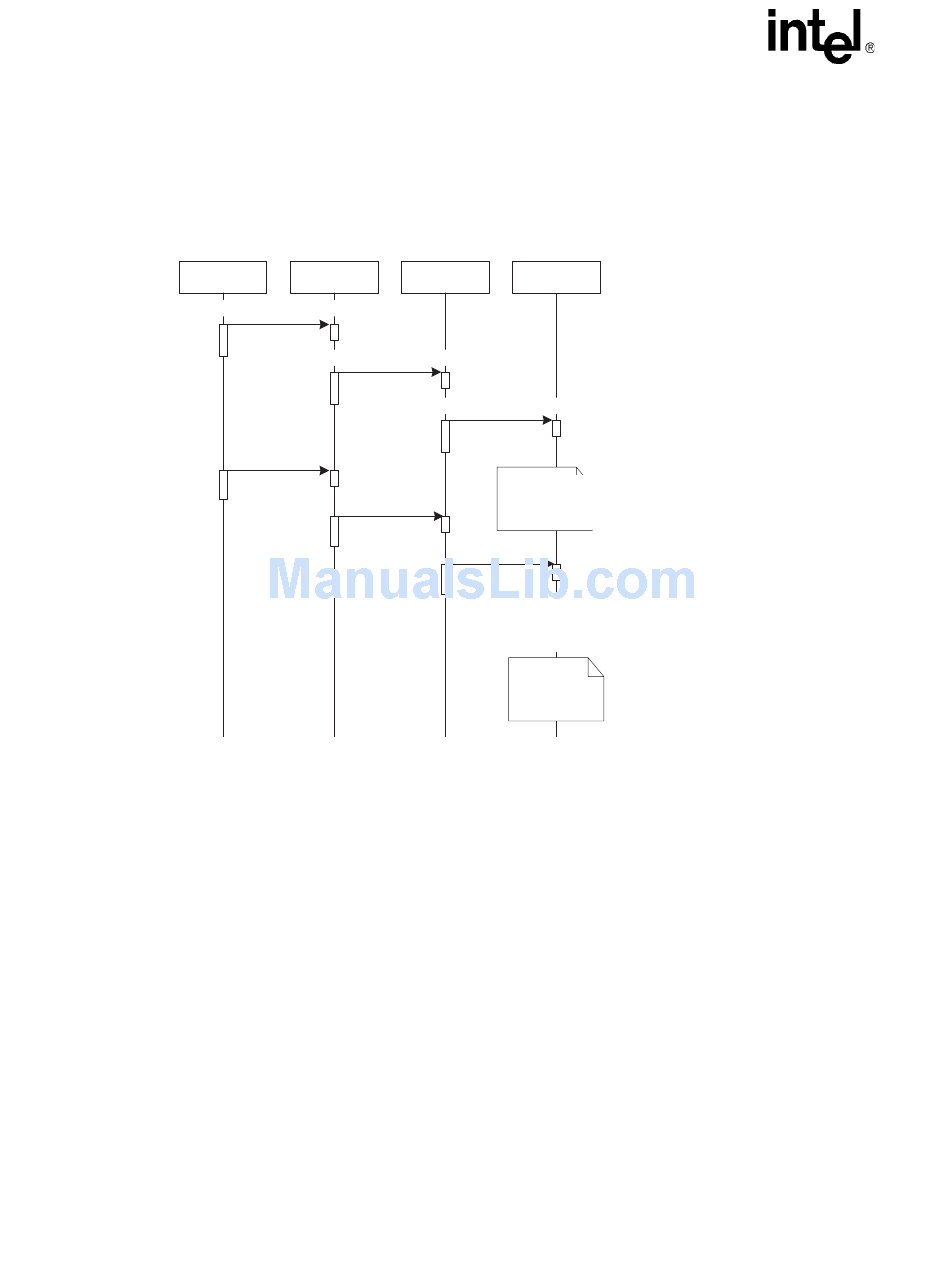

Figure 9. Typical Scenario: Establish Fax Session
CEventRouter
USR_ESTABLISHFAXSESSIONREQ
GCEV_EXTENSION
46
CIPModule CIPDevice
USR_ESTABLISHFAXSESSIONREQ
USR_ESTABLISHFAXSESSIONREQ
GCEV_EXTENSION
GCEV_EXTENSION
CIPState
Machine
1. Call gc_setConfigData( ) to set to manual (fax) mode.
2. Call gc_unlisten ( ) to disconnect from voice
3. Call gc_setUserInfo( ) to set T.38 info.
4. Call gc_extension( ) to start T.38 session
Format TSUserEvent to
reply to fax module that
T.38 session is
established
source=IP
destination=FAX
event=
USR_ESTABLISHF
AXSESSIONCONF
