Page 1: Instruction Manual

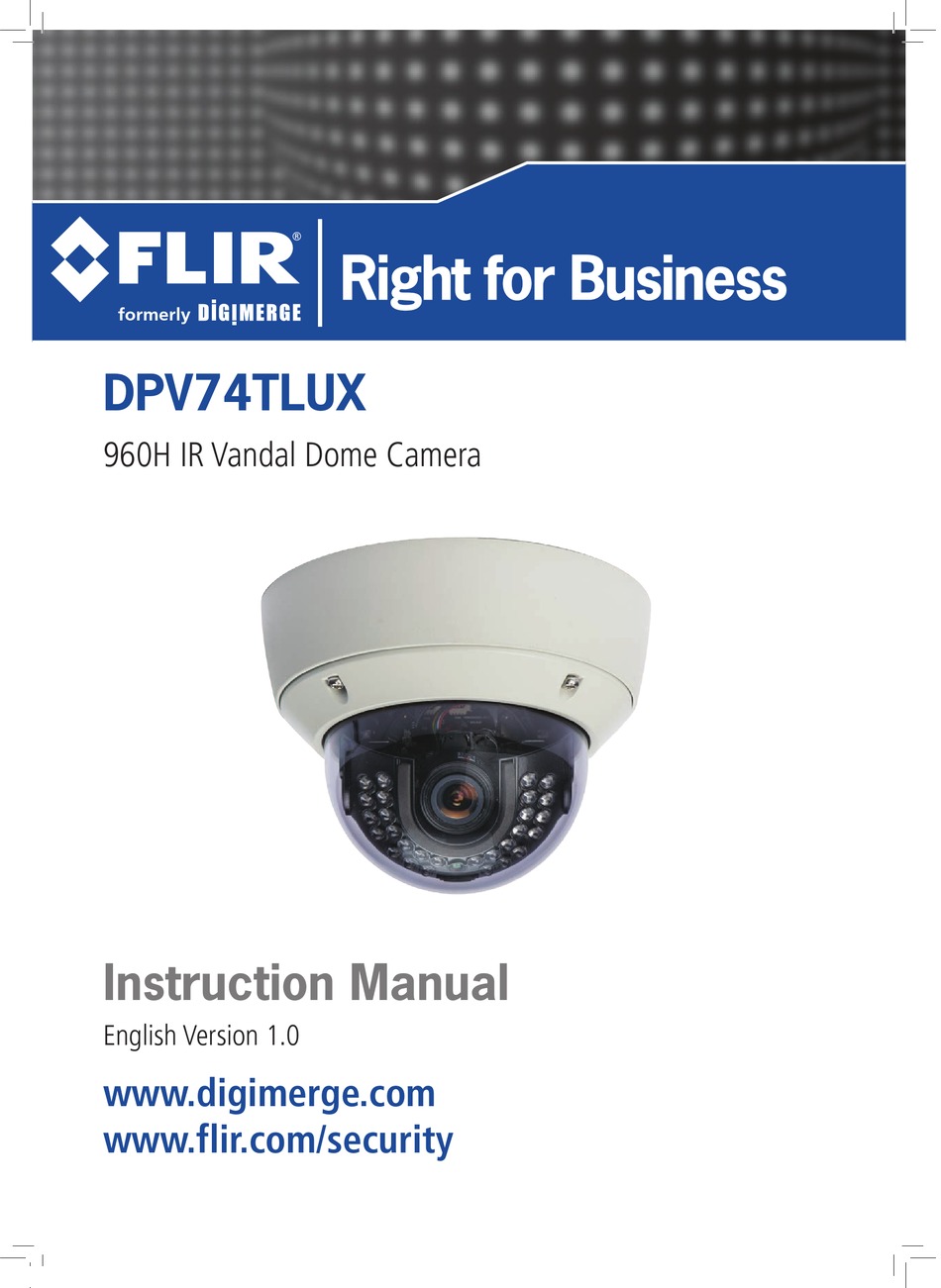

960H IR Vandal Dome Camera Digital Video Surveillance Recorder 4/8/16/32 960H Real-time View & Record CMS Mobile Apps HDMI Instruction Manual English Version 2.0 Instruction Manual www.digimerge.com English Version 1.0 www.flir.com/security www.digimerge.com Copyright © 2013 Digimerge Technologies Inc., a FLIR Company www.flir.com/security... - Page 2 Digital Video Security Systems - 2 -...
- Page 3 Digital Video Security Systems - 3 -...
-
Page 4: Table Of Contents
Digital Video Security Systems Contents Contents ................3 General Features ..............4 Precautions ................5 Safety precautions ..................6 Please handle this camera carefully ............6 Safety Instructions .............. 6 Package Contents ..............7 Surface Mount .................... 8 Installation ................8 Flush Mount .................... -
Page 5: General Features
Digital Video Security Systems General Features • 1/3” Sony EX-View™ II 960H • UL standard 60065 Approved • Built-in video balun (UTP) • Up-the-coax (UTC) OSD via UTC controller* • Polaris Vision2 low light viewing • Smart-IR Night Vision (100ft/31m) with Adjustable LED Power Level • 3.5-16mm Auto Iris D/N Varifocal Lens • True Day Night with ICR (TDN) • IP67 Weatherproof rated and Vandalproof • Advanced 3D Digital Noise Reduction (3D-DNR) -
Page 6: Precautions
Digital Video Security Systems Precautions Do not install the camera in Do not install or use the camera in an Do not install the camera under extreme temperature conditions. environment where the humidity is high. unstable lighting conditions. Only use the camera in environments Severe lighting change or flicker can between -40°C and +50°C. -
Page 7: Safety Precautions
Digital Video Security Systems Safety Instructions Safety precautions • This camera should be installed by qualified personnel only. • There are no user serviceable parts inside. Do not disassemble the camera. • Use an appropriate low voltage power cable to prevent fire or electrical shock. -
Page 8: Package Contents
Digital Video Security Systems Package Contents Camera (x1) Tapping Screw Machine Screw 4x25 (x4) M4x10 (x3) Allen Key (x1) Camera Termination Test Video Cable (x1) Cable (x1) Accessories - • MNTV74J - Junction box mount. • MNTV74W - Flush Mounting Zoom / Focus Wall mount. -
Page 9: Surface Mount
Digital Video Security Systems Installation Do not remove the protective film on the dome cover until the installation is completed. Surface Mount 1. Use the included surface mounting template to drill holes for the cable and mounting screws. 2. Run the extension cables through the surface Camera and connect the camera termination cable to the Termination... -
Page 10: Flush Mount
Digital Video Security Systems Flush Mount 1. Cut a hole in the ceiling using the inside line of the included flush mounting template. Drill holes as marked on the template. Cut along inside line Drill mounting holes Flush Mounting Template 2. -
Page 11: Junction Box Installation
Digital Video Security Systems Junction Box Installation The camera is compatible with 2S and Two Gang junction boxes. To install the camera to a junction box: 1. Connect the camera termination cable to the extension cables inside the junction box. 2. -
Page 12: Adjusting The Camera
Digital Video Security Systems Adjusting the Camera 1. With the dome cover removed, you can adjust the camera viewing angle, zoom/focus, LED level, and OSD. • (Optional) Connect the included video test cable to the Video Test connector to output the video to a BNC test monitor. -
Page 13: Connection
Digital Video Security Systems Connection This camera supports 24V AC power only. a. Power: Connect the camera to a 24V AC power source. b. BNC Video: Connect the camera to the video cable. You can also control the camera OSD over the video cable using a UTC controller (Pelco C protocol). -
Page 14: How To Set Up The Camera Menu
Digital Video Security Systems How to Set Up the Camera Menu Use the camera menu to configure image quality and other camera settings. To access the camera menu: 1. Use the included allen key to loosen the dome cover screws (3x) and remove the dome cover from the camera. -
Page 15: Menu Tree
Digital Video Security Systems Menu Tree - 14 -... -
Page 16: Menu Tree (Continued)
Digital Video Security Systems Menu Tree (Continued) - 15 -... -
Page 17: Menu Tree
Digital Video Security Systems Menu Tree - 16 -... -
Page 18: Default Settings
Digital Video Security Systems Default Settings Setting Default Value Lens -> DC -> Brightness Lens -> DC -> Mode Indoor Exposure -> Shutter 1/60 Exposure -> Brightness Exposure -> AGC Middle Exposure -> Sense-Up Exposure -> BLC Exposure -> BLC -> BLC -> Value Middle Exposure ->... - Page 19 Digital Video Security Systems Setting Default Value Special -> D-Effect -> Smart DZoom Special -> D-Effect -> Smart DZoom -> Range x 2.0 Special -> D-Effect -> Sensitivity Special -> D-Effect -> Time Special -> D-Effect -> DIS Special -> D-Effect -> Neg. Image Special ->...
-
Page 20: Lens
Digital Video Security Systems Lens The Lens submenu is used to adjust the brightness of the camera. 1. Press Up/Down to select LENS and then press Set Up. SETUP LENS DCAUTO EXPOSURE WHITE BAL DAY&NIGHT COLOR 3DNR SPECIAL ADJUST RESET EXIT 2. - Page 21 Digital Video Security Systems 2. Configure the following: • Shutter: Press Left/Right to select AUTO shutter speed, adjust the shutter speed between 1/60~1/100,000 or 2x~x256, or select FLK mode. EXPOSURE SHUTTER AUTO SENSE-UP AUTO D-WDR RETURN • AGC (Auto Gain Control): Press Left/Right to adjust AGC. Increasing the AGC level may increase the amount of noise in the image.
- Page 22 Digital Video Security Systems • BLC (Back Light Compensation): The camera uses auto exposure control to automatically tone down highlighted areas of the image. » Off: Disable BLC. » BLC: Enable BLC in a user defined area. In this mode, the camera will decrease the brightness in selected areas with highlights.
-
Page 23: White Balance
Digital Video Security Systems » Gain: Press Left/Right to adjust the gain tolerance between 1~8. The higher this value is, the brighter areas of the image will need to be for the camera to block them. » Mode: Press Left/Right to select ALL DAY for HSBLC to be enabled in both day and night mode or NIGHT ONLY for HSBLC to be enabled during night mode only. - Page 24 Digital Video Security Systems 2. Press Left/Right to select the best White Balance mode for your installation: • ATW (Auto-Trace White Balance): Use this mode when the color temperature is between 1,800K to 10,500K. • AWB (Auto White Balance): Because ATW may not work properly in certain conditions, it is recommended to use this mode if one of the following conditions is present in your installation: »...
-
Page 25: Day&Night
Digital Video Security Systems Day&Night The Day&Night sub-menu allows you to configure day and night modes. 1. Press Up/Down to select Day&Night. SETUP LENS EXPOSURE WHITE BAL DAY&NIGHT COLOR 3DNR SPECIAL ADJUST RESET EXIT 2. Press Left/Right to select one of the following modes: • Color: Image will always be in color (day mode). -
Page 26: 3Dnr (3D-Digital Noise Reduction)
Digital Video Security Systems NOTE • Settings changed in the IR Smart menu are saved if you change Day & Night to EXT or AUTO. • EXT (Recommended): Camera uses the CdS sensor to detect lighting conditions and automatically select between day and night mode. Press Set Up to set the Start Delay and End Delay. -
Page 27: Special
Digital Video Security Systems 2. Press Left/Right to select ON to enable 3D-DNR or select OFF to disable. If you select ON, press Set Up to set the compensation level for 3D-DNR between 0~200. 3DNR LEVEL IIIIIIIIII IIIIIIIIII RETURN NOTE As the level is increased, the effectiveness of the noise reduction will increase, but ghosting or a softening of the image may occur. - Page 28 Digital Video Security Systems • CAM TITLE: Press Left/Right to select OFF to disable the camera title display on the OSD. Or, select ON to enable camera title display and press Set Up to configure the camera title. To configure the camera title, do the following: CAM TITLE 0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K...
- Page 29 Digital Video Security Systems » Freeze: Press Left/Right to select ON to freeze the image in place. Select OFF to unfreeze the image. » Mirror: Press Left/Right to flip the image in one of the following directions: MIRROR V-FLIP ROTATE »...
- Page 30 Digital Video Security Systems » SMART DZOOM: Smart DZoom automatically digitally zooms the camera when there is motion detected in a certain area. Press Left/ Right to select ON to enable Smart DZoom or OFF to disable. Then press Set Up to configure the following parameters: »...
- Page 31 Digital Video Security Systems • MOTION: You can set motion detection to highlight specific areas of the screen when motion is detected. Press Left/Right to select ON to enable motion detection or OFF to disable. If you select ON, press Set Up to configure the following parameters: MOTION AREA...
- Page 32 Digital Video Security Systems PRIVACY AREA AREA DISPLAY COLOR IIIIIII IIIIIIIIIIIII TRANSPAR IIII IIIIIIIIIIIIIIII RETURN » Area: Press Left/Right to select privacy area 1~8. » Area Display: Press Left/Right to select ON to enable the selected area or select OFF to disable the selected area. To configure the area: a.
-
Page 33: Adjust
Digital Video Security Systems » Auto: Automatic defog settings. Press Set Up and then press Left/ Right to adjust the Detect Level. A higher level will increase the compensation for heavier fog. » Manual: Manual defog settings. Press Set Up to configure defog settings. -
Page 34: Reset
Digital Video Security Systems Reset Use the Reset function to reset the camera to factory default settings. This is recommended if you end up with an unclear or unsatisfactory picture due to setting changes. 1. Press Up/Down to select Reset and press Set Up. 2. -
Page 35: Dimensions
Digital Video Security Systems Specifications DPV74TLUX Sensor Type 1/3” Sony Exview HAD 960H CCD Effective Pixels 976 (H) X 494 (V) Total Pixels 1020 (H) X 508 (V) Resolution 700+TVL Scanning System 2:1 Interlace Minimum Illumination 0.01 LUX @ F1.2... -
Page 36: Troubleshooting
Digital Video Security Systems Troubleshooting PROBLEM POSSIBLE CAUSE Nothing appears on the screen. • Check the power and video connection to the camera. • Ensure sufficient power is being supplied to the camera. The image on the screen is unclear. • Adjust the lens zoom and focus. • The lens cover is dirty. - Page 37 Need Help? Please make sure to visit our website www.digimerge.com to receive product updates and information. 3 Easy Ways To Contact Us Online: P ro d u c t s upp or t i s a v a i l a b l e 2 4 / 7 i n c l ud i n g p r od u c t in fo r m a ti on , u se r m a nu a l s , qu i c k s t a rt up g u i d e s an d FA Q’s w w w.d ig i m e rg e .c om By Email:...
