2. INSTALLATION

This section describes the hardware features and installation of the Managed Switch on the desktop
or rack mount. For easier management and control of the Managed Switch, familiarize yourself with
its display indicators, and ports. Front panel illustrations in this chapter display the unit LED
indicators. Before connecting any network device to the Managed Switch, please read this chapter
completely.

2.1 Hardware Description

2.1.1 Switch Front Panel

The unit front panel provides a simple interface monitoring the switch.
panel of the Managed Switch.
NS3502-8P-2S Front Panel
■ Gigabit TP interface
10/100/1000Base-T Copper, RJ-45 Twist-Pair: Up to 100 meters.
■ SFP slots
100/1000Base-X mini-GBIC slot, SFP (Small Factor Pluggable) transceiver module: From 550
meters (Multi-mode fiber), up to 10/30/50/70/120 kilometers (Single-mode fiber).
■ Reset button
At the left of front panel, the reset button is designed for reboot the Managed Switch without
turn off and on the power. The following is the summary table of Reset button

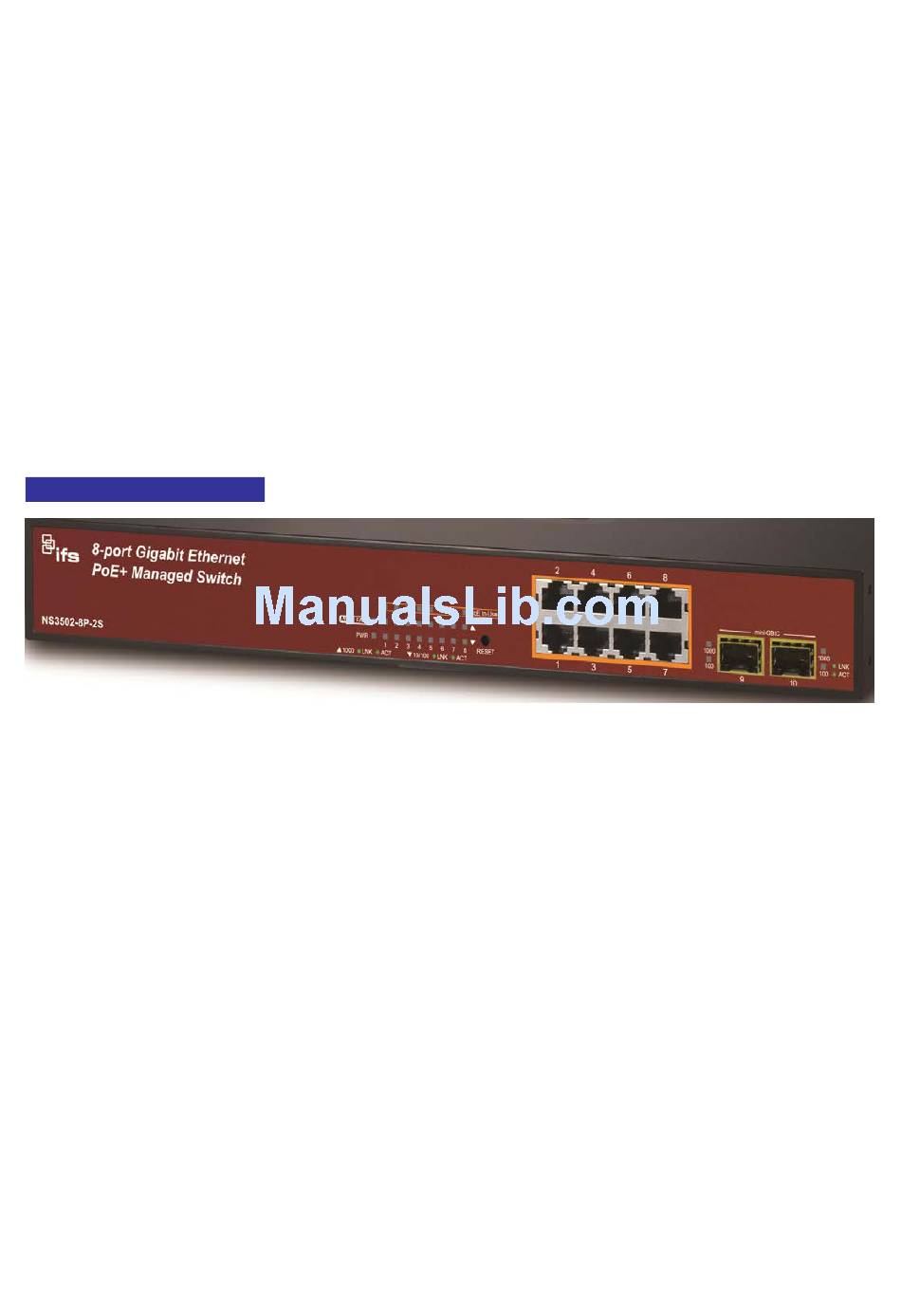

Figure 2-1: NS3502-8P-2S front panel.
29
IFS NS3502-8P-2S User Manual
Figure 2-1 shows the front
functions:
