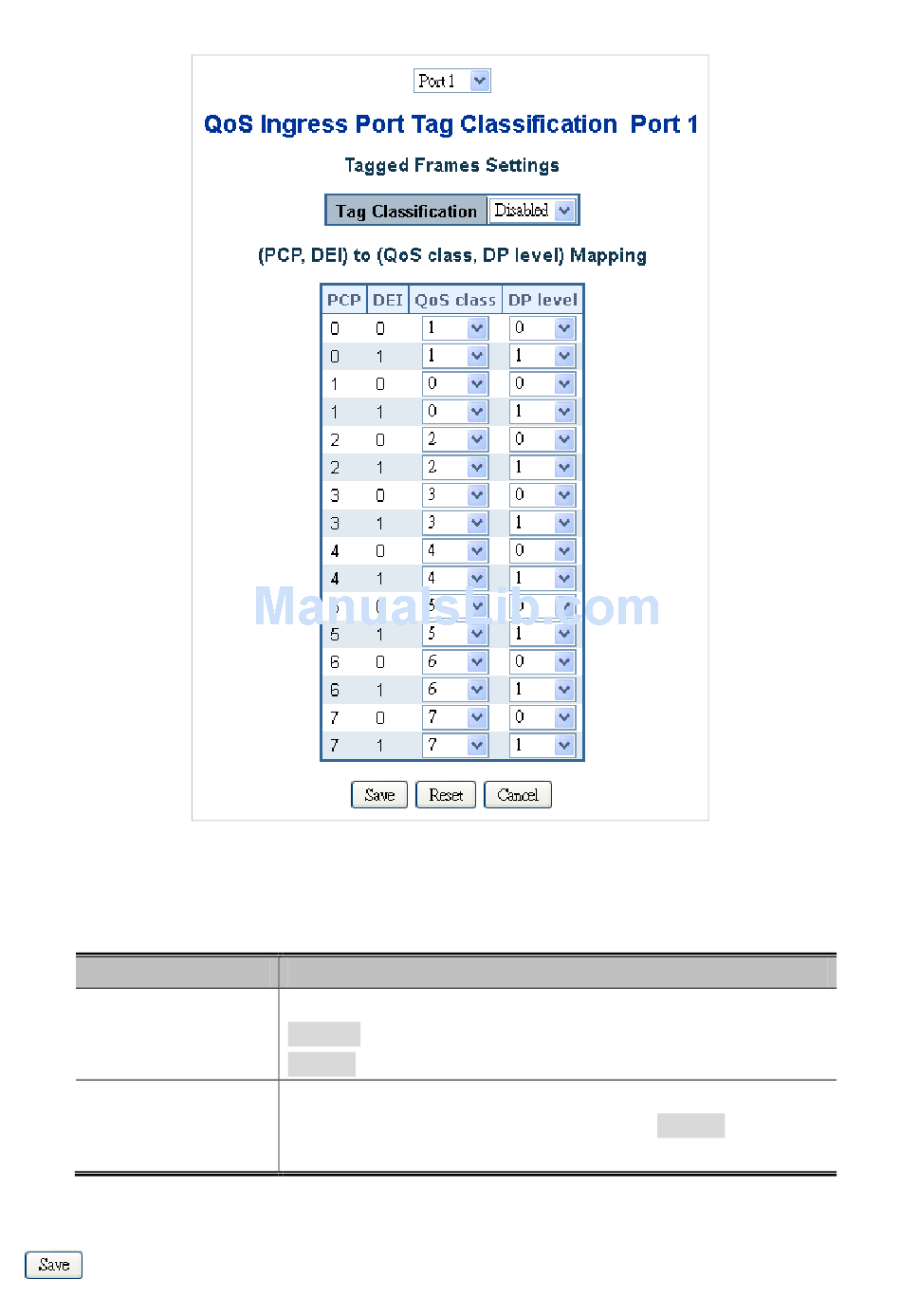

Figure 4-9-3: QoS Ingress Port Tag Classification page screenshot
The page includes the following fields:
Object
•
Tag Classification
•
(PCP, DEI) to (QoS
class, DP level)
Mapping
Buttons
: Click to save changes.
Description
Controls the classification mode for tagged frames on this port.
Disabled: Use default QoS class and DP level for tagged frames.
Enabled: Use mapped versions of PCP and DEI for tagged frames.
Controls the mapping of the classified (PCP, DEI) to (QoS class, DP
level) values when Tag Classification is set to Enabled.
