4.7.4 CIST Port Configuration

This page allows the user to inspect the current STP CIST port configurations, and possibly change them
as well. The CIST Port Configuration screen in
The page includes the following fields:
Object
•
Port
The Bridge ID of this Bridge instance.
The Bridge ID of the currently elected root bridge.
The switch port currently assigned the root port role.
Root Path Cost. For the Root Bridge this is zero. For all other
Bridges, it is the sum of the Port Path Costs on the least cost path
to the Root Bridge.
The current state of the Topology Change Flag for this Bridge
instance.
The time since last Topology Change occurred.

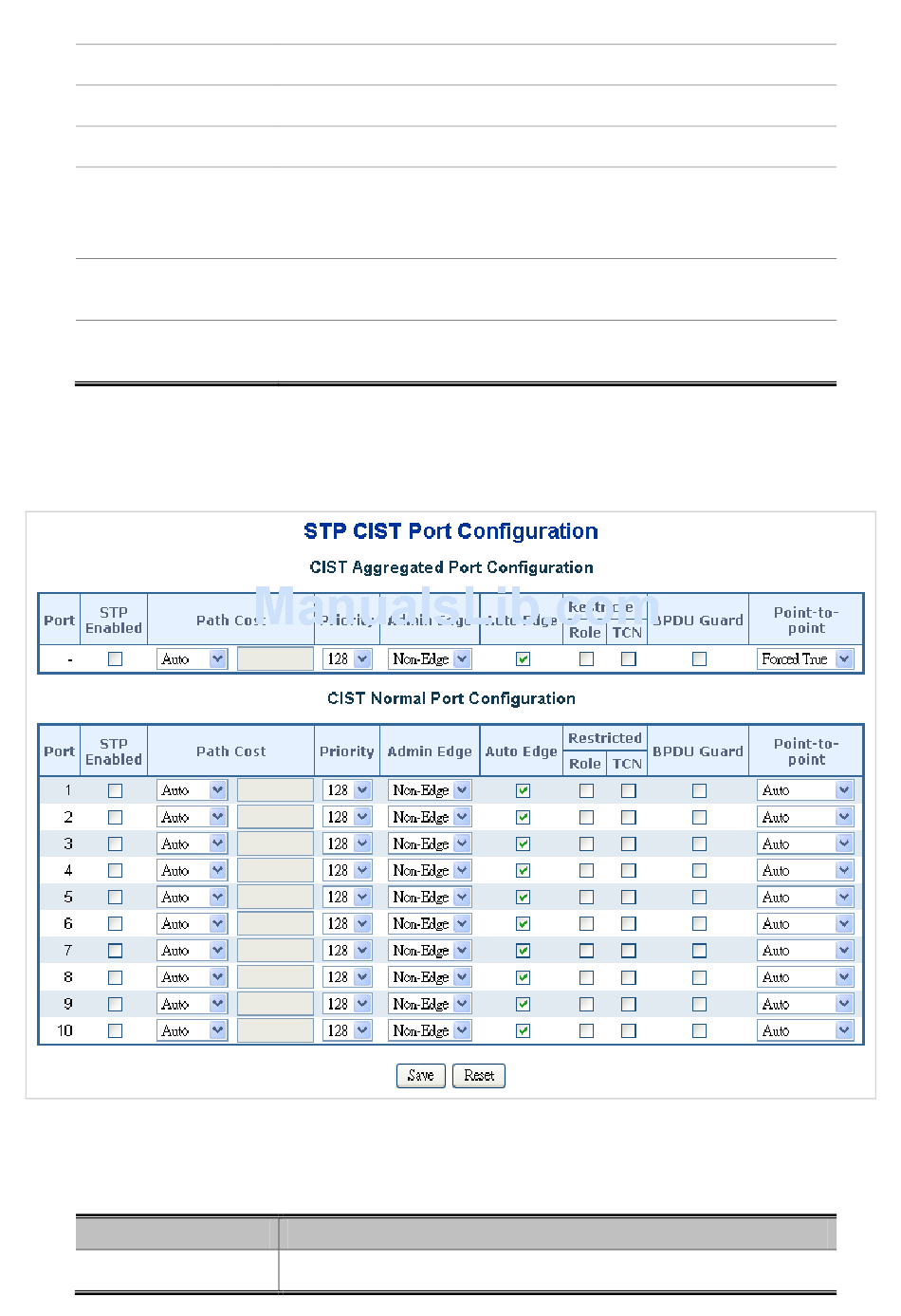

Figure 4-7-9: STP CIST Port Configuration page screenshot
Description
The switch port number of the logical STP port.
Figure 4-7-9 appears.
