The page includes the following fields:
Object
• Mode
• Maximum VLAN ID
• Maximum Number
of Supported
VLANs
• Current number of
VLANs
• VLAN Learning
• Configurable PVID
Tagging

4.6.4 VLAN Port Configuration

This page is used for configuring the Managed Switch port VLAN. The VLAN per Port Configuration page
contains fields for managing ports that are part of a VLAN. The port default VLAN ID (PVID) is
configured on the VLAN Port Configuration page. All untagged packets arriving to the device are tagged
by the ports PVID.
Understand nomenclature of the Switch
■ IEEE 802.1Q Tagged and Untagged

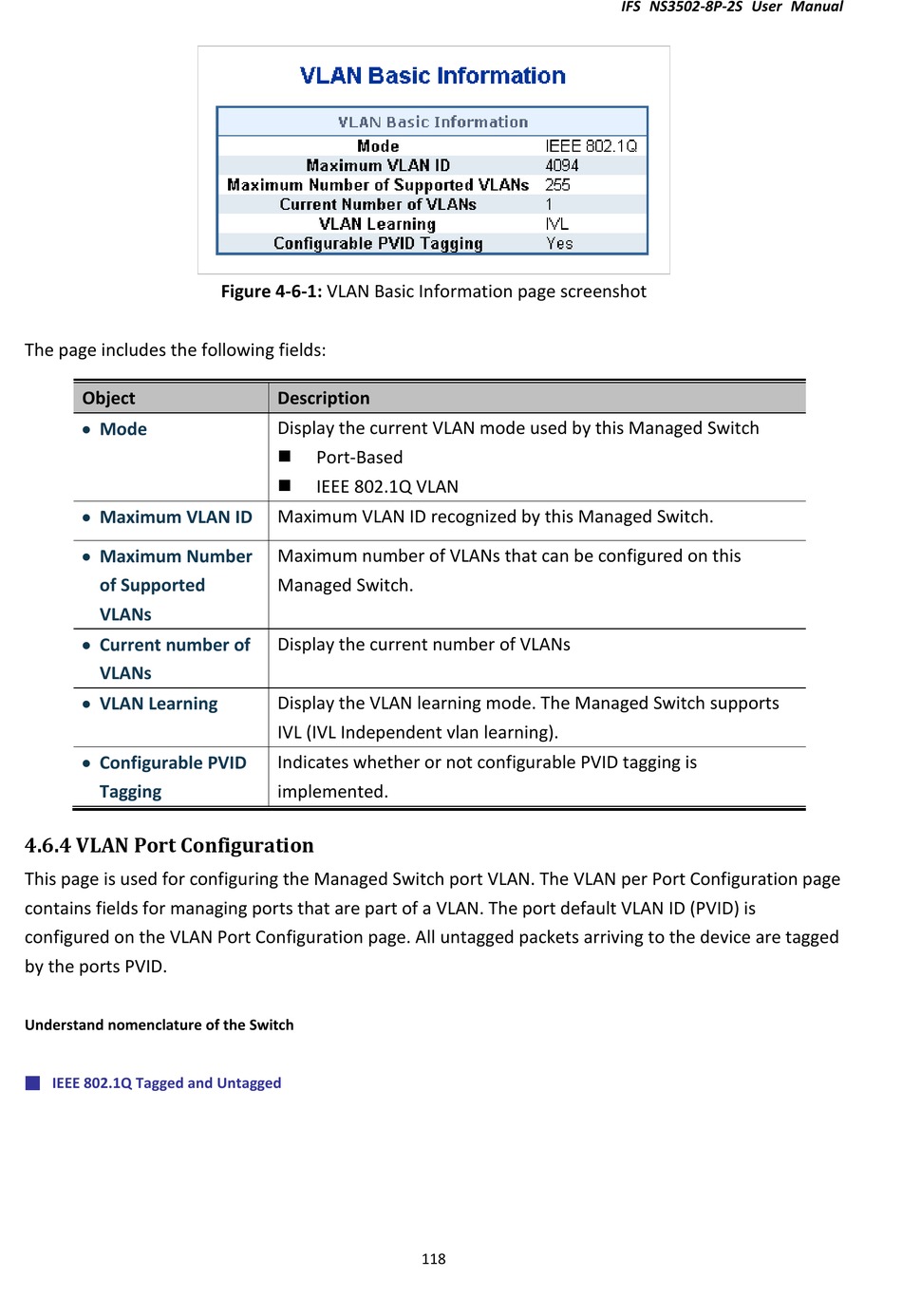

Figure 4-6-1: VLAN Basic Information page screenshot
Description
Display the current VLAN mode used by this Managed Switch
Port-Based

IEEE 802.1Q VLAN

Maximum VLAN ID recognized by this Managed Switch.
Maximum number of VLANs that can be configured on this
Managed Switch.
Display the current number of VLANs
Display the VLAN learning mode. The Managed Switch supports
IVL (IVL Independent vlan learning).
Indicates whether or not configurable PVID tagging is
implemented.
118
