Interlogix POC2502 Series Quick Start Manual

IFS POC2502 Series Quick Start Guide
Content
Package Contents 1
Requirements 1
Terminal Setup 2
Logon to Console 2
Configuring IP Address 2
Saving the Configuration via the Console 3
Starting Web Management 3
Starting Long Reach PoE Communication 4
Saving the Configuration via the Web 5
Recovering Back to Default Configuration 6
Contact information 6
This is the IFS NS4802-24P-4S-2X Quick Start Guide. This
document provides basic instructions for installing and using
the IFS NS4802-24P-4S-2X.

Package Contents

Thank you for purchasing IFS - Multi-port Coax + 2-port
10/100/1000T + 2-port 100/1000X SFP Long Reach PoE over
Coaxial Managed Switch

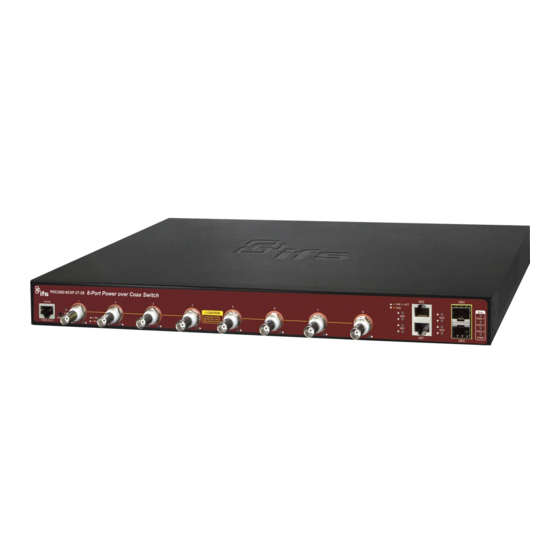

The description of this model is shown below:
8-port Coax + 2-port 10/100/1000T + 2-port
POC2502-
100/1000X SFP Long Reach PoE over Coaxial
8CXP-2T-2S
Managed Switch
16-port Coax + 2-port 10/100/1000T + 2-port
POC2502-
100/1000X SFP Long Reach PoE over Coaxial
16CXP-2T-2S
Managed Switch
"POC2502 Managed Switch" is used as an alternative name
in this Quick Installation Guide.
Open the box of the POC2502 Managed Switch and carefully
unpack it. The box should contain the following items:
• The POC2502 Managed Switch x 1
• Quick Installation Guide x 1
• Rubber Feet x 4
• Power Cord x 1
P/N 1073046 • REV A • 10SEP15
• RS-232 to RJ45 Console Cable x 1
• SFP Dust Cap x 2
• BNC Female Dust Cap x 8 (POC2502-8CXP)
• BNC Female Dust Cap x 16 (POC2502-16CXP)
• Warning Sticker x 8 (POC2502-8CXP)
• Warning Sticker x 16 (POC2502-16CXP)
• Rack-mount Accessory Kit x 1
If any item is found missing or damaged, please contact your
local reseller for replacement.

Requirements

•
Workstations running Windows XP/2003/Vista/7/8/2008, or
other platforms are compatible with TCP/IP protocols.
•
Workstations are installed with Ethernet NIC (Network
Interface Card)
•
Serial Port Connection (Terminal)
• The above Workstations come with COM Port (DB9) or
USB-to-RS232 converter.
• The above Workstations have been installed with
terminal emulator, such as Hyper Terminal included in
Windows XP/2003.
• Serial cable -- one end is attached to the RS232 serial
port, while the others end to the console port of the
Managed Switch.
• Ethernet Port Connection
• Network cables -- Use standard network (UTP) cables
with RJ45 connectors.
• The above PC is installed with Web Browser and JAVA
runtime environment plug-in.
1
