4.10.4 ACL Ports Configuration

Configure the ACL parameters (ACE) of each switch port. These parameters will affect frames received
on a port unless the frame matches a specific ACE.
The ACL Ports Configuration screen in
The page includes the following fields:
Object
•
Port
•
Policy ID
•
Action
• Rate Limiter ID
•
Port Copy
• Mirror
Figure 4-10-4

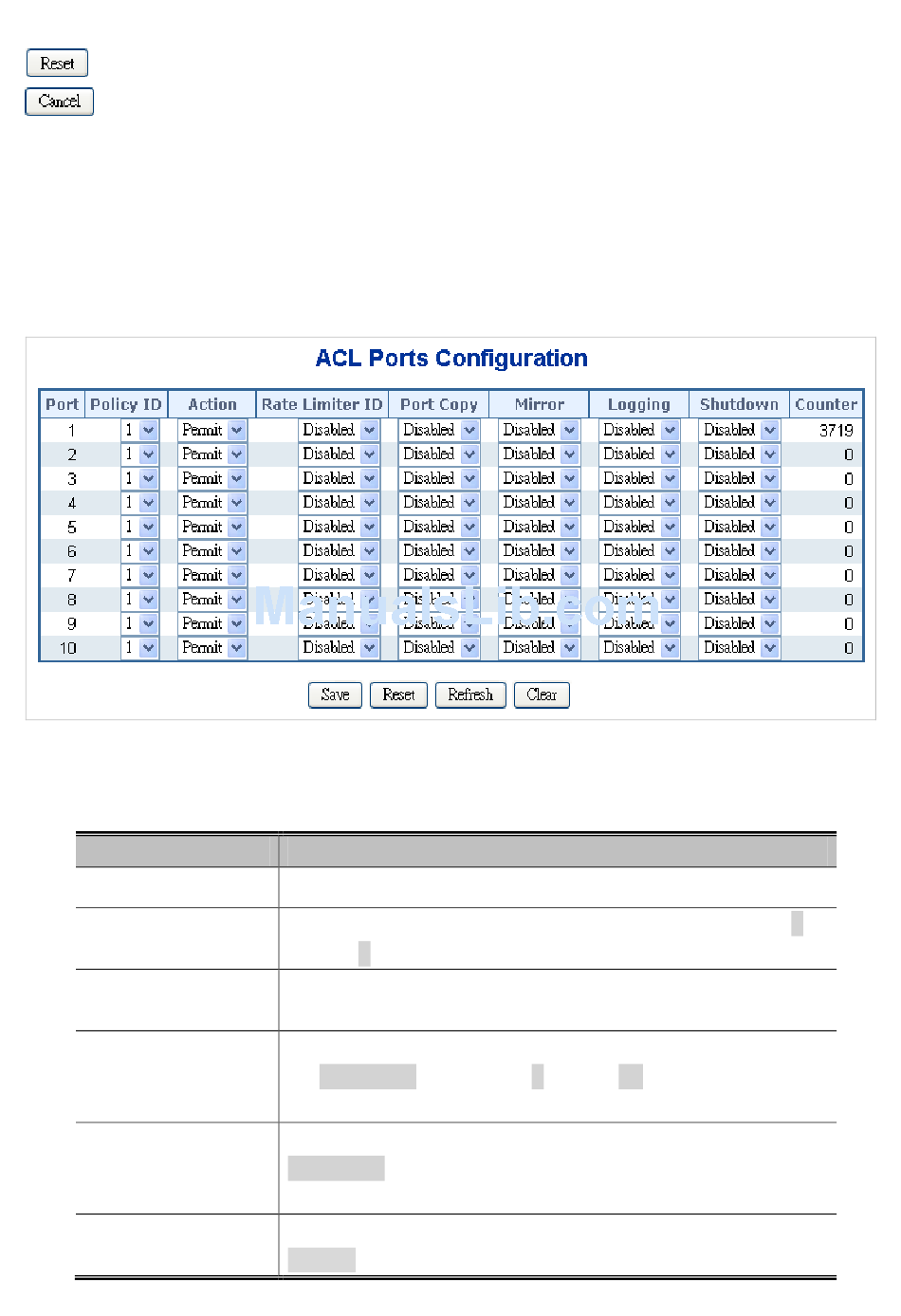

Figure 4-10-4: ACL Ports Configuration page screenshot
Description
The logical port for the settings contained in the same row.
Select the policy to apply to this port. The allowed values are 1
through 8. The default value is 1.
Select whether forwarding is permitted ("Permit") or denied
("Deny"). The default value is "Permit".
Select which rate limiter to apply to this port. The allowed values
are Disabled or the values 1 through 15. The default value is
"Disabled".
Select which port frames are copied to. The allowed values are
Disabled or a specific port number. The default value is
"Disabled".
Specify the mirror operation of this port. The allowed values are:
Enabled: Frames received on the port are mirrored.
appears.
