Lubrication Points

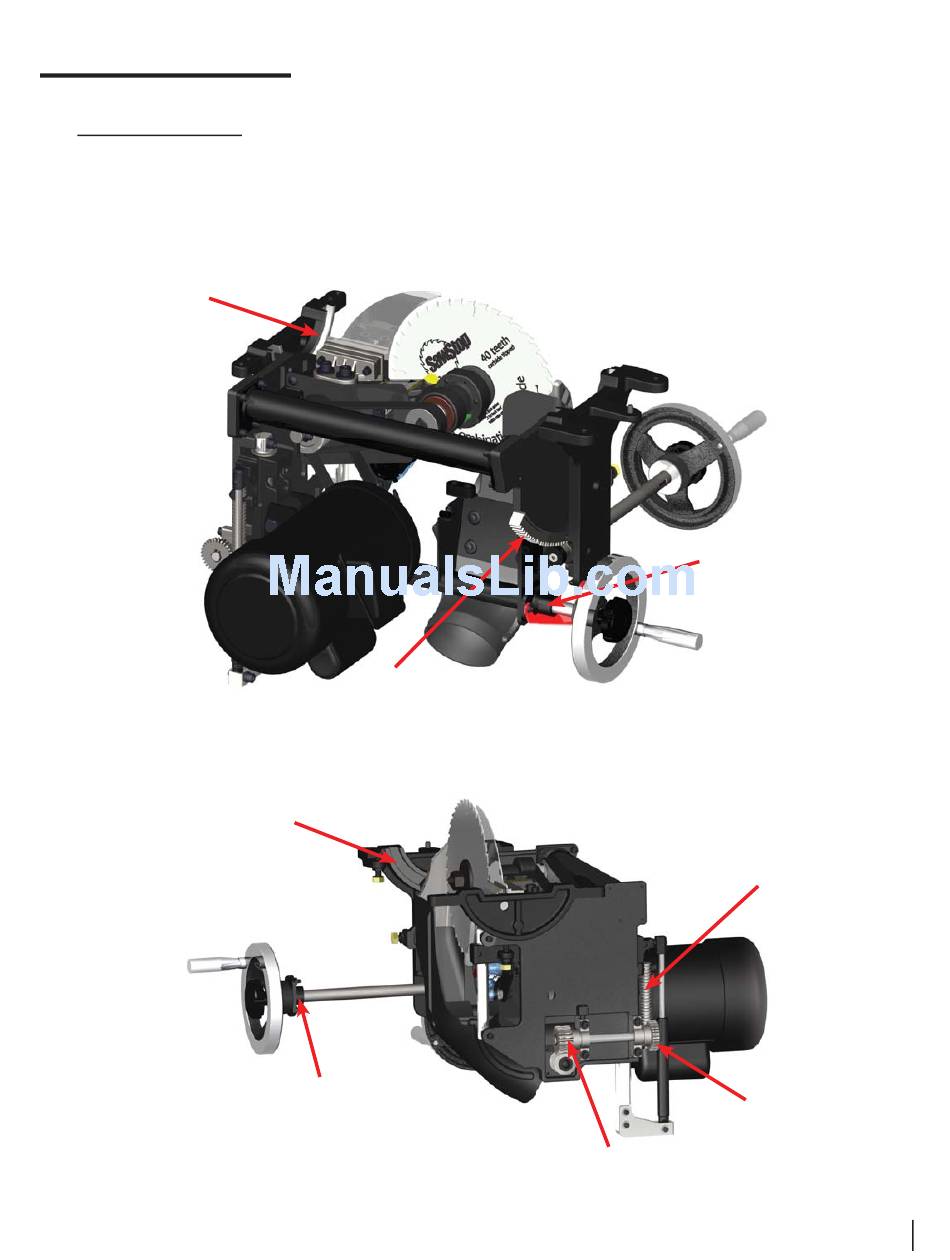

Points that need to be kept lubricated are shown in the fi gures below. The front trunnion, rear trunnion, and sec-
tor gear are most easily accessed through the motor cover opening with the blade tilted to 45º. The sector gear
should be lubricated on both sides that run along the teeth as well as the teeth. The worm gear and threaded
rod can be accessed through the rear access panel with the blade tilted to 45º.
rear trunnion
bracket
front trunnion
bracket
sector gear
Fig. 138
tilt handwheel
shaft bushing
Fig. 139
elevation handwheel
shaft bushing
threaded rod
pinion gear
worm gear
