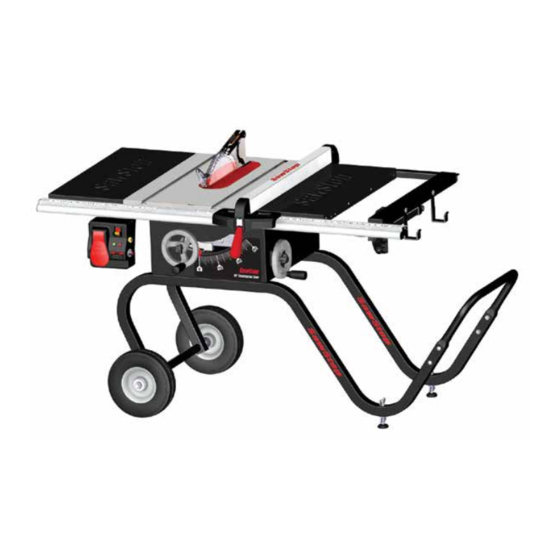

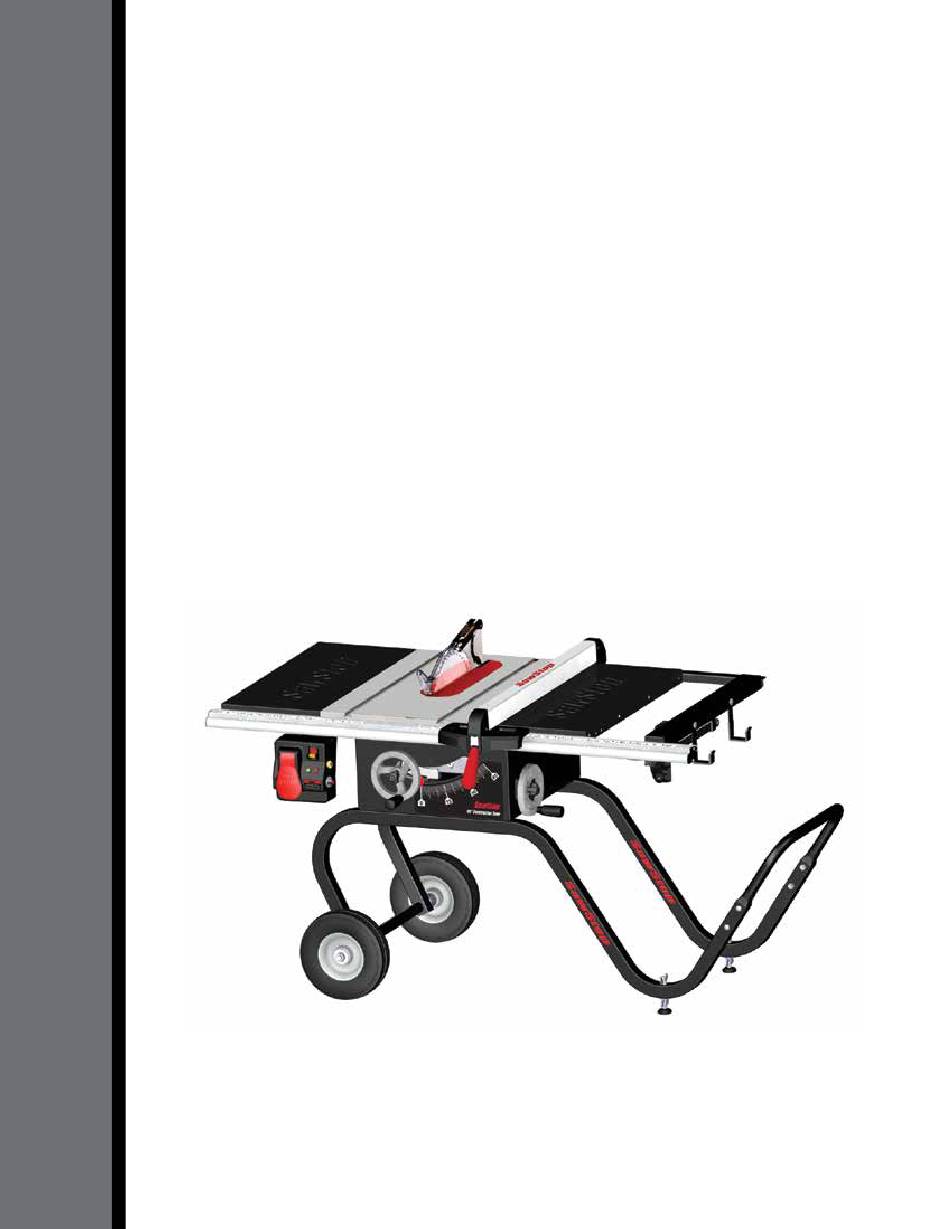

- Page 1 SawStop ® Contractor Saw Mobile Cart OWNER’S MANUAL Model MC-CNS...
-
Page 2: Warranty
SawStop Contractor Fence Assembly or 36” T-Glide Fence System only. Note: If you have a SawStop 30” Out-Feed Table attached to your saw, you must remove it before using the SawStop Contractor Saw Mobile Cart to move your saw or you can damage the out-feed table. -
Page 3: Wheel Axle
Lock Nuts, M10 (4) Spacers, (2) Lock Nuts, 5/8” (2) M8 (4) M17.5 x 40 (2) M16 x 31 (2) Wing Nuts, 3/8” (4) Model MC-CNS hardware pack 6 mm hex key owner’s manual SawStop Contractor Saw Mobile Cart ®... - Page 4 If you are missing the hardware pack or any of the other mobile cart components, call the SawStop Service CNS Mobile Cart Hardware Pack Department at 503-582-9934 for replacements.
- Page 5 Secure each wheel to the wheel axle with one M16 x 31 washer and one ⁄ inch lock nut (see Fig. 6). Fully tighten the lock nuts with a 1 inch wrench or an adjustable wrench. Fig. 6 SawStop Contractor Saw Mobile Cart ®...
- Page 6 9. Use a 17 mm wrench and the included 6 mm hex key to mount the handle in place with four M10 x 50 button head socket bolts and four M10 lock nuts (see Fig. 9). Fig. 9 SawStop Contractor Saw Mobile Cart ®...
- Page 7 Assembling Your Contractor Saw Mobile Cart 10. The mobile cart is now ready to support a SawStop Contractor Saw. With the help of an assistant, pick up the saw and carefully set it on the mobile cart. Make sure the front of the saw is oriented so the mobile cart handle is to the right, as shown in Fig.
- Page 8 Fig. 13 Congratulations, your mobile cart is now assembled. If your saw is new, proceed to step 15 in your contractor saw assembly instructions to complete the assembly of your saw. SawStop Contractor Saw Mobile Cart ®...
- Page 9 Using Your Contractor Saw Mobile Cart Note: If you have a SawStop 30” Out-Feed Table attached to your saw, you must remove it before using the SawStop Contractor Saw Mobile Cart to move your saw or you can damage the out-feed table.
- Page 10 2. Unplug the saw before moving it. 5. Lower the saw slowly, do not let it 3. Never lift the cart handle above your waist. drop back to the ground. SawStop Contractor Saw Mobile Cart ®...
- Page 11 Contractor Saw Mobile Cart Parts List Description Part No. Qty. Contractor Saw Mobile Cart Assembly MC-CNS 5/8” Lock Washer MC-CNS-101 5/8”-11 Hex Jam Nut MC-CNS-102 Plastic Spacer MC-CNS-103 M17x40x2.25 Washer MC-CNS-104 Wheel Axle Spacer MC-CNS-105 M16x31x2 Washer MC-CNS-106 5/8”-11 Lock Nut...
- Page 12 Tualatin, Oregon 97062 www.sawstop.com Main Phone - (503) 570-3200 Service - (503) 582-9934 Fax - (503) 570-3303 Email: info@sawstop.com Updates of this manual may be available at www.sawstop.com. © SawStop, LLC All Rights Reserved. July 2016 M CNS 19 0002 00...
