Summary of Contents for SawStop MB-CNS-000
- Page 1 SawStop ® Contractor Saw Mobile Base OWNER’S MANUAL Model MB-CNS-000...
- Page 2 Note: If you are using the SawStop Out-Feed Table you must remove it before moving your saw with the Contractor Saw Mobile Base. Attempting to lift the saw with the out-feed table attached may damage the out-feed table.

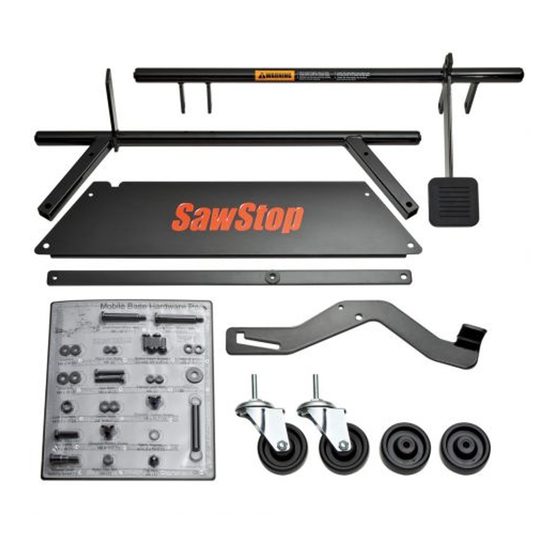

- Page 3 Button Head Socket Lock Washers, M6 x 16 (4) 3 M8 x 13.6 (4) 6 M6 (2) Screws, M8 x 20 (4) base components, call the SawStop Service Department at 503-582-9934 for replacements. Washers, Hex Bolts, Flange Lock Nuts, Washers,...
- Page 4 Fig. 5. Note that the connecting lever on the caster support and the connecting SawStop logo on the support plate both face up. lever Secure the support plate to the caster support with two M6 x 40 hex bolts, two M6 washers, and two M6 flange lock nuts.
- Page 5 Fig. 6a. Make sure that the SawStop logo on the support plate is facing up and that the connecting lever is on the inside of the stand.
- Page 6 Fig. 10. Fully tighten the shoulder socket screw with a 5 mm hex key. linkage bar Fig. 10 SawStop Contractor Mobile Base ®...
- Page 7 Slide one end of the extension spring over the larger shoulder (see Fig. 13). Fig. 13 SawStop Contractor Mobile Base ®...
- Page 8 M8 x 30 hex screw to hold the extension spring in place (see Fig. 16) , and fully tighten the cap nut with two 13 mm wrenches. Fig. 16 Congratulations, your mobile base is now installed. SawStop Contractor Mobile Base ®...
- Page 9 You do not need an additional arm extending out from the mobile base to support your extension table. However, if you have a SawStop 30” Out-Feed Table attached you must remove it before using the mobile base to move your saw.
- Page 10 2. Always use the saw and the mobile 4. Lower the saw slowly, do not let it base on a level surface. drop back to the floor. SawStop Contractor Mobile Base ®...
- Page 11 MB-CNS-024 Caster Support Plate MB-CNS-025 3” Wheel MB-CNS-026 3” Caster MB-CNS-027 Foot Pad MB-CNS-028 Plastic Spacer (Adhesive Backed) MB-CNS-029 SawStop Logo Label MB-CNS-030 Main Warning Label MB-CNS-031 Finger/Toe Warning Label MB-CNS-032 Raise Label MB-CNS-033 Lower Label MB-CNS-034 Owner’s Manual MB-CNS-035...
- Page 12 SawStop disclaims any and all other express or implied warranties, including merchantability and fitness for a particular purpose. SawStop shall not be liable for death, injuries to persons or property, or incidental, consequential, contingent or special damages arising from the use of the mobile base.
