2nd printing, February 2018 Updates of this manual may be available at www.sawstop.com SawStop, the SawStop blade logo, and the configuration of this product are either registered trademarks or trademarks of SawStop, LLC. Software copyright by SawStop, LLC. All rights reserved.
Page 3

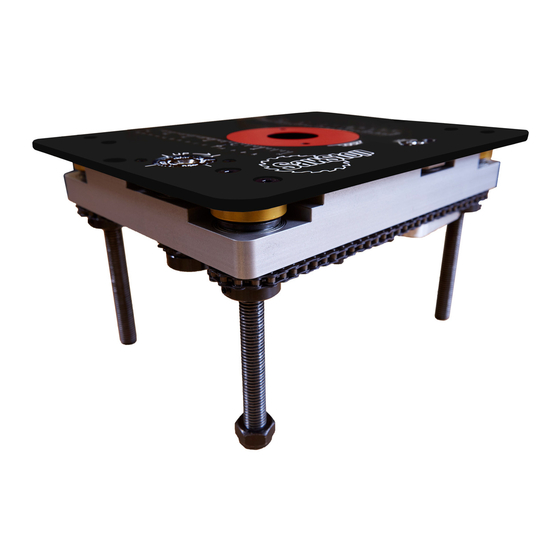

TO OUR CUSTOMERS Thank you for purchasing the SawStop Four-Post Router Lift with Lock and/or Downdraft Dust Collection Box. We are confident you will be pleased with the quality and performance. This manual tells you more about the Router Lift, Downdraft Dust Collection Box, and how to operate and maintain them.
Page 4
HOW TO GET HELP Missing Parts? Have Questions? Our technical support team is standing by M-F, 6:30am-5pm PST to help with whatever you need. Give us a call at 503.582.9934 Email us at SERVICE@SAWSTOP.COM...
TABLE OF CONTENTS Product Specifications................. Parts Inventory..................Parts & Hardware Lists....................Assembling the Router Lift and Installing the Router......Router Lift Maintenance and Adjustments........... Adjusting the Elevation Chain Tension................Assembling the Downdraft Dust Collection Box........Operations................... Safety for the Downdraft Dust Collection Box.............. Reference....................
3 ¾” Diameter Maximum Router Diameter 4 ¼” Minimum Router Diameter 3 ¼” The Downdraft Dust Collection Box is compatible with the SawStop Router Lift (RT-LFT) and SawStop Router Tables. Downdraft Dust Collection Box L 13” x Dust Box Dimensions W 10”...
You will also need the following tools to complete the router lift assembly and installation: • • Phillips Head Screwdriver 8mm Hex Wrench • • 4mm Hex Wrench (Included) 10mm Wrench See Exploded View #1 on page 23 for more information. RT-LFT/RT-DCB OWNER’S MANUAL...
Page 8
M6 x 1.0 x 12 Hex Head Bolt (6) You will also need the following tools to complete the dust collection box assembly and installation: • Phillips Head Screwdriver • 10mm Wrench See Exploded View #2 on page 27 for more information. RT-LFT/RT-DCB OWNER’S MANUAL...
Page 9
For example, a part referenced as “1.1” would be the part labeled with a “1.1” balloon in the exploded view #1. • Exploded View #1: Four-Post Router Lift with Lock – See page 23 • Exploded View #2: Downdraft Dust Collection Box – See page 27 RT-LFT/RT-DCB OWNER’S MANUAL...
ASSEMBLING THE ROUTER LIFT PAGES: AND INSTALLING THE ROUTER 5-11 Requires: Router Lift (RT-LFT) and Accompanying Components 10mm Wrench 8mm Hex Wrench 4mm Hex Wrench Phillips Screwdriver Level or Straightedge The clamp on the router lift can accommodate a router up to 4.2” in diameter. For smaller routers, you may need to use the 3.5”...
Page 11
(1.45) securing the clamp. You may want to loosen the hex jam nuts (1.43) on the screw to help open the clamp (refer to exploded view on page 23 for clearer view of hex jam nuts). 1.45 RT-LFT/RT-DCB OWNER’S MANUAL...
Page 12
Short distance the router in the router reducer collar between top of in order to make sure that the router router body is close to, but not touching, the and router plate underside of the aluminum router plate. RT-LFT/RT-DCB OWNER’S MANUAL...
Page 13
The router bit should be able to be changed at this router elevation. NEVER PERFORM ANY MAINTENANCE OR ADJUSTMENTS ON YOUR ROUTER, ROUTER TABLE, LIFT, STAND, OR SAW UNLESS THE ROUTER IS SAFELY UNPLUGGED. RT-LFT/RT-DCB OWNER’S MANUAL...
Page 14
(1.13) into each of the exposed holes on the edges of the aluminum router plate. Use a 4mm hex wrench to tighten the screws. Recheck the alignment of the aluminum router plate and make any necessary adjustments. RT-LFT/RT-DCB OWNER’S MANUAL...
Page 15
Leave enough excess power cord (i.e., approximately 18”) between the bottom of the router and the power cord clamp to allow the router and router lift to be lifted all the way out of the opening in the router table. Turn the insert ring counter-clockwise to reinstall. RT-LFT/RT-DCB OWNER’S MANUAL...
Page 16
THE STARTING PIN SHOULD ONLY BE USED FOR TEMPLATE ROUTING OR FREEHAND ROUTING. Congratulations! You have completed the Router Lift assembly and installation. RT-LFT/RT-DCB OWNER’S MANUAL...
Refer to the figures on page 13 for reference. Slide the socket head cap screw in the elongated hole in the carriage plate by pushing the sprocket away from the outer edge of the carriage plate. This will increase the tension on the elevation chain. RT-LFT/RT-DCB OWNER’S MANUAL...
Page 18
Hold the sprocket in place and use a 6mm hex wrench to tighten the socket head cap screw (1.21) to secure the sprocket. Turn the router lift back over and reinstall it in the router table using the two flat head socket screws (1.13). 1.13 1.13 1.22 1.21 1.45 OFFSET SPROCKET RT-LFT/RT-DCB OWNER’S MANUAL...
Downdraft Dust Collection Box Parts Phillips Screwdriver 10mm Wrench The Downdraft Dust Collection Box is compatible with all SawStop Router Tables, and all have the same installation procedure. 27” x 16” Table shown for reference. Assemble the Downdraft Dust Collection Box upside down (so the bottom panel is on top).
Page 20
27” x 16” cast iron router table, you may want to remove the rear panel of the stand to accommodate installation of the Downdraft Dust Collection Box, and reattach the rear panel after the dust box is attached. RT-LFT/RT-DCB OWNER’S MANUAL...
Page 21
Follow the instructions in your router table manual to install your fence For this step, please refer to your assembly on the router table. (You can router table and fence manual. download copies of your manuals at www.sawstop.com.) RT-LFT/RT-DCB OWNER’S MANUAL...
Page 22
Make sure that both ends of the dust hose are securely connected and tightly sealed. ALWAYS TURN THE DUST COLLECTION SYSTEM ON BEFORE STARTING YOUR ROUTER, AND TURN THE DUST COLLECTION SYSTEM OFF AFTER STOPPING YOUR ROUTER. RT-LFT/RT-DCB OWNER’S MANUAL...
3. The adjustable vent can be used to change the airflow through your Downdraft Dust Collection Box to match the power of your dust collector. The optimum position of the adjustable vent depends on the configuration of your router and power of your dust collector. RT-LFT/RT-DCB OWNER’S MANUAL...
Four-Post Router Lift with Lock/Downdraft Dust Collection Box for Router Lift systems are modified without the prior written permission of SawStop, LLC, or if the Four-Post Router Lift with Lock/Downdraft Dust Collection Box for Router Lift systems are...
Some of these hazards are discussed below. Use common sense when operating your router and the SawStop Router Lift with Lock and use them only as instructed. Make sure to follow the safety rules and guidelines that are outlined in the manual of your specific router.
Page 26
Router Lift and Downdraft Dust Collection Box. Any parts that are damaged should be properly repaired or replaced. RT-LFT/RT-DCB OWNER’S MANUAL...
Page 27
This page is intentionally blank. RT-LFT/RT-DCB OWNER’S MANUAL...
• Stackable featherboards for extra support for taller stock • Easy-grip lock knobs • Compatible with all SawStop Router Tables and Fences Single Vertical Feather Board for Router Tables RT-VFS • Holds your workpiece safely against the router fence for added stability •...
Page 35
Downdraft Dust Collection Box for Router Tables RT-DCB • Collects below-table dust • Connects to 4" dust tube • Compatible with all SawStop Router Tables Flip Stop for Router Fence RT-FLS • Designed to quickly give you accurate, repeatable measurements •...
Page 36
SawStop, LLC 11555 SW Myslony St | Tualatin, Oregon 97062 USA www.sawstop.com Main Phone: (503) 570-3200 Service: (503) 582-9934 Fax: (503) 570-3303 Email: info@sawstop.com February 2018 M RTR 19 0002 00...
