Get to Know Your Saw
28
23
24
25
27
26
43
39
42
30
31
40
Fig. 34
32
35
36
Fig. 35
29
21
22
33
25
41
34
38
37

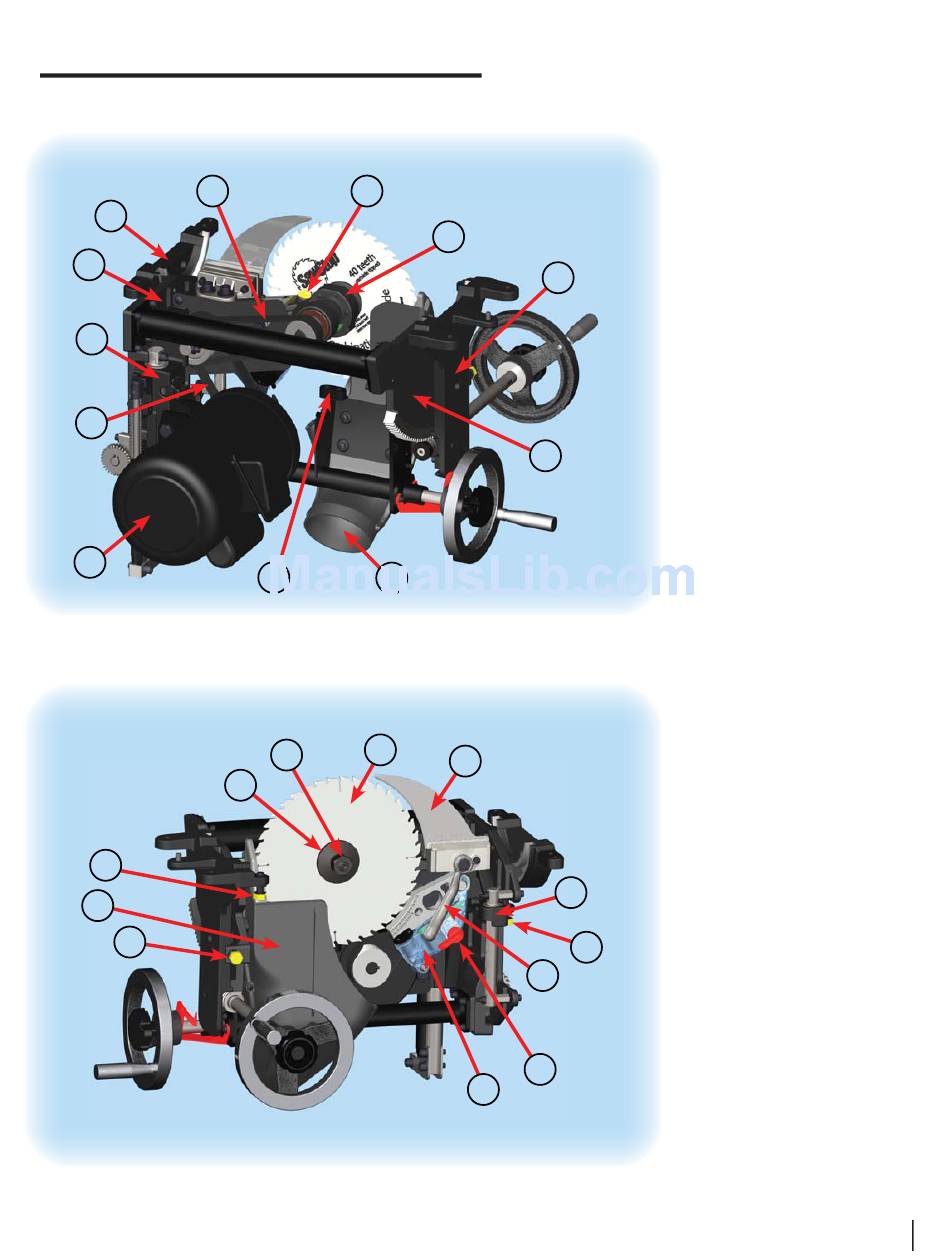

SawStop 10" Professional Cabinet Saw
Internal Components
21.
Front Trunnion Bracket
22.
Front Trunnion
23.
Rear Trunnion Bracket
24.
Rear Trunnion
25.
Elevation Plate
26.
Motor
27.
Motor Belt
28.
Arbor Belt
29.
Arbor Block
30.
Brake Positioning Bolt
31.
Arbor Bumper
32.
Saw Blade
33.
Riving Knife
34.
Quick-Release Clamp Handle
35.
Arbor Nut
36.
Arbor Washer
37.
Brake Cartridge
38.
Cartridge Key
39.
Dust Shroud
40.
Dust Port
41.
Upper Elevation Limit Stop
42.
0º Tilt Limit Stop
43.
45º Tilt Limit Stop
27
