Assembling Your Saw

The instructions to assemble your Professional Cabinet Saw are listed below. In addition to the tools included
with the Table Saw Hardware Pack (shown in Fig. 5 below) you will also need the following tools to complete the
assembly:
• a Phillips screwdriver
• a 13 mm wrench
• a 14 mm wrench
• a level or straight edge

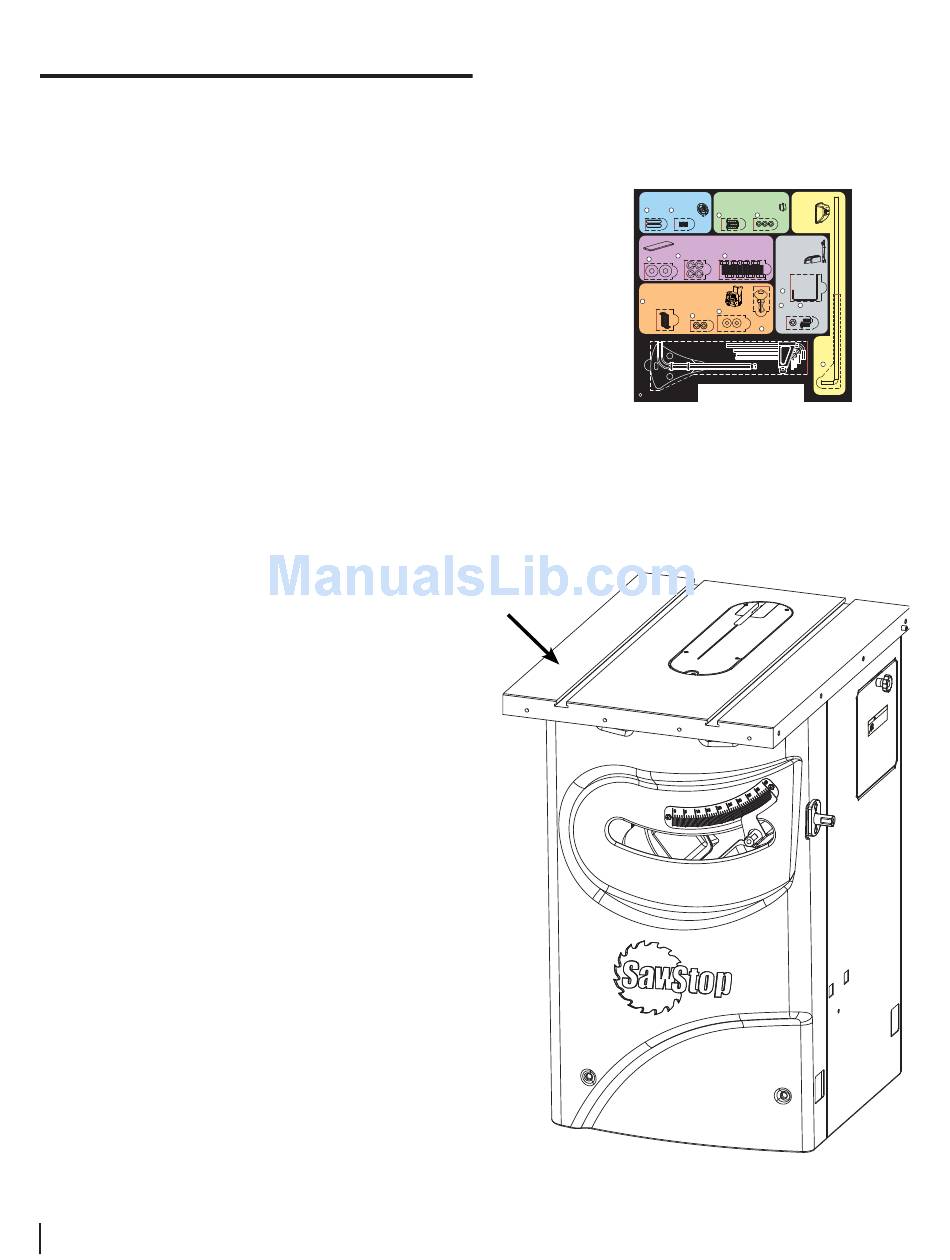

1. Once the saw is in the upright position, remove the plastic covering from the cast iron table top and remove
the yellow label from the top of the table insert. Wipe the oil off the table top with a soft, clean cloth (see
Fig. 6). Do the same for the extension wings. The table top and extension wings are shipped with a coating of
oil to prevent the cast iron from rusting.
NOTE: Before assembling the saw,
make sure that all packaging has been
removed and all parts unpacked.
In particular, DO NOT PROCEED with
the assembly of the saw until the switch
box has been moved to the outside of
the cabinet. (See unpacking poster).
When unpacking
assembly, be careful not to damage the
power cord or the cords attached to the
switch box when cutting the cable ties.
Be sure to remove all cardboard pieces
from the inside of the cabinet.
18 SawStop 10" Professional Cabinet Saw
the switch box
wipe the table top with
a soft, clean cloth
Installing the Handwheels Mounting the Dust Port Mounting
Hardware for Steps 2-3 Hardware for Step 4 the
1 2
Keys, Set Screws, Button Head Screws, Lock Washers,
Motor
5 x 5 x 25 (2) M6 x 8 (2) 3 M5 x 3 x 15 (3) 4 M5 (3)
Cover
Hardware for Step 5
Mounting the Extension Wings Mounting the
Hardware for Step 6 Wrench & Tool
7 Lock Washers, M8 (8) 8 Hex Bolts, M8 x 16 (8) Holders
Washers,
6
M8 (8)
Hardware for Step 8
Blade
Wrench
Holder
Mounting the Switch Box
13
Hardware for Step 7
9 Button Head Socket Screws,
M6 x 20 (2) 14 Lock 15 Button Head
Washers, Screws,
Lock Washers, 11 Washers, M6 (2)
M6 (2) M6 x 12 (2)
10 M6 (2)
Switch Box
Keys (2)
12
Blade Spacing
Motor
Adjustment Gauge (1)
Cover
Hex Key, M8 (1)
Hex Keys: M3 (1), M4 (1), M5 (1), M6 (1)
Tools
F
Fig. 5
Fig. 6
