VoiceFinder AP2120 VoIP Gateway User's Guide Version 1.00
AP2120-A
E0.0
10.10.10.1
800
Phone D
PSTN User A
123-4567
Description) Gateway A's FXO is connected to PSTN directly, Phone B and Phone C
are connected PSTN via Gateway A. Gateway A can block a user coming from
network and to PSTN with security function. There are two possible configurations.
Configuration 1) permit-FXO
Only allow Router B(20.20.20.1) for the calls to FXO voice port.
Caution) If Gatekeeper is configured for the Gateway, this permit-FXO function is
meaningless.
Configuration
router(config)# show dial-peer voice
POTS Peers :
Pots peer 100
dest-pattern = 100
port = 1/0 (0)
AddPac Technology Co., Ltd.

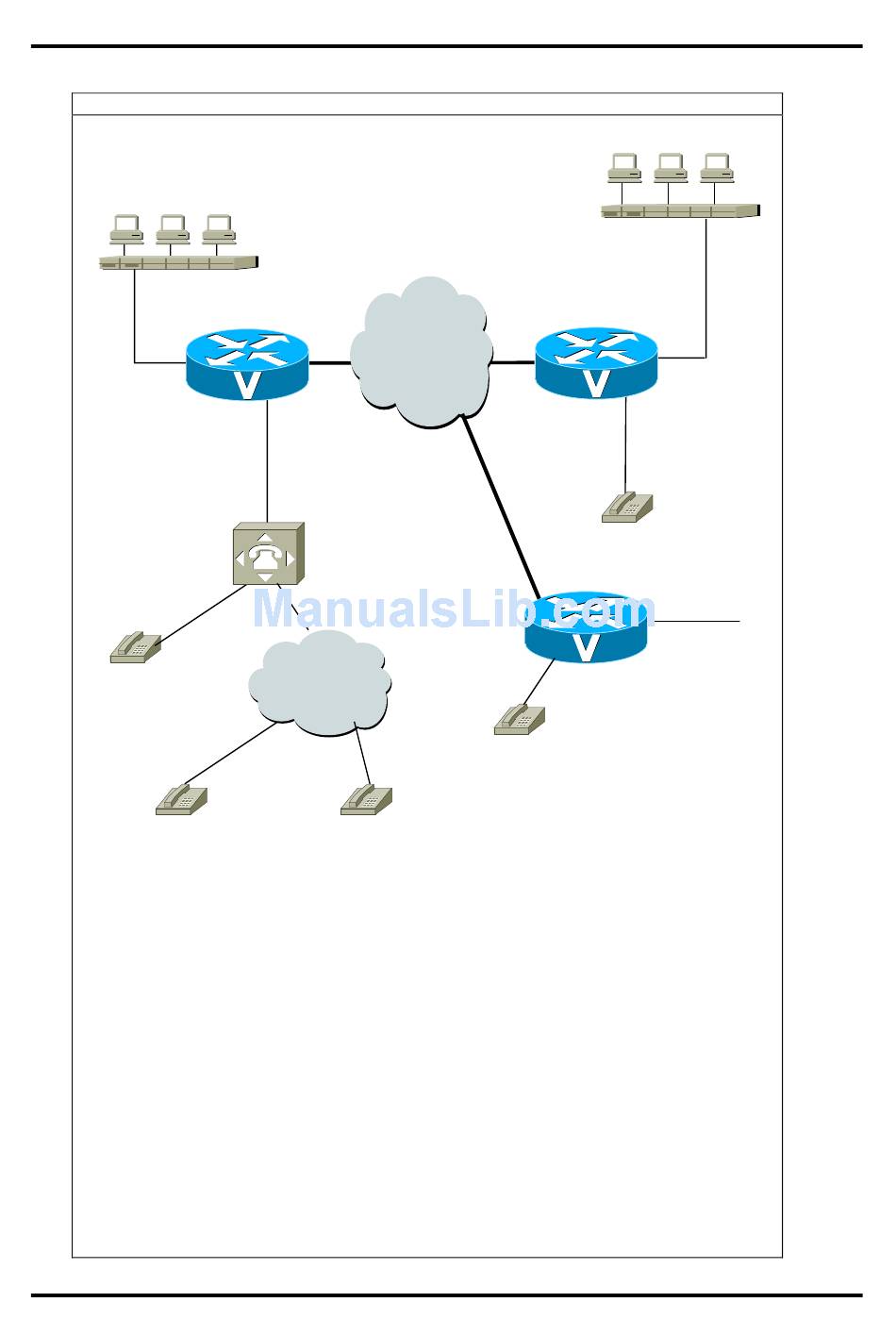

Configuration 8 – FXO Security
S0
IP
Network
FXO
Dial Peer 100 POTS
Voice PORT 1/0
Destination 100
PBX
PSTN
Network
PSTN User B
12-345-6789
LAN HUB
AP2120-B
S0
20.20.20.1
FXS
Dial Peer 200 POTS
Voice PORT 0/0
Destination 200
Phone B
S0
E0.0
30.30.30.1
미등록 VoIP Router
Phone C
E0.0
