10

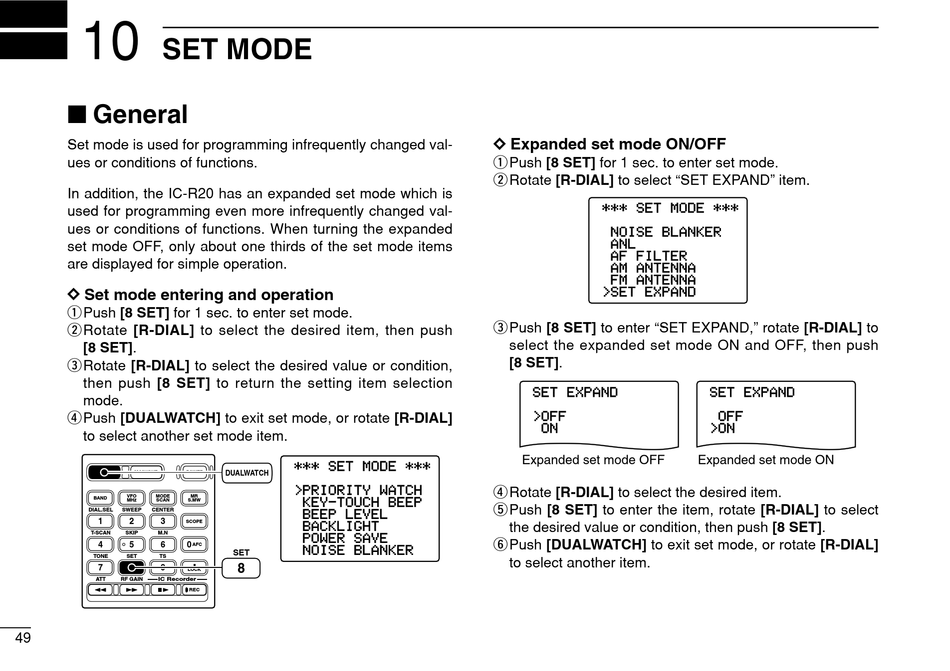

SET MODE

I General

Set mode is used for programming infrequently changed val-
ues or conditions of functions.
In addition, the IC-R20 has an expanded set mode which is
used for programming even more infrequently changed val-
ues or conditions of functions. When turning the expanded
set mode OFF, only about one thirds of the set mode items
are displayed for simple operation.
D D Set mode entering and operation
q Push [8 SET] for 1 sec. to enter set mode.
wRotate [R-DIAL] to select the desired item, then push
[8 SET].
eRotate [R-DIAL] to select the desired value or condition,
then push [8 SET] to return the setting item selection
mode.
rPush [DUALWATCH] to exit set mode, or rotate [R-DIAL]
to select another set mode item.
DUALWATCH MAIN/SUB POWER
VFO MODE MR
BAND
MHz SCAN S.MW
DIAL.SEL SWEEP CENTER
1 2 3
SCOPE
T-SCAN SKIP M.N
4 5 6 0
AFC
TONE SET TS
7 8 9
LOCK
ATT RF GAIN IC Recorder
REC
49
DUALWATCH
SET
8
D D Expanded set mode ON/OFF
q Push [8 SET] for 1 sec. to enter set mode.
w Rotate [R-DIAL] to select "SET EXPAND" item.
ePush [8 SET] to enter "SET EXPAND," rotate [R-DIAL] to
select the expanded set mode ON and OFF, then push
[8 SET].
Expanded set mode OFF
r Rotate [R-DIAL] to select the desired item.
tPush [8 SET] to enter the item, rotate [R-DIAL] to select
the desired value or condition, then push [8 SET].
yPush [DUALWATCH] to exit set mode, or rotate [R-DIAL]
to select another item.
Expanded set mode ON
