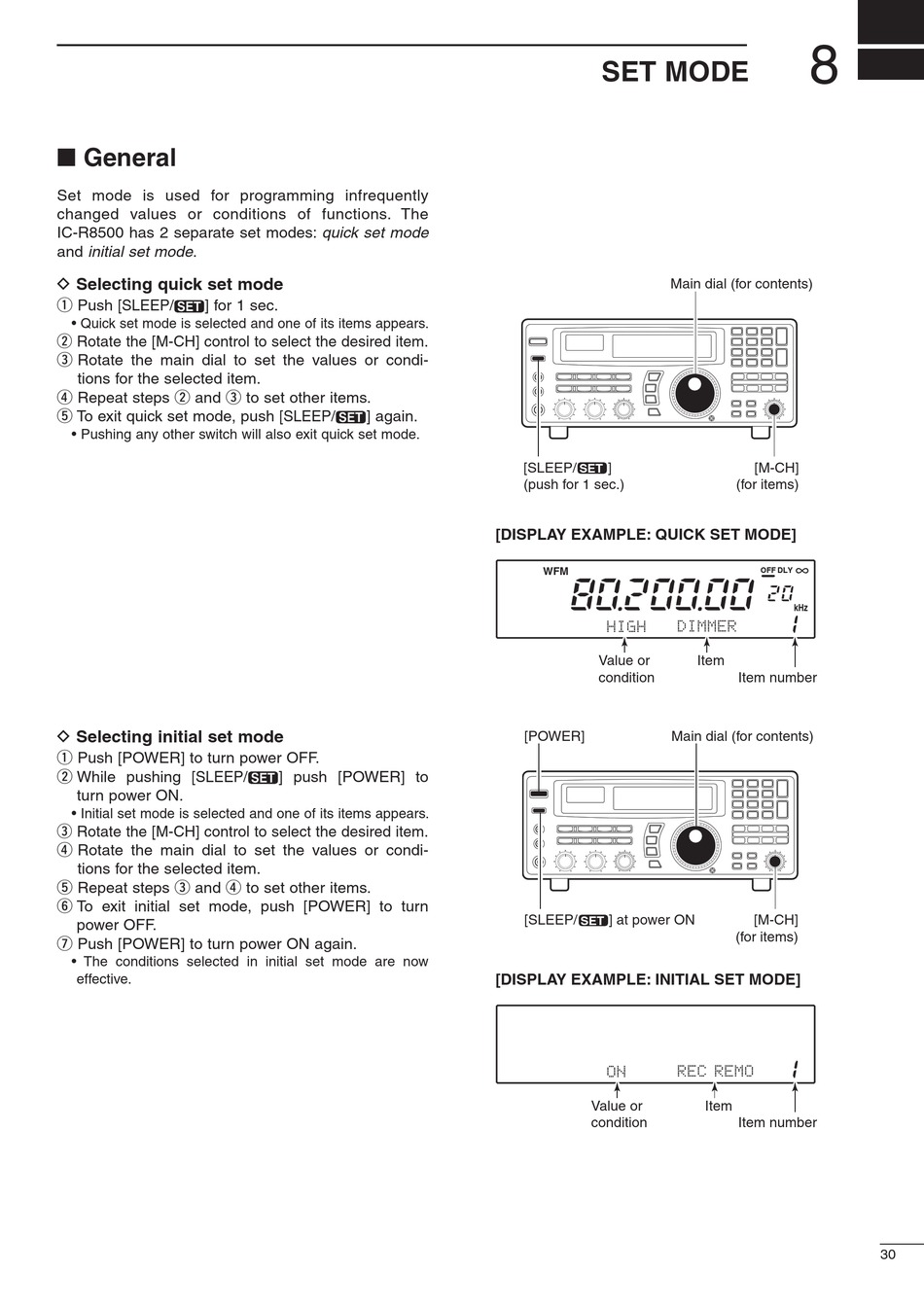

■ General

Set mode is used for programming infrequently
changed values or conditions of functions. The
IC-R8500 has 2 separate set modes: quick set mode
and initial set mode.
D Selecting quick set mode
q Push [SLEEP/ ] for 1 sec.
• Quick set mode is selected and one of its items appears.
w Rotate the [M-CH] control to select the desired item.
e Rotate the main dial to set the values or condi-
tions for the selected item.
r Repeat steps w and e to set other items.
t To exit quick set mode, push [SLEEP/
• Pushing any other switch will also exit quick set mode.
D Selecting initial set mode
q Push [POWER] to turn power OFF.
w While pushing [SLEEP/
turn power ON.
• Initial set mode is selected and one of its items appears.
e Rotate the [M-CH] control to select the desired item.
r Rotate the main dial to set the values or condi-
tions for the selected item.
t Repeat steps e and r to set other items.
y To exit initial set mode, push [POWER] to turn
power OFF.
u Push [POWER] to turn power ON again.
• The conditions selected in initial set mode are now
effective.
] again.
] push [POWER] to

SET MODE

Main dial (for contents)
[SLEEP/ ]
SET
(push for 1 sec.)
[DISPLAY EXAMPLE: QUICK SET MODE]
WFM
HIGH
Value or
condition
[POWER]
[SLEEP/ ] at power ON
SET
[DISPLAY EXAMPLE: INITIAL SET MODE]
ON
Value or
condition
8
SCAN SET
[M-CH]
(for items)
OFF DLY
kHz
DIMMER
Item
Item number
Main dial (for contents)
SCAN SET
[M-CH]
(for items)
REC REMO
Item
Item number
