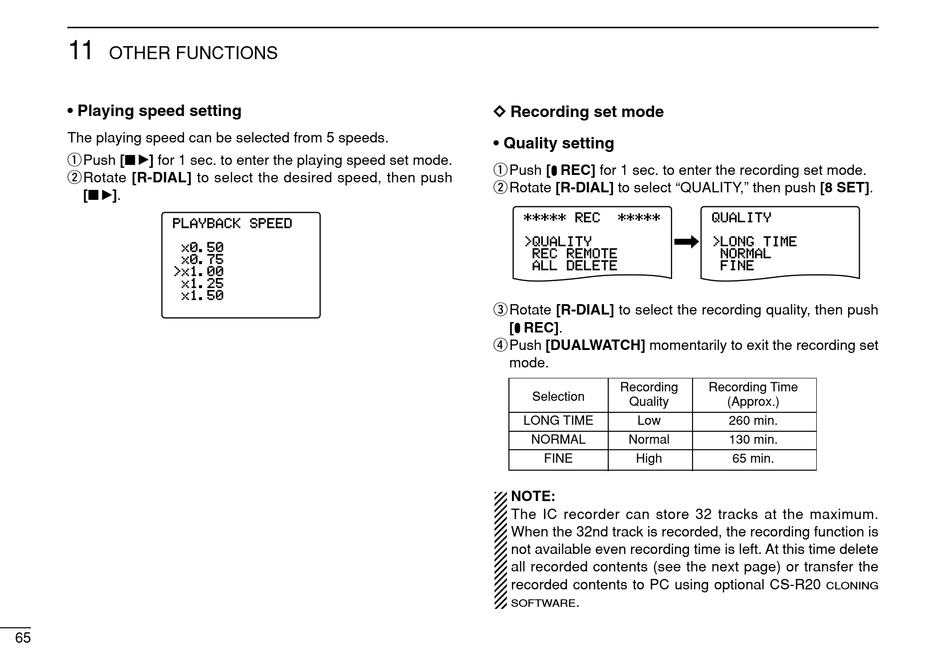

Icom IC-R20 Instruction Manual page 72

11
OTHER FUNCTIONS
• Playing speed setting
The playing speed can be selected from 5 speeds.
qPush [I
≈ ≈ ] for 1 sec. to enter the playing speed set mode.
wRotate [R-DIAL] to select the desired speed, then push
[I ].
≈ ≈
65
D D Recording set mode
• Quality setting
qPush [ REC] for 1 sec. to enter the recording set mode.
wRotate [R-DIAL] to select "QUALITY," then push [8 SET].
eRotate [R-DIAL] to select the recording quality, then push
[ REC].
rPush [DUALWATCH] momentarily to exit the recording set
mode.
Recording
Selection
Quality
LONG TIME Low
NORMAL Normal
FINE High
NOTE:
The IC recorder can store 32 tracks at the maximum.
When the 32nd track is recorded, the recording function is
not available even recording time is left. At this time delete
all recorded contents (see the next page) or transfer the
recorded contents to PC using optional CS-R20
.
SOFTWARE
Recording Time
(Approx.)
260 min.
130 min.
65 min.
CLONING
