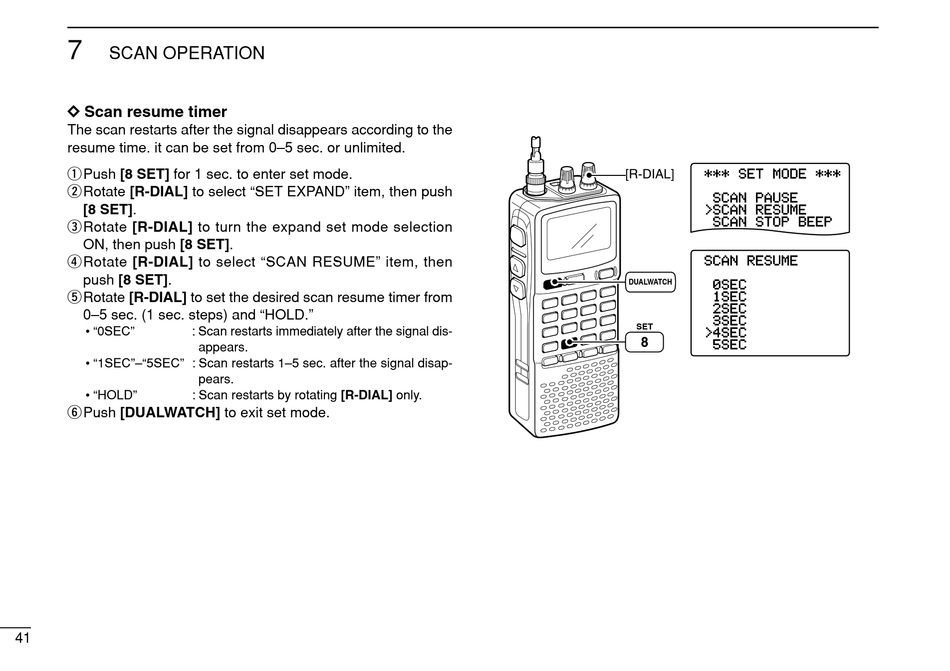

Icom IC-R20 Instruction Manual page 48

7
SCAN OPERATION
D D Scan resume timer
The scan restarts after the signal disappears according to the
resume time. it can be set from 0–5 sec. or unlimited.
q Push [8 SET] for 1 sec. to enter set mode.
wRotate [R-DIAL] to select "SET EXPAND" item, then push
[8 SET].
eRotate [R-DIAL] to turn the expand set mode selection
ON, then push [8 SET].
rRotate [R-DIAL] to select "SCAN RESUME" item, then
push [8 SET].
tRotate [R-DIAL] to set the desired scan resume timer from
0–5 sec. (1 sec. steps) and "HOLD."
• "0SEC" : Scan restarts immediately after the signal dis-
• "1SEC"–"5SEC" : Scan restarts 1–5 sec. after the signal disap-
• "HOLD" : Scan restarts by rotating [R-DIAL] only.
y Push [DUALWATCH] to exit set mode.
41
appears.
pears.
[R-DIAL]
DUALWATCH
SET
8
