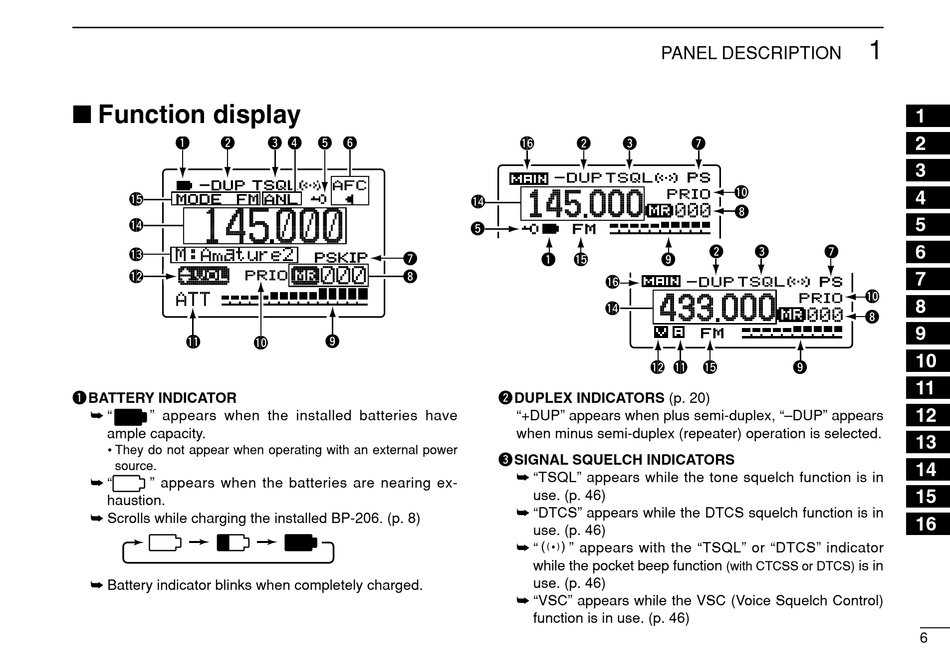

I Function Display - Icom IC-R20 Instruction Manual

I Function display

q w
!5
145 000
!4
!3
√
!2
!1
q BATTERY INDICATOR
➥ "
" appears when the installed batteries have
ample capacity.
• They do not appear when operating with an external power
source.
➥ "
" appears when the batteries are nearing ex-
haustion.
➥ Scrolls while charging the installed BP-206. (p. 8)
➥ Battery indicator blinks when completely charged.
e r t y
u
µ 000 000
i
o
!0
!6 w e
145 000
!4
t
q !5
!6
!4
!2
w DUPLEX INDICATORS (p. 20)
"+DUP" appears when plus semi-duplex, "–DUP" appears
when minus semi-duplex (repeater) operation is selected.
e SIGNAL SQUELCH INDICATORS
➥ "TSQL" appears while the tone squelch function is in
use. (p. 46)
➥ "DTCS" appears while the DTCS squelch function is in
use. (p. 46)
➥ "S" appears with the "TSQL" or "DTCS" indicator
while the pocket beep function
use. (p. 46)
➥ "VSC" appears while the VSC (Voice Squelch Control)
function is in use. (p. 46)
