3

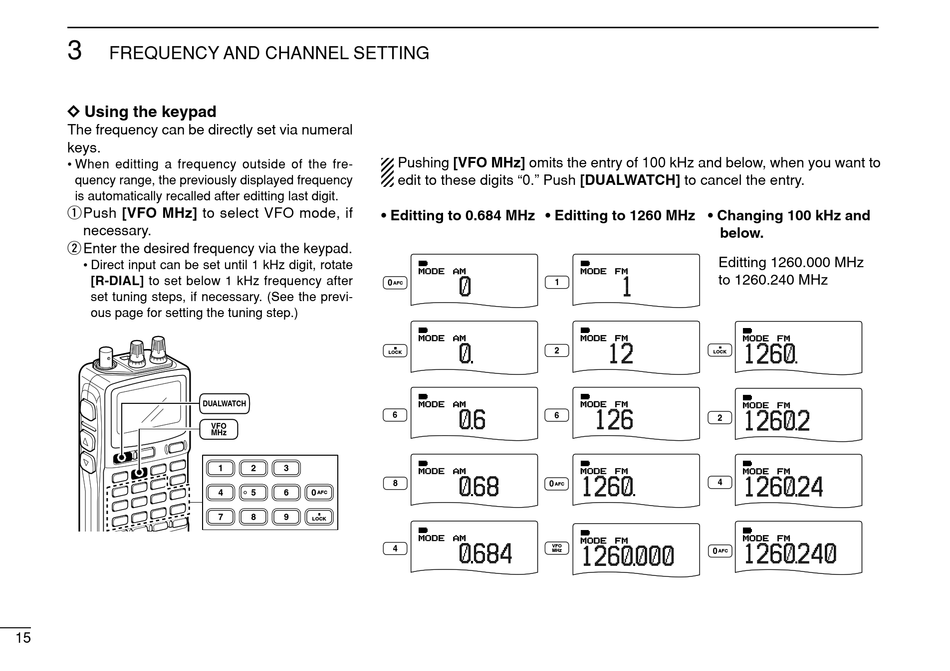

FREQUENCY AND CHANNEL SETTING
D D Using the keypad
The frequency can be directly set via numeral
keys.
• When editting a frequency outside of the fre-
quency range, the previously displayed frequency
is automatically recalled after editting last digit.
qPush [VFO MHz] to select VFO mode, if
necessary.
w Enter the desired frequency via the keypad.
• Direct input can be set until 1 kHz digit, rotate
[R-DIAL] to set below 1 kHz frequency after
set tuning steps, if necessary. (See the previ-
ous page for setting the tuning step.)
15
• Editting to 0.684 MHz • Editting to 1260 MHz • Changing 100 kHz and
DUALWATCH
VFO
MHz
1 2 3
4 5 6 0
AFC
7 8 9
LOCK
Pushing [VFO MHz] omits the entry of 100 kHz and below, when you want to
edit to these digits "0." Push [DUALWATCH] to cancel the entry.
000 010
0 1
AFC
000 010
2
LOCK
000 684
6 6
000 684
8 0
AFC
000 684
VFO
4
MHz
below.
Editting 1260.000 MHz
1 000
to 1260.240 MHz
12 000 1260
LOCK
126 000
1260
2
1260 000
1260
4
1260 240
1260 000
0
AFC
240
240
240
