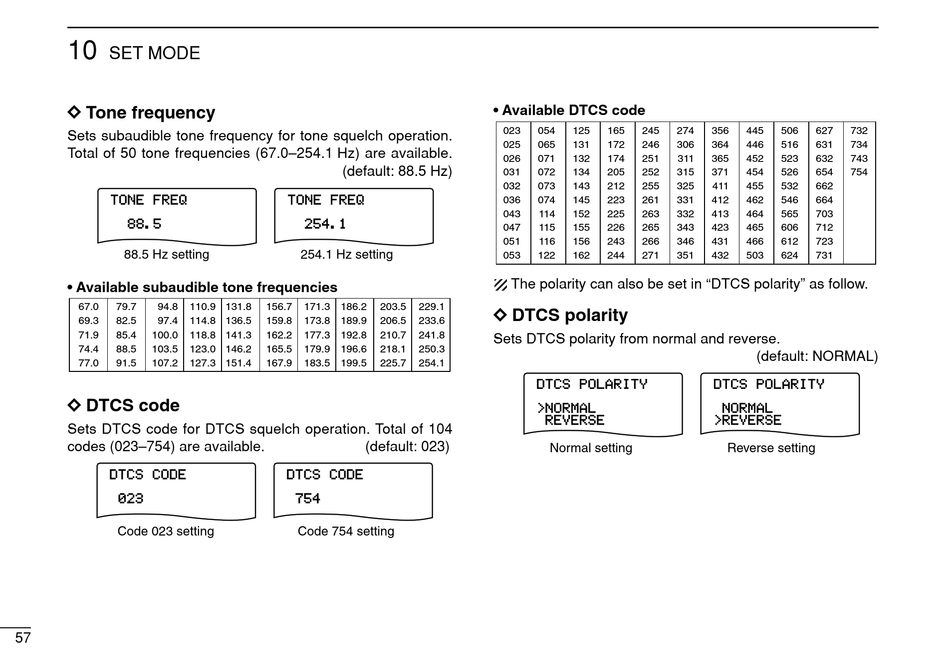

Icom IC-R20 Instruction Manual page 64

10
SET MODE
D D Tone frequency
Sets subaudible tone frequency for tone squelch operation.
Total of 50 tone frequencies (67.0–254.1 Hz) are available.
88.5 Hz setting
• Available subaudible tone frequencies
67.0 79.7 94.8 110.9
69.3 82.5 97.4 114.8
71.9 85.4 100.0 118.8
74.4 88.5 103.5 123.0
77.0 91.5 107.2 127.3
D D DTCS code
Sets DTCS code for DTCS squelch operation. Total of 104
codes (023–754) are available.
Code 023 setting
57
(default: 88.5 Hz)
254.1 Hz setting
131.8 156.7 171.3 186.2 203.5
136.5 159.8 173.8 189.9 206.5
141.3 162.2 177.3 192.8 210.7
146.2 165.5 179.9 196.6 218.1
151.4 167.9 183.5 199.5 225.7
(default: 023)
Code 754 setting
• Available DTCS code
023 054 125
025 065 131
026 071 132
031 072 134
032 073 143
036 074 145
043 114 152
047 115 155
116
051 156
053 122 162
The polarity can also be set in "DTCS polarity" as follow.
