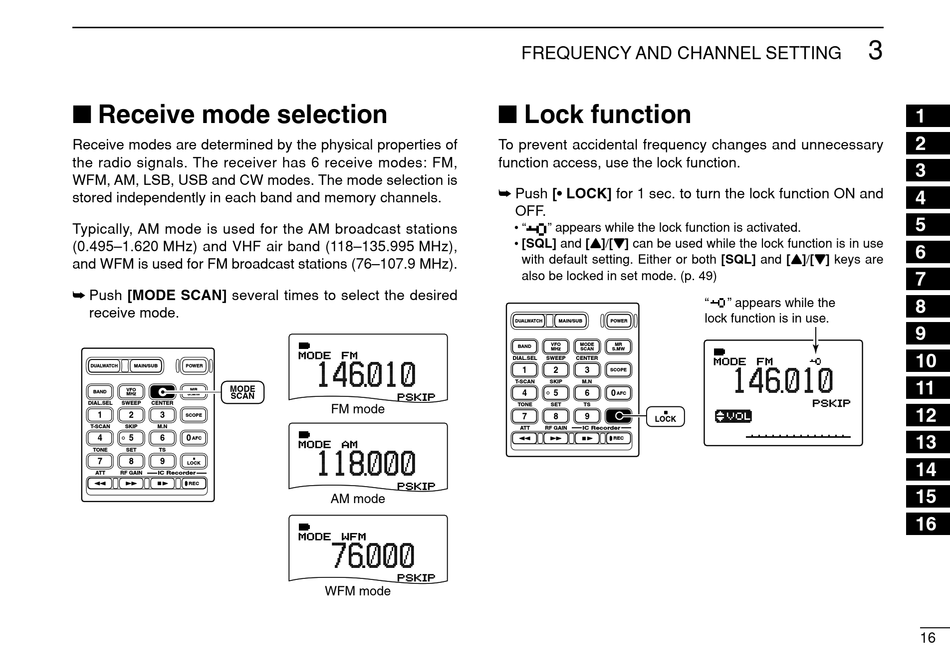

I Receive mode selection

Receive modes are determined by the physical properties of
the radio signals. The receiver has 6 receive modes: FM,
WFM, AM, LSB, USB and CW modes. The mode selection is
stored independently in each band and memory channels.
Typically, AM mode is used for the AM broadcast stations
(0.495–1.620 MHz) and VHF air band (118–135.995 MHz),
and WFM is used for FM broadcast stations (76–107.9 MHz).
➥ Push [MODE SCAN] several times to select the desired
receive mode.
DUALWATCH MAIN/SUB POWER
MODE
VFO MODE MR
BAND
MHz SCAN S.MW
SCAN
DIAL.SEL SWEEP CENTER
1 2 3
SCOPE
T-SCAN SKIP M.N
4 5 6 0
AFC
TONE SET TS
7 8 9
LOCK
ATT RF GAIN IC Recorder
REC
146 010
FM mode
118 000
AM mode
76 000
WFM mode
FREQUENCY AND CHANNEL SETTING

I Lock function

To prevent accidental frequency changes and unnecessary
function access, use the lock function.
➥ Push [• LOCK] for 1 sec. to turn the lock function ON and
OFF.
• " " appears while the lock function is activated.
• [SQL] and [Y Y ]/[Z Z ] can be used while the lock function is in use
with default setting. Either or both [SQL] and [Y Y ]/[Z Z ] keys are
also be locked in set mode. (p. 49)
DUALWATCH MAIN/SUB POWER
VFO MODE MR
BAND
MHz SCAN S.MW
DIAL.SEL SWEEP CENTER
1 2 3
SCOPE
T-SCAN SKIP M.N
4 5 6 0
AFC
TONE SET TS
7 8 9
LOCK LOCK
ATT RF GAIN IC Recorder
REC
3
" " appears while the
lock function is in use.
146 010
√
