• Memory mode indication
146 100
001
√ µ
"µ " and memory channel
number appear.
• PreSet channel indication
76 000
√ 0
PreSet channel number appears.
• TV channel indication
2 ch
√ TV
"TV" indication appears.
• Weather channel indication
(USA version only)
1
√ WX
"WX" indication appears.
FREQUENCY AND CHANNEL SETTING

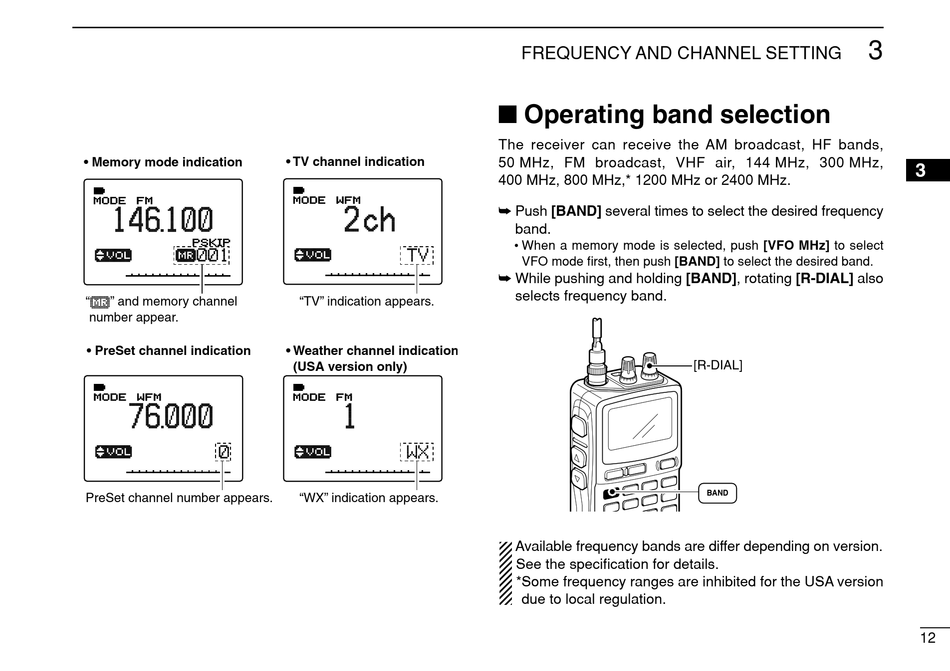

I Operating band selection

The receiver can receive the AM broadcast, HF bands,
50 MHz, FM broadcast, VHF air, 144 MHz, 300 MHz,
400 MHz, 800 MHz,* 1200 MHz or 2400 MHz.
➥ Push [BAND] several times to select the desired frequency
band.
• When a memory mode is selected, push [VFO MHz] to select
VFO mode first, then push [BAND] to select the desired band.
➥ While pushing and holding [BAND], rotating [R-DIAL] also
selects frequency band.
Available frequency bands are differ depending on version.
See the specification for details.
*Some frequency ranges are inhibited for the USA version
due to local regulation.
3
[R-DIAL]
BAND
3
12
