I Ic Recorder - Icom IC-R20 Instruction Manual

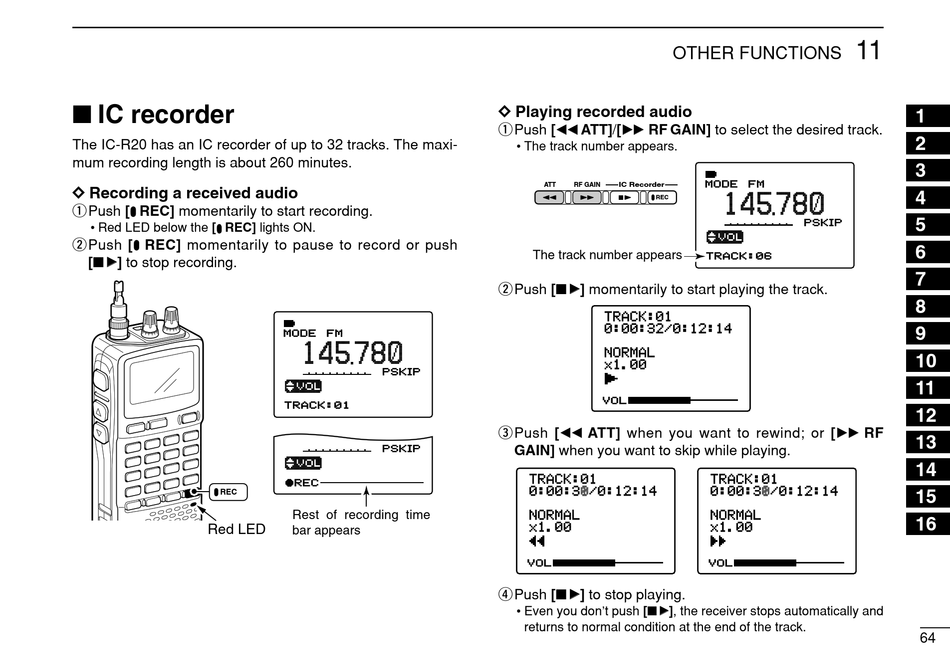

I IC recorder

The IC-R20 has an IC recorder of up to 32 tracks. The maxi-
mum recording length is about 260 minutes.
D D Recording a received audio
q Push [ REC] momentarily to start recording.
• Red LED below the [ REC] lights ON.
wPush [ REC] momentarily to pause to record or push
[I ] to stop recording.
≈ ≈
REC
Red LED
145 780
√
√
Rest of recording time
bar appears
OTHER FUNCTIONS
D D Playing recorded audio
qPush [
Ω Ω Ω Ω ATT]/[ ≈ ≈ ≈ ≈ RF GAIN] to select the desired track.
• The track number appears.
ATT RF GAIN IC Recorder
REC
The track number appears
wPush [I
] momentarily to start playing the track.
≈ ≈
ePush [
ATT] when you want to rewind; or [
Ω Ω Ω Ω
GAIN] when you want to skip while playing.
rPush [I
] to stop playing.
≈ ≈
• Even you don't push [I ], the receiver stops automatically and
≈ ≈
returns to normal condition at the end of the track.
11
145 780
√
RF
≈ ≈ ≈ ≈
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
64
