1
PANEL DESCRIPTION

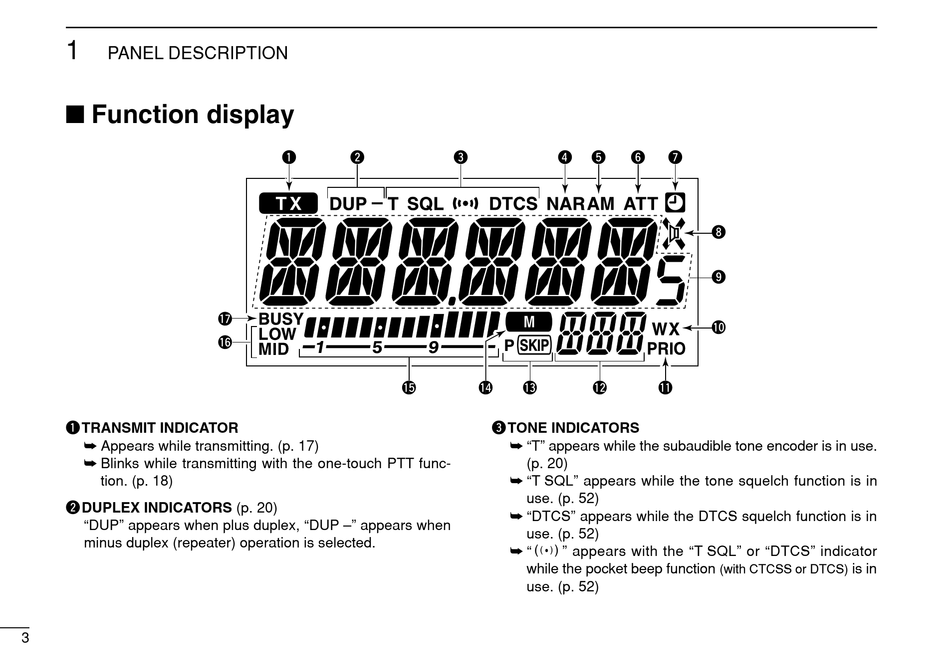

I Function display

q TRANSMIT INDICATOR
➥ Appears while transmitting. (p. 17)
➥ Blinks while transmitting with the one-touch PTT func-
tion. (p. 18)
w DUPLEX INDICATORS (p. 20)
"DUP" appears when plus duplex, "DUP –" appears when
minus duplex (repeater) operation is selected.
3
q w
!7
!6
e r
!5 !4 !3
e TONE INDICATORS
➥ "T" appears while the subaudible tone encoder is in use.
(p. 20)
➥ "T SQL" appears while the tone squelch function is in
use. (p. 52)
➥ "DTCS" appears while the DTCS squelch function is in
use. (p. 52)
➥ "S" appears with the "T SQL" or "DTCS" indicator
while the pocket beep function
use. (p. 52)
t y u
i
o
!0
!2 !1
(with CTCSS or DTCS)
is in
