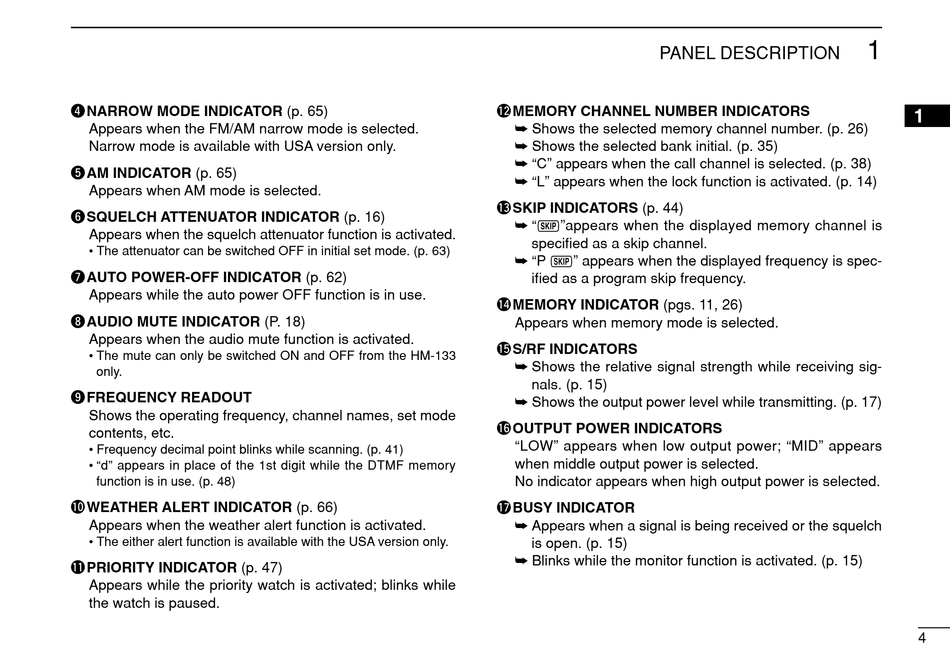

Icom IC-208H Instruction Manual page 19

r NARROW MODE INDICATOR (p. 65)
Appears when the FM/AM narrow mode is selected.
Narrow mode is available with USA version only.
t AM INDICATOR (p. 65)
Appears when AM mode is selected.
y SQUELCH ATTENUATOR INDICATOR (p. 16)
Appears when the squelch attenuator function is activated.
• The attenuator can be switched OFF in initial set mode. (p. 63)
u AUTO POWER-OFF INDICATOR (p. 62)
Appears while the auto power OFF function is in use.
i AUDIO MUTE INDICATOR (P. 18)
Appears when the audio mute function is activated.
• The mute can only be switched ON and OFF from the HM-133
only.
o FREQUENCY READOUT
Shows the operating frequency, channel names, set mode
contents, etc.
• Frequency decimal point blinks while scanning. (p. 41)
• "d" appears in place of the 1st digit while the DTMF memory
function is in use. (p. 48)
!0 WEATHER ALERT INDICATOR (p. 66)
Appears when the weather alert function is activated.
• The either alert function is available with the USA version only.
!1 PRIORITY INDICATOR (p. 47)
Appears while the priority watch is activated; blinks while
the watch is paused.
PANEL DESCRIPTION
!2 MEMORY CHANNEL NUMBER INDICATORS
➥ Shows the selected memory channel number. (p. 26)
➥ Shows the selected bank initial. (p. 35)
➥ "C" appears when the call channel is selected. (p. 38)
➥ "L" appears when the lock function is activated. (p. 14)
!3 SKIP INDICATORS (p. 44)
➥ "~"appears when the displayed memory channel is
specified as a skip channel.
➥ "P ~" appears when the displayed frequency is spec-
ified as a program skip frequency.
!4 MEMORY INDICATOR (pgs. 11, 26)
Appears when memory mode is selected.
!5 S/RF INDICATORS
➥ Shows the relative signal strength while receiving sig-
nals. (p. 15)
➥ Shows the output power level while transmitting. (p. 17)
!6 OUTPUT POWER INDICATORS
"LOW" appears when low output power; "MID" appears
when middle output power is selected.
No indicator appears when high output power is selected.
!7 BUSY INDICATOR
➥ Appears when a signal is being received or the squelch
is open. (p. 15)
➥ Blinks while the monitor function is activated. (p. 15)
