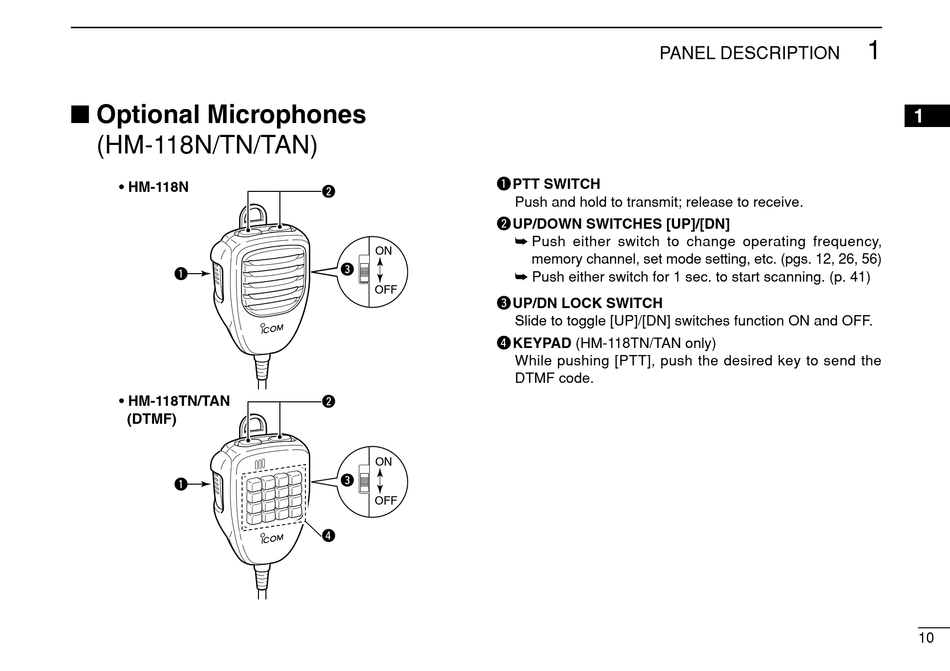

I Optional Microphones
(HM-118N/TN/TAN)
• HM-118N
q
• HM-118TN/TAN
(DTMF)
q
q PTT SWITCH
w
w UP/DOWN SWITCHES [UP]/[DN]
ON
e
OFF
e UP/DN LOCK SWITCH
r KEYPAD (HM-118TN/TAN only)
w
ON
e
OFF
r
PANEL DESCRIPTION
Push and hold to transmit; release to receive.
➥ Push either switch to change operating frequency,
memory channel, set mode setting, etc. (pgs. 12, 26, 56)
➥ Push either switch for 1 sec. to start scanning. (p. 41)
Slide to toggle [UP]/[DN] switches function ON and OFF.
While pushing [PTT], push the desired key to send the
DTMF code.
1
1
10
