I Initial Set Mode - Icom IC-208H Instruction Manual

11
OTHER FUNCTIONS

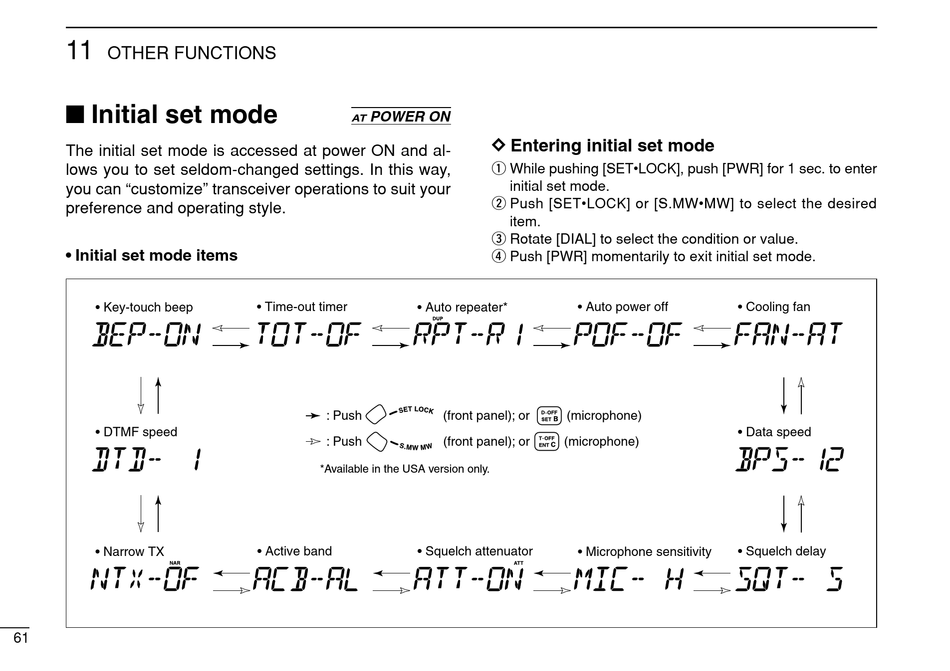

I Initial set mode

The initial set mode is accessed at power ON and al-
lows you to set seldom-changed settings. In this way,
you can "customize" transceiver operations to suit your
preference and operating style.
• Initial set mode items
• Key-touch beep
• DTMF speed
• Narrow TX
61
POWER ON
AT
• Time-out timer • Auto repeater*
: Push
: Push
*Available in the USA version only.
• Active band • Squelch attenuator
D D Entering initial set mode
q While pushing [SET•LOCK], push [PWR] for 1 sec. to enter
initial set mode.
w Push [SET•LOCK] or [S.MW•MW] to select the desired
item.
e Rotate [DIAL] to select the condition or value.
r Push [PWR] momentarily to exit initial set mode.
• Auto power off
(front panel); or (microphone)
(front panel); or (microphone)
• Microphone sensitivity
• Cooling fan
• Data speed
• Squelch delay
