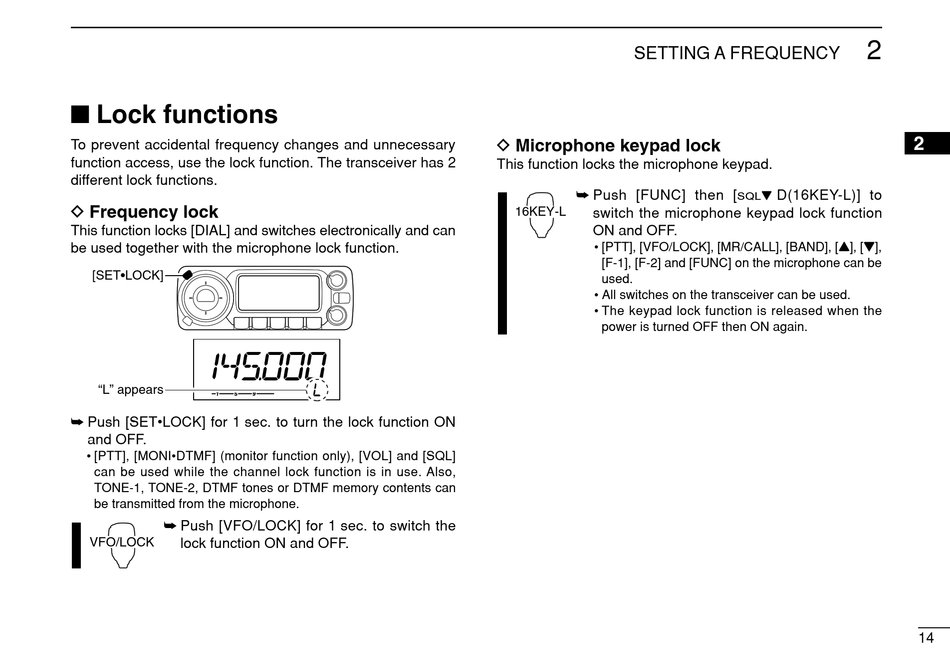

I Lock functions

To prevent accidental frequency changes and unnecessary
function access, use the lock function. The transceiver has 2
different lock functions.
D Frequency lock
This function locks [DIAL] and switches electronically and can
be used together with the microphone lock function.
[SET•LOCK]
"L" appears
➥ Push [SET•LOCK] for 1 sec. to turn the lock function ON
and OFF.
• [PTT], [MONI•DTMF] (monitor function only), [VOL] and [SQL]
can be used while the channel lock function is in use. Also,
TONE-1, TONE-2, DTMF tones or DTMF memory contents can
be transmitted from the microphone.
➥ Push [VFO/LOCK] for 1 sec. to switch the
VFO/LOCK lock function ON and OFF.
SETTING A FREQUENCY
D Microphone keypad lock
This function locks the microphone keypad.
➥ Push [FUNC] then [
16KEY-L switch the microphone keypad lock function
ON and OFF.
• [PTT], [VFO/LOCK], [MR/CALL], [BAND], [Y], [Z],
[F-1], [F-2] and [FUNC] on the microphone can be
used.
• All switches on the transceiver can be used.
• The keypad lock function is released when the
power is turned OFF then ON again.
2
2
D(16KEY-L)] to
Z
SQL
14
