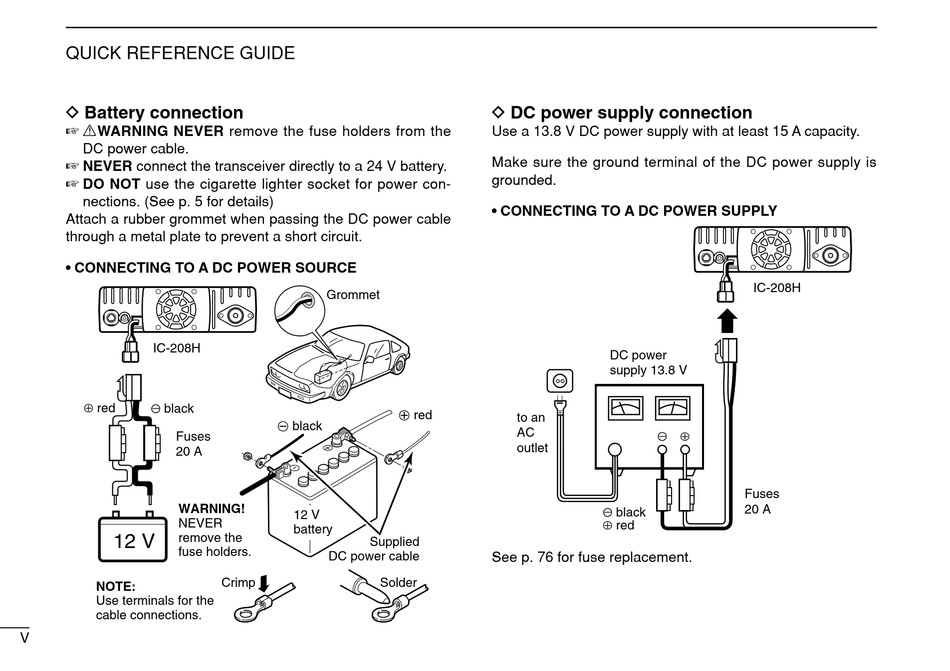

QUICK REFERENCE GUIDE
D Battery connection
RWARNING NEVER remove the fuse holders from the
DC power cable.
NEVER connect the transceiver directly to a 24 V battery.
DO NOT use the cigarette lighter socket for power con-
nections. (See p. 5 for details)
Attach a rubber grommet when passing the DC power cable
through a metal plate to prevent a short circuit.

• CONNECTING TO A DC POWER SOURCE

IC-208H
⊕ −
red black
Fuses
20 A
WARNING!
NEVER
remove the
12 V
fuse holders.
NOTE:
Use terminals for the
cable connections.
V
Grommet
+ red
_ black
12 V
battery
Supplied
DC power cable
Crimp Solder
D DC power supply connection
Use a 13.8 V DC power supply with at least 15 A capacity.
Make sure the ground terminal of the DC power supply is
grounded.

• CONNECTING TO A DC POWER SUPPLY

DC power
supply 13.8 V
to an
−
AC
outlet
−
black
⊕
red
See p. 76 for fuse replacement.
IC-208H
⊕
Fuses
20 A
