WALL MOUNTING INSTRUCTIONS:

Remove up the remote handset from the base.
2.
Turn the phone upside down so the underside of the phone faces you.
3.
Press down and out on the two tabs located on top of the wall/desk adapter and remove.
4.
Rotate the wall/desk adapter a half turn and snap it into the wall mount position as shown below.
5.
If mounting over a telephone wall jack, plug the supplied short 7 inch length telephone cord into
the LI/L2 jack on the telephone. Thread the
the phone.
6.
If wall mounting using screws, plug the supplied 7 foot long telephone cord into the L
the telephone/
7.
Connect the telephone line cord to the wall telephone outlet.
8.
Slip the telephone base onto the wall, lining up the wall mounting holes over the wall jack plate
posts or screws. Slide the telephone base down so the it is firmly in place.
9.
Return the remote handset to the telephone base.
IO. Insert the AC adapter cord into the ADAPTER jack on the top of the phone.
I I. Plug the other end of the AC adapter into the wall AC (electrical) outlet.
Plug the second supplied 7 foot ' long telephone line cord into the

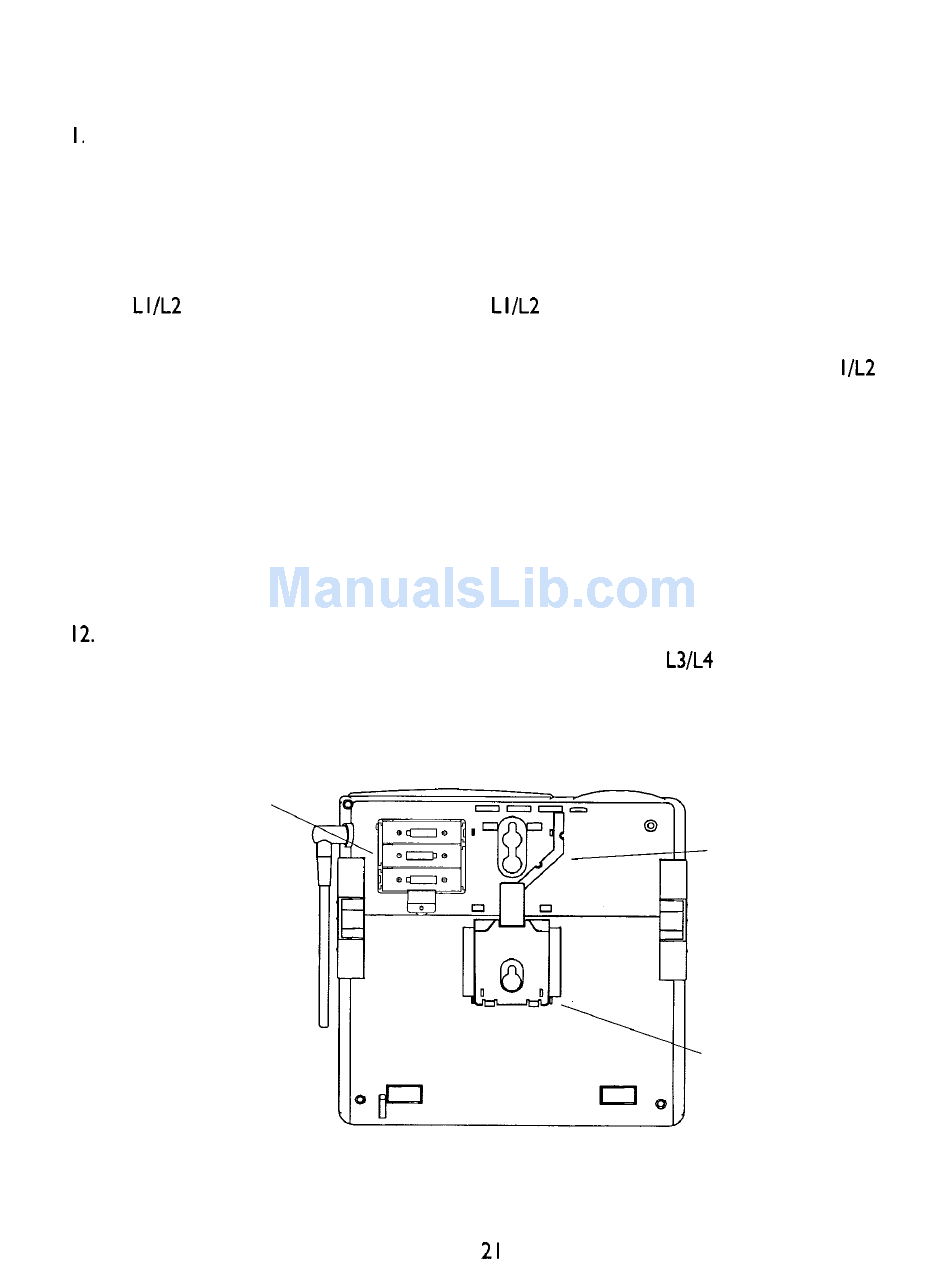

Model IBM-4900 Bottom View
BATTERY COMPARTMENT
S H O W N W I T H T H E D O O R
R E M O V E D
SMARTHOME.COM™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com
R E C E S S F O R S H O R T
T E L E P H O N E C O R D
W ALL MOUNTING/DESK
A D A P T E R S H O W N I N W A L L
M O U N T I N G P O S I T I O N
Order #5125C
