CIO-DIO48H User's Guide

Cabling

2
1
50
49
50-pin Female
IDC Connector

Field wiring, signal termination, and conditioning

You can use the following cabling, screw termination, and signal conditioning products with the CIO-DIO48H.
CIO-TERM100 – 100-pin screw terminal board (daisy-chained 50-pin IDC connectors). Details on this
product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=281.
CIO-SPADE50 – 16" X 4" termination panel which mates with both 37-pin and 50-pin connectors. Details
on this product are available on our web site at www.mccdaq.com/pdfs/screw.pdf.
CIO-MINI50 – 50-pin screw terminal board. Details on this product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=258.
SSR-RACK24 – 24-channel, solid-state relay mounting rack for digital signal conditioning. Details on this
product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=122&pf_id=1193.
SSR-RACK48 – 48-channel, solid-state relay mounting rack with quad-format modules. Details on this
product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=122&pf_id=622.
CIO-ERB24 – 24 Form C relays, 6 Amp relay accessory board for digital signal conditioning. Details on
this product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=123&pf_id=241.
CIO-ERB48 – 48 Form C relays, 6 Amp, relay, 50-pin accessory board for digital signal conditioning.
Details on this product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=123&pf_id=242.
Information on signal connections
General information regarding signal connection and configuration is available in the Guide to Signal
Connections. This document is available on our web site at www.mccdaq.com/signals/signals.pdf.

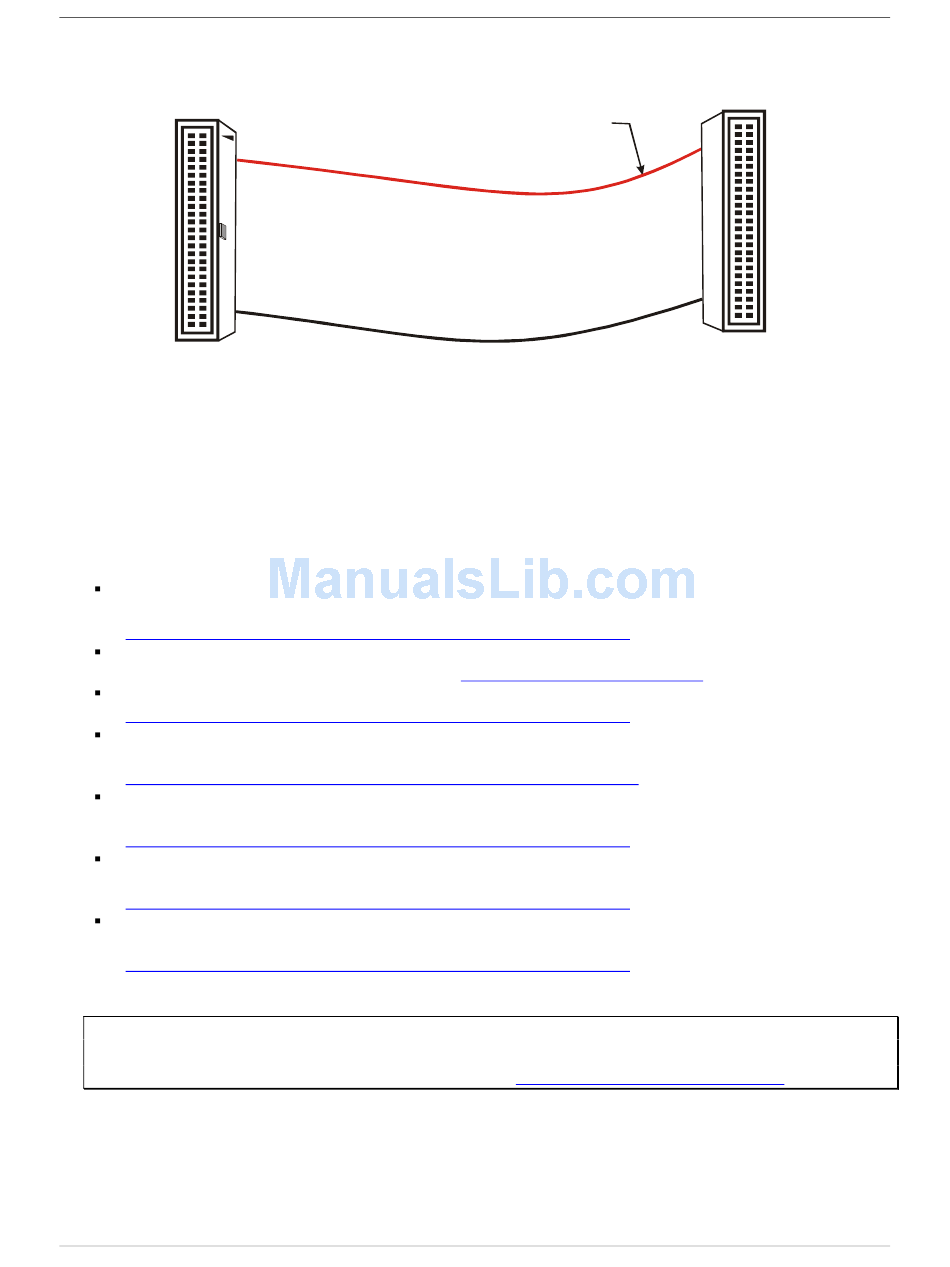

The red stripe
identifies pin # 1
Figure 3. C50FF-x cable
12
Installing the CIO-DIO48H
2 1
50 49
50-pin Female
IDC connector
